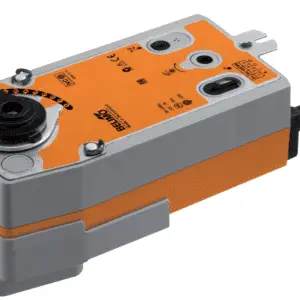

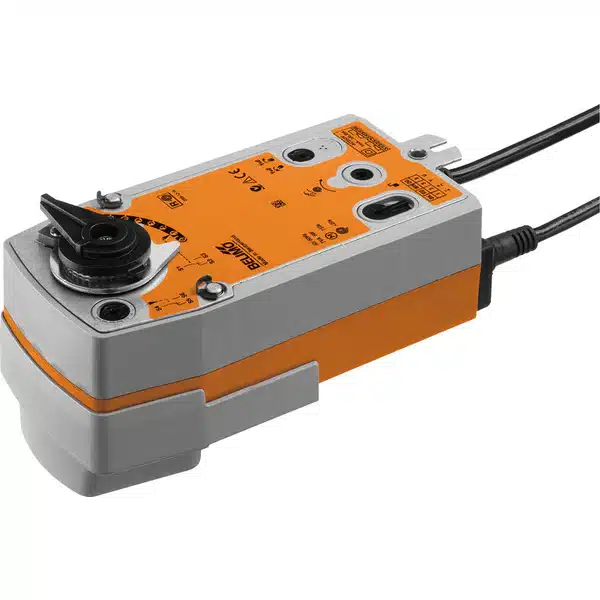

10 Nm 24V 0-10Vdc Modulating Spring Return – NRF24A-SR(S3)
£263.00
10Nm Actuator for use with Ball Valves 20mm-32mm (Ending S3).
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
10Nm Actuator for use with Ball Valves 20mm-32mm (Ending S3).
Specification
Nominal Voltage:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â AC/DC 24V
Nominal Voltage Frequency:Â Â Â Â Â Â Â Â Â Â Â Â Â Â 50/60Hz
Nominal Voltage Range:                  AC 19.2…28.8V / DC 21.6…28.8V
Power Consumption in Operation:Â Â Â Â Â Â Â Â Â 3.5W
Power Consumption in Rest Position:Â Â Â Â Â Â 2.5W
Power Consumption for Wire Sizing:Â Â Â Â Â Â Â 6VA
Connection Supply/Control:              Cable 1m, 4 x 0.75mm²
Parallel Operation:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Yes
NRF24A-SR_datasheet_en-gb-1
Additional information
| Cable Length | 10 Meters, 15 Meters, 5 Meters |
|---|
