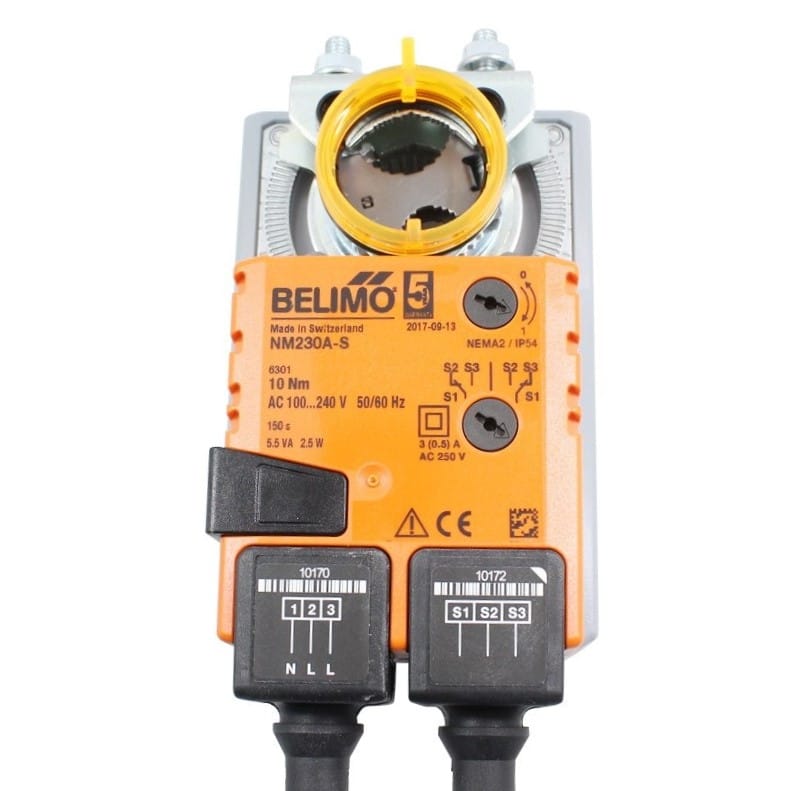

10Nm Actuator 230Vac/dc Open/Close with Aux Switch NM230A-S
£148.00
Damper actuator for opening air control dampers in ventilation and air-conditioning systems for building services installations with auxiliary switch
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
Description
Damper actuator for opening air control dampers in ventilation and air-conditioning systems for building services installations with auxiliary switch
Specification
Nominal Voltage: AC 100…240V, 50/60Hz
Nominal Voltage Frequency: 50/60Hz
Nominal Voltage Range: AC 85… 265V
Power Consumption
In operation: 2.5W @ nominal torque
At rest: 0.6W
For wire sizing: 5.5VA
Auxiliary Switch: 1 x SPDT, 0…100%
Switching Capacity Auxiliary Switch: 1mA…3 (0.5 inductive) A, AC 250V
Connection Supply/Control: Cable 1m, 3 x 0.75mm²
Connection Auxiliary Switch: Cable 1m, 3 x 0.75mm²
Parallel Operation: Yes
Additional information
| Cable Length |
10 Meters, 15 Meters, 5 Meters |
|---|
