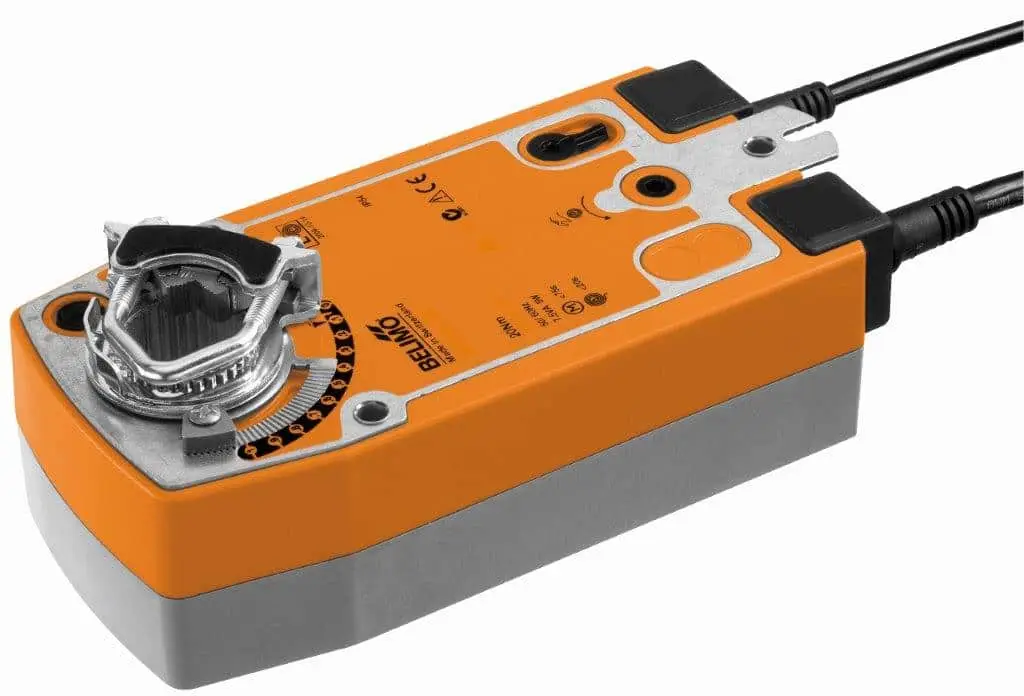

10Nm Actuator 24Vac-230Vac/dc Spring Return with Two Aux Switches NFA-S2
£267.00
Spring-return actuator with emergency function for adjusting air dampers in ventilation and air conditioning systems in buildings.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
Description
Spring-return actuator with emergency function for adjusting air dampers in ventilation and air conditioning systems in buildings.
Specification
Nominal Voltage: AC 24…240V / DC 24…125V
Nominal Voltage Frequency: 50/60Hz
Nominal Voltage Range: AC 19.2…264V / DC 21.6…137.5V
Power Consumption…
In operation: 6W
At rest: 2.5W
For wire sizing: 9.5VA
Auxiliary Switch: 2 x SPDT, 1 x 10% / 1 x 11…90%
Switching Capacity Auxiliary Switch: 1mA…3 (0.5 inductive) A, AC 250V
Connection Supply/Control: Cable 1m, 2 x 0.75mm²
Connection Auxiliary Switch: Cable 1m, 6 x 0.75mm²
Parallel Operation: Yes
Additional information
| Cable Length |
10 Meters, 15 Meters, 5 Meters |
|---|
