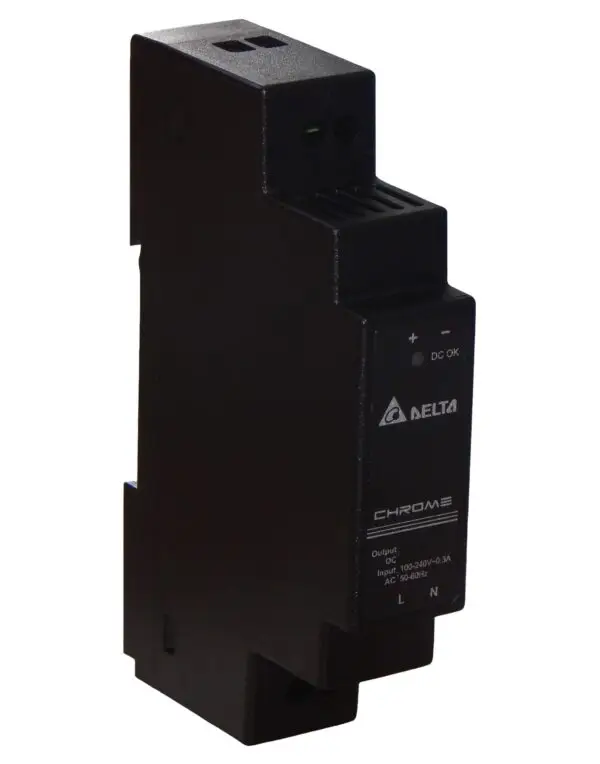

12Vdc 10W Switch Mode Power Supply
£25.00
The DR10-12 is a 12Vdc 10W Switch Mode Power Supply, ideal for applications where space is critical and only low DC power is needed, with a visual indication of input voltage and supply on. Fitted with an internal replaceable input fuse and auto-recovery short circuit protection.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
The DR10-12 is a 12Vdc 10W Switch Mode Power Supply, ideal for applications where space is critical and only low DC power is needed, with a visual indication of input voltage and supply on. Fitted with an internal replaceable input fuse and auto-recovery short circuit protection.
Specification
Nominal Output Voltage Uɴ / Tolerance: 12Vdc ± 2%
Nominal Current: 0.83A
Startup with Capacitive Loads: Max. 3,000µF
Max. Power Dissipation Idling /
Nominal Load Approx.: 2W
Efficiency:> 80.0% @ 115Vac & 230Vac
Additional information
| Weight | 0.10 kg |
|---|---|
| Dimensions | 8 × 6 × 6 cm |
| Select Voltage |
20-110Vac, 8-120Vdc, 80-500Vac |
