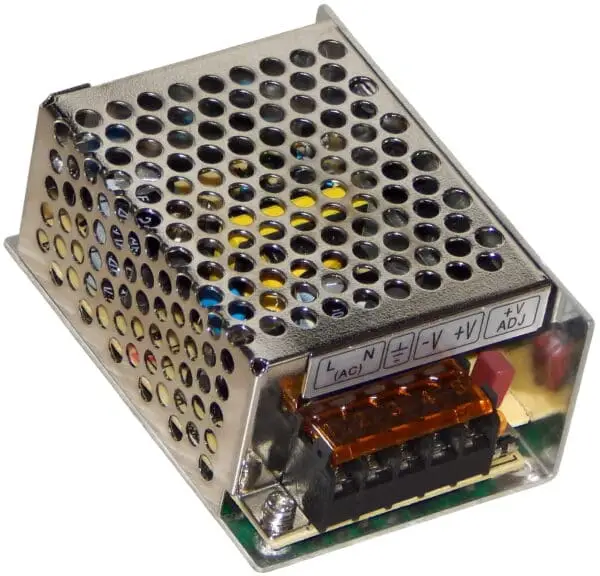

15Vdc 15W Switch Mode Power Supply
£8.00
Switch-Mode Chassis-Mount 15 Vdc 15 Watt Power Supply with adjustable output.
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
Switch-Mode Chassis-Mount 15 Vdc 15 Watt Power Supply with adjustable output.
Specification
DC Output Voltage:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 15V
Rated Output Current:Â Â Â Â Â Â Â Â Â Â Â Â Â 1A
Output Current Range:              0 – 1A
Wave and Noise:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 75mVp-p
Inlet Stability:                       ±0.5%
Load Stability:                       ±0.5%
Efficiency:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 70%
Adjustable Range for DC Voltage:  ±10%
AC Input Voltage Range:Â Â Â Â Â Â Â Â Â Â Â Â Â AC100~240V 47~63Hz;240~370VDC
Input Current:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 0.5A/115V0 25A/230V
AC Inrush Current:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Cold-start current 15A/115V 30A/230V
Working Temperature:-10ËšC ~ +50ËšC
Additional information
| Weight | 0.11 kg |
|---|---|
| Dimensions | 26 × 20 × 16 cm |
| Select Voltage | 20-110Vac, 8-120Vdc, 80-500Vac |
