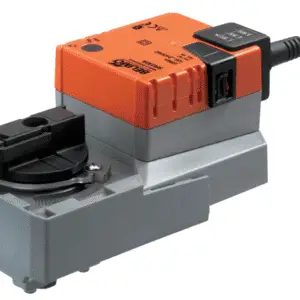

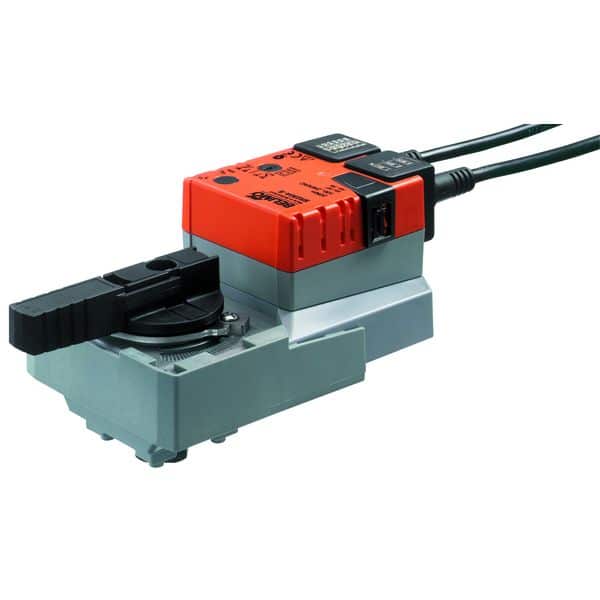

Ball Valve Actuator, Belimo
20 Nm 230V On-Off 3 Point – SR230A(S4)
£157.00
Rotary Actuator for use with Belimo Control Ball Valves 20mm-50mm (Ending S4).
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
Description
Rotary Actuator for use with Belimo Control Ball Valves 20mm-50mm (Ending S4).
Specification
Nominal Voltage: AC 230V
Nominal Voltage Frequency: 50/60Hz
Nominal Voltage Range: AC 85…265V
Power Consumption in Operation: 3W
Power Consumption in Rest Position: 0.6W
Power Consumption for Wire Sizing: 7VA
Connection Supply/Control: Cable 1m, 3 x 0.75mm²
Parallel Operation: Yes
Additional information
| Cable Length |
10 Meters, 15 Meters, 5 Meters |
|---|
