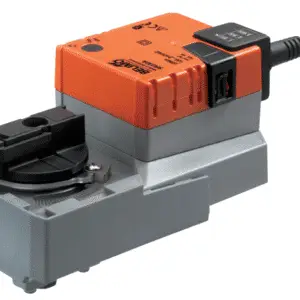

20Nm Actuator 24Vac/dc Open-Close & 3 Point – SR24A-5
£206.00
20Nm Actuator for use with Belimo Butterfly Valves 25mm-100mm.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
20Nm Actuator for use with Belimo Butterfly Valves 25mm-100mm.
Specification
Nominal Voltage: AC/DC 24V
Nominal Voltage Frequency: 50/60Hz
Nominal Voltage Range: AC 19.2…28.8V / DC 19.2…28.8V
Power Consumption
In operation: 2.5W
At rest: 0.2W
For wire sizing: 5.5VA
Connection Supply/Control: Cable 1m, 3 x 0.75mm²
Parallel Operation: Yes
Additional information
| Cable Length |
10 Meters, 15 Meters, 5 Meters |
|---|
