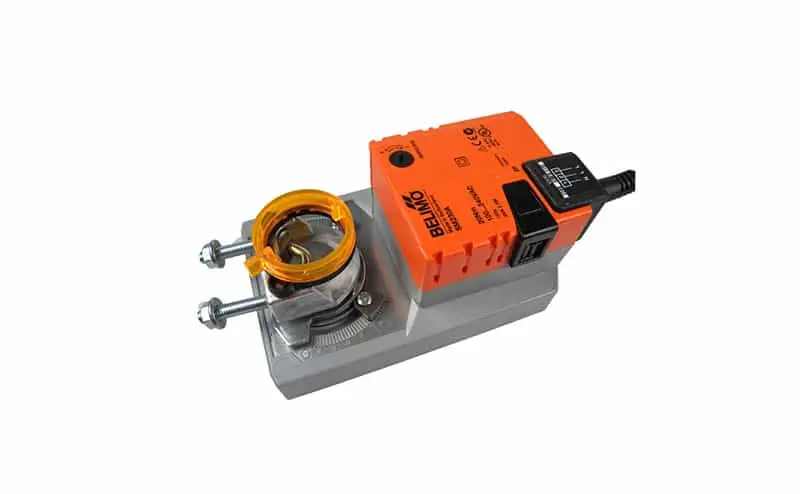

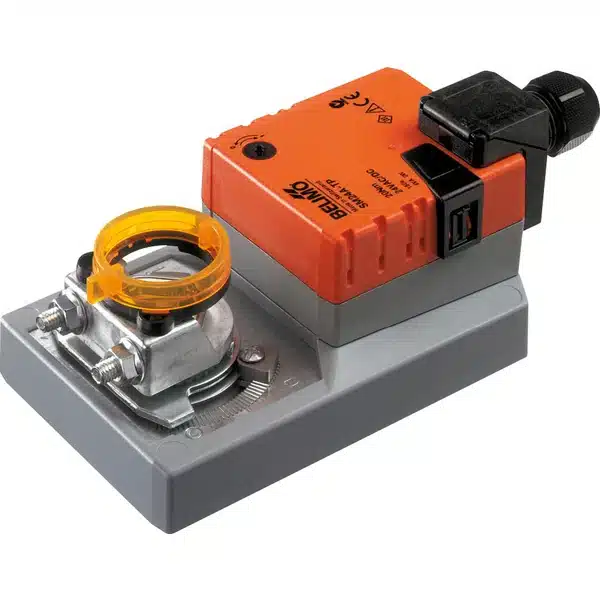

20Nm Actuator 24Vac/dc Open/Close SM24A
£167.00
Damper actuator for opening air control dampers in ventilation and air-conditioning systems for building services installations.
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
Damper actuator for opening air control dampers in ventilation and air-conditioning systems for building services installations.
Specification
Nominal Voltage:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â AC 24V, 50/60Hz / DC 24V
Nominal Voltage Range:                       AC/DC 19.2…28.8V
Power Consumption…
In operation:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 1.5W @ nominal torque
At rest:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 0.2W
For wire sizing:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 4VA
Connection:                                      Cable 1m, 3 x 0.75mm²
Additional information
| Cable Length | 10 Meters, 15 Meters, 5 Meters |
|---|
