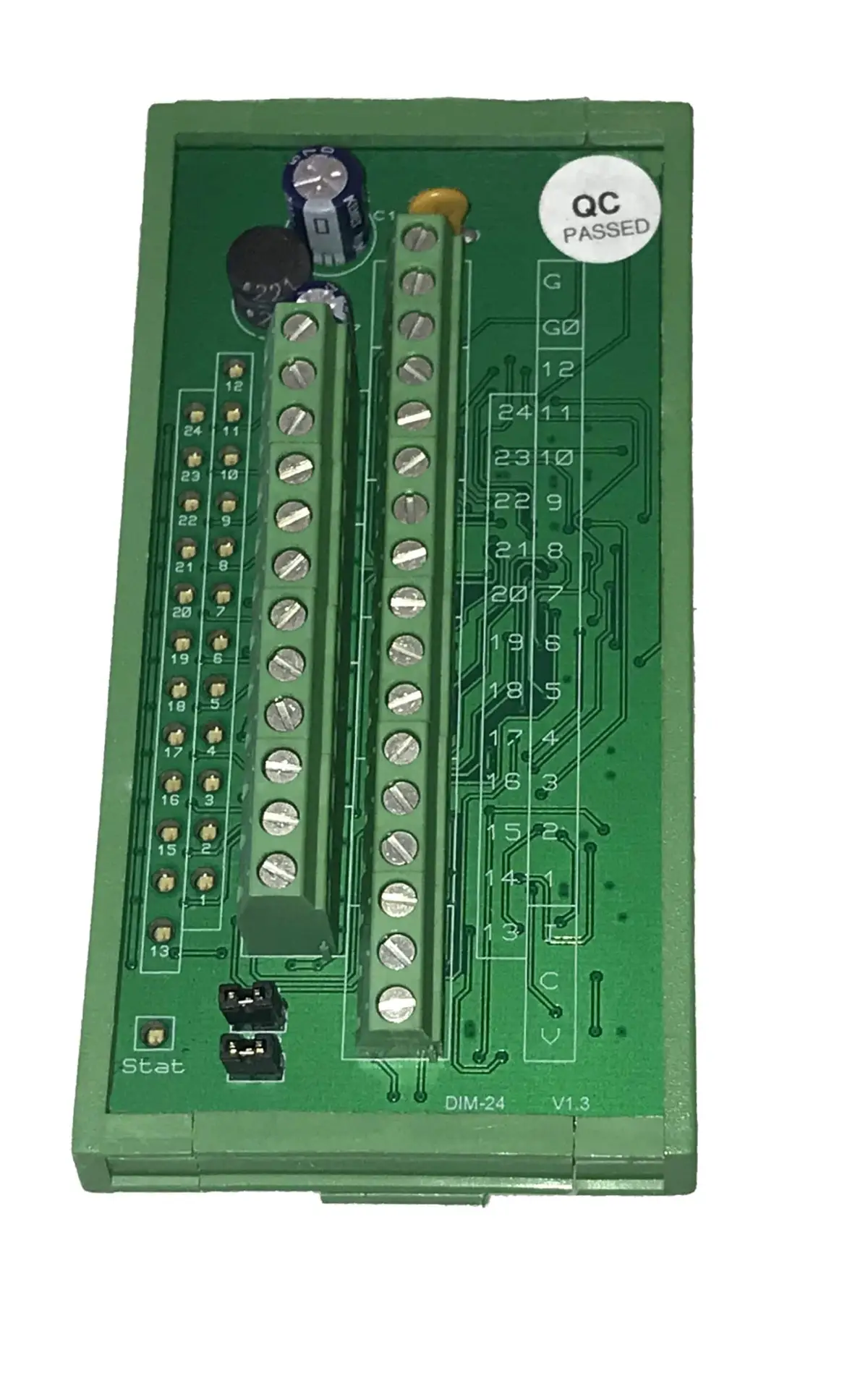

24 Channel Digital Input Multiplexer – VFC input

The IOD24 module was designed to provide a cost-effective, efficient way to handle a large volume of digital input to a Building Management System (BMS).
24 Digital Inputs are multiplexed to provide a single analogue output (0-10V or 4-20mA), which is compatible with most open-standard BMS controllers on the market.

A Four Channel Digital Multiplexer is £23 each; you get 24 channels for £95, which works out to £15.83 per 4 channels and also saves panel space and controller IO proxy points.
A Six Channel Digital Multiplexer is £65 each; you get 24 channels for £95, which works out to £23.75 per 6 channels and also saves panel space and controller IO proxy points.
We would recommend using the 24 digital Input Multiplexer or any Multiplexer for runs, faults, and flows, but NOT to use for any life safety items due to a few seconds’ delay.

Specification

Input:                                                 24 Volt free
Output:                                              0-10V DC / 4-20mA
Supply:                                              24V AC/DC
LED Indication:                                 For each Input
Operation Temperature:                   -10 to +40°C

IOD24
