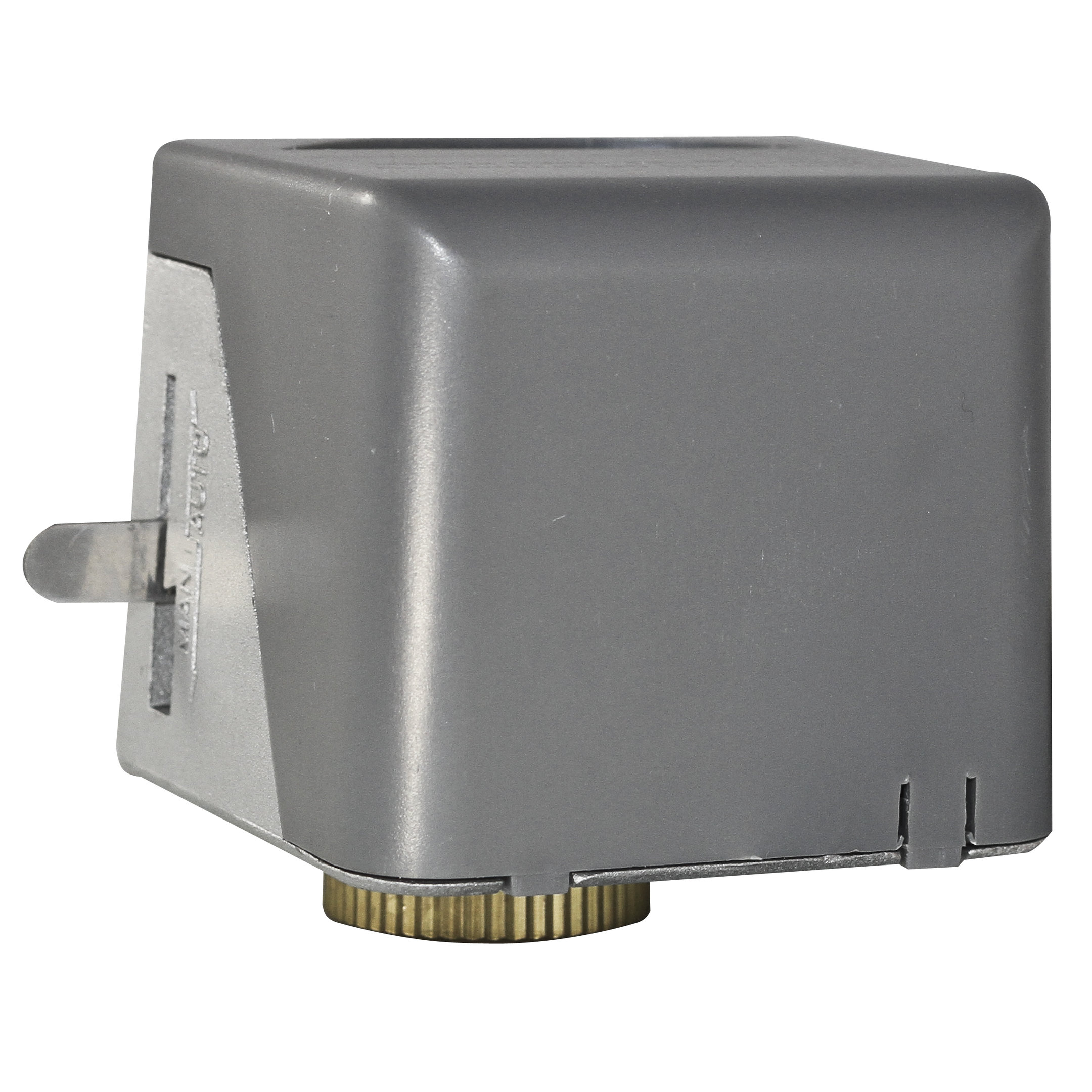

24Vac Actuator with Switches
£49.35
On-off control of heat or cool water flow. Coupling between the synchronous motor and the body valve with a ring nut. The synchronous motor opens the valve (normally closed) according to the command signal of a thermostat; at the signal interruption, a spring positions the valve to the closed position.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
Synchronous motor with auxiliary switch.
On-off control of heat or cool water flow.

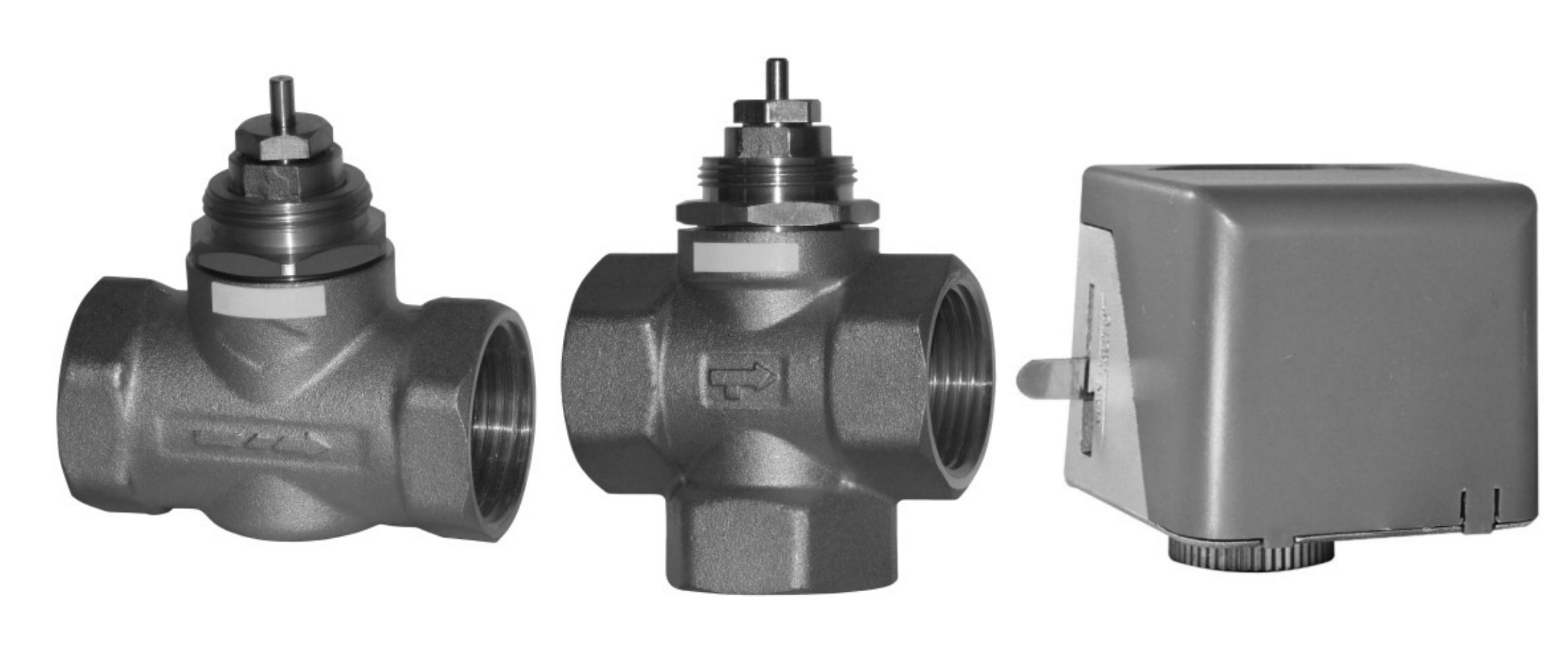

Coupling between the synchronous motor and the body valve with a ring nut.
The synchronous motor opens the valve (normally closed) according to the command signal of a thermostat; at the signal interruption, a spring positions the valve to the closed position.

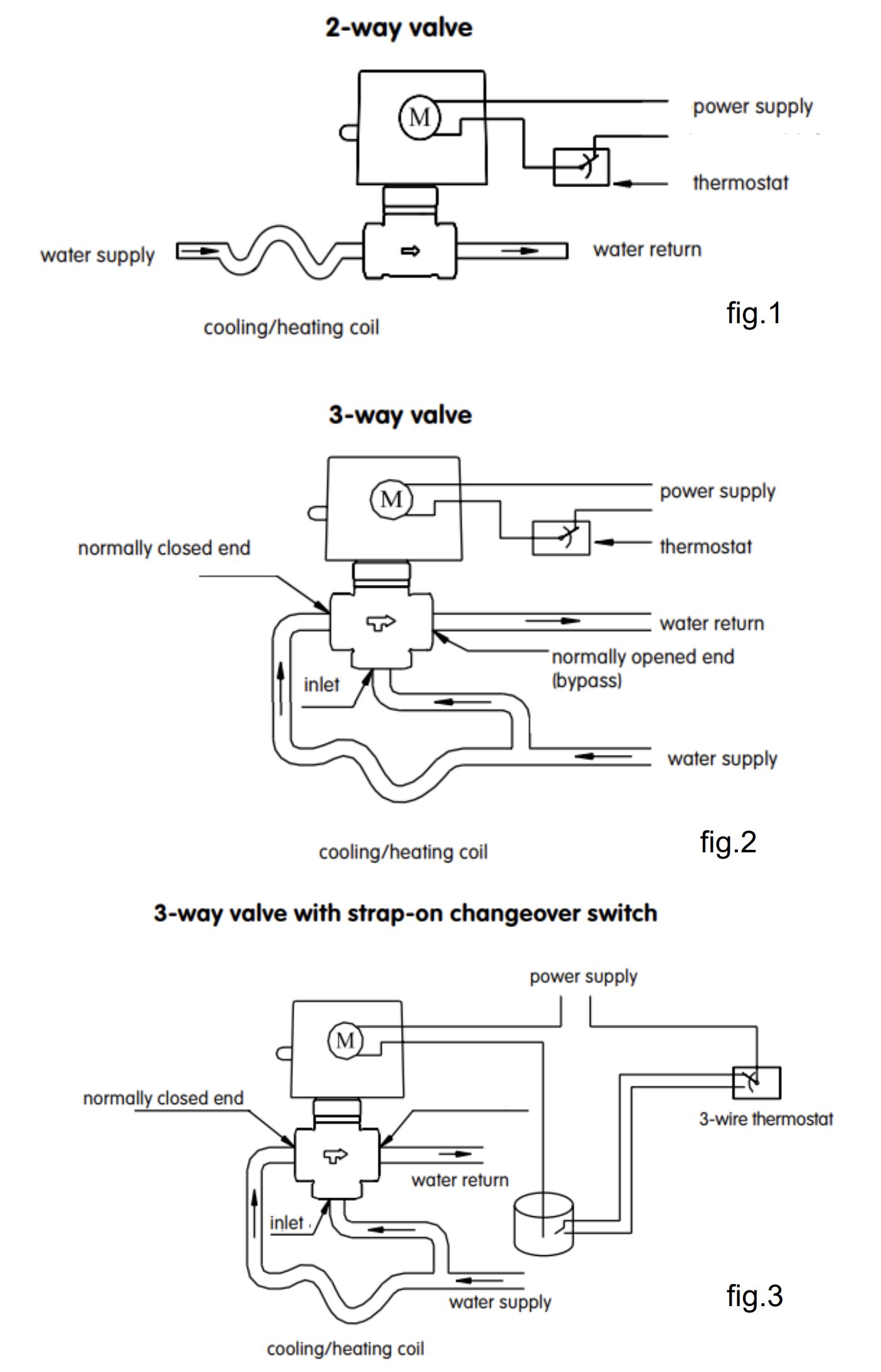

– 2-way valves: the plug closes against the flow;
– 3-way valves: the plug blocks the flow toward the user side.
Specification
Power Supply: 24Vac ± 10% 50/60Hz
Max. Electrical Load: 3A, 125…250Vac
Power Consumption: 7VA
Working Temperature: +0…+60˚C
Working Humidity: 10…90% RH (without condensing)
Material: Plate: casting aluminium alloyed Cover: fire-proof ABS
Protection: IP20, class II
Additional information
| Weight | 0.6 kg |
|---|
