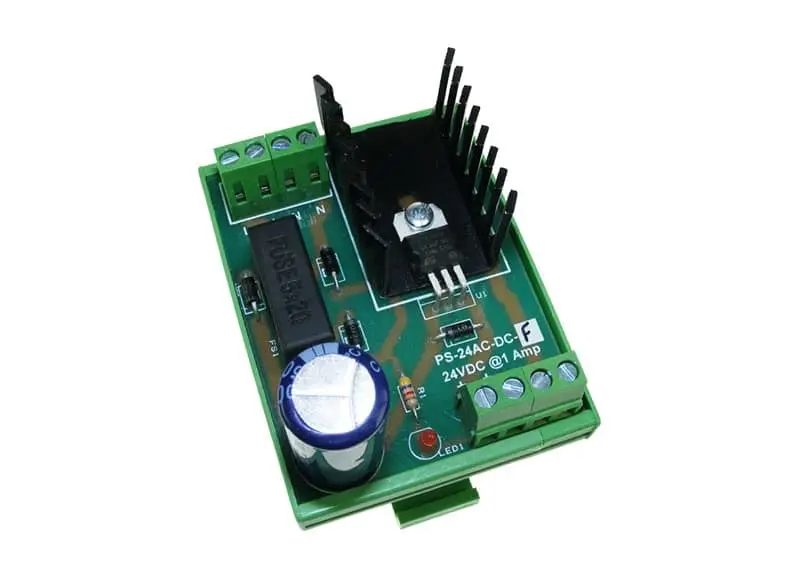

24Vac to 24Vdc @ 1A power supply (common 0V)
£45.00
This module converts a 24Vac power supply into a regulated 1A 24Vdc output. The unit is DIN rail-mounted and is available with a floating or earthed output.
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
This module is used to convert a 24Vac power supply into a regulated 1A 24Vdc output. The unit is DIN rail mounted and is available with a floating or earthed output.
Specification
Input Supply:                    24Vac ± 15%
Output Supply:         24Vdc ± 10% @ 1A
Output Fuse:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 1A
LED Indication:Â Â Â Â Â Â Â Â Â Power ON
Terminals:               Rising clamp 0.5 – 2.5mm² cable.
Ambient:                0˚C to +50˚C, 0 – 80% RH non-condensing
Dimensions:Â Â Â Â Â Â Â Â Â Â Â Â Â 76(H) x 57(W) x 62mm approx.
Additional information
| Weight | 0.15 kg |
|---|---|
| Dimensions | 8 × 6 × 6 cm |
| Size | 25VA, 50VA, 100VA, 150VA, 250VA |
