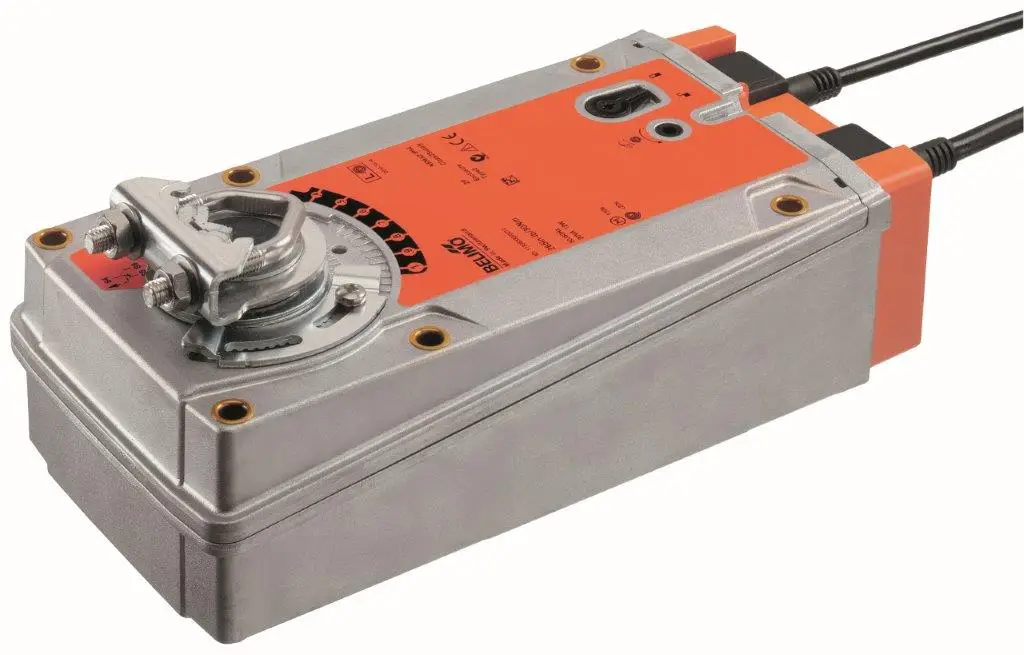

30Nm Actuator 230Vac Spring Return Spring Return with Two Aux Switches EF230A-S2
£594.00
Spring-return actuator with emergency function for adjusting air dampers in ventilation and air conditioning systems in buildings.
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
Spring-return actuator with emergency function for adjusting air dampers in ventilation and air conditioning systems in buildings.
Specification
Nominal Voltage:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â AC 90-264V
Nominal Voltage Frequency:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 50/60Hz
Power Consumption…
In operation:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 9W
At rest:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 4.5W
For wire sizing:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 21VA
Auxiliary Switch:                                 2 x SPDT, 1 x 10% / 1 x 11…90%
Switching Capacity Auxiliary Switch:          1mA…3 (0.5 inductive) A, AC 250V
Connection Supply/Control:                                       Cable 1m, 2 x 0.75mm²
Connection Auxiliary Switch:                   Cable 1m, 6 x 0.75mm²
Parallel Operation:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Yes
belimo_EF230A-S2_datasheet_en-gb
Additional information
| Cable Length | 10 Meters, 15 Meters, 5 Meters |
|---|
