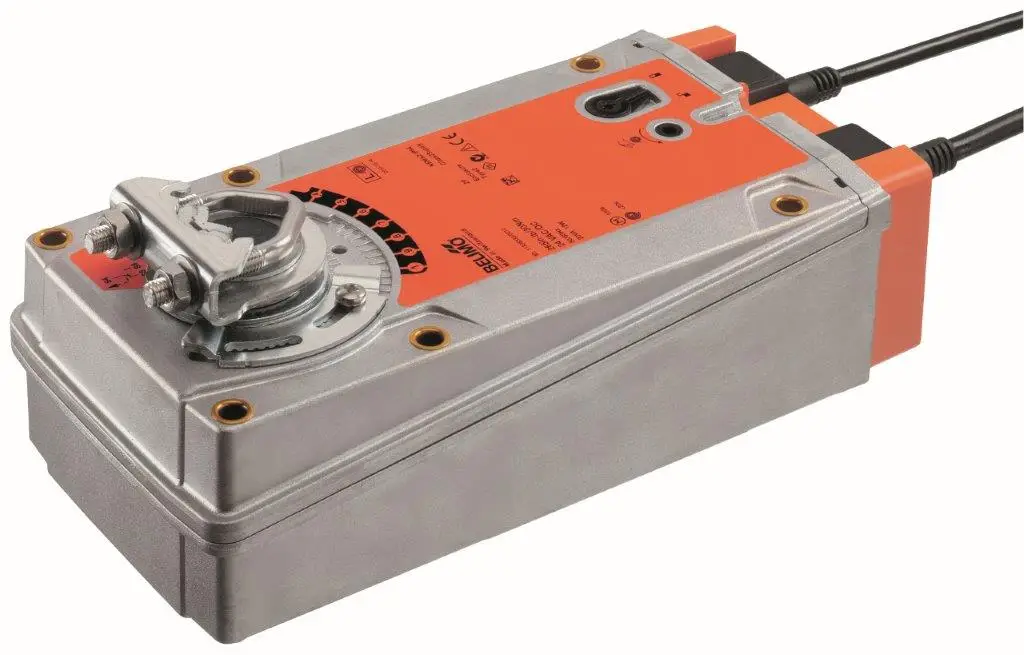

30Nm Actuator 24Vac Spring Return with Two Aux Switches EF24A-S2
£493.00
Spring-return actuator with emergency function for adjusting air dampers in ventilation and air conditioning systems in buildings.
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
Spring-return actuator with emergency function for adjusting air dampers in ventilation and air conditioning systems in buildings.
Specification
Nominal Voltage:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â AC 24V, 50/60Hz / DC 24V
Nominal Voltage Range:                       AC 19.2…28.8V / DC 21.6…28.8V
Power Consumption
In operation:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 9.5W @ nominal torque
At rest:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 4.5W
For wire sizing:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 16VA
Auxiliary Switch:                                2 x SPDT, 1mA …3 (0.5) A, AC
250V (1 x fix 10% / 1 x adjustable 10…90%)
Connection…
Motor:                                         Cable 1m, 2 x 0.75mm²
Auxiliary Switch:                                Cable 1m, 6 x 0.75mm²
Additional information
| Cable Length | 10 Meters, 15 Meters, 5 Meters |
|---|
