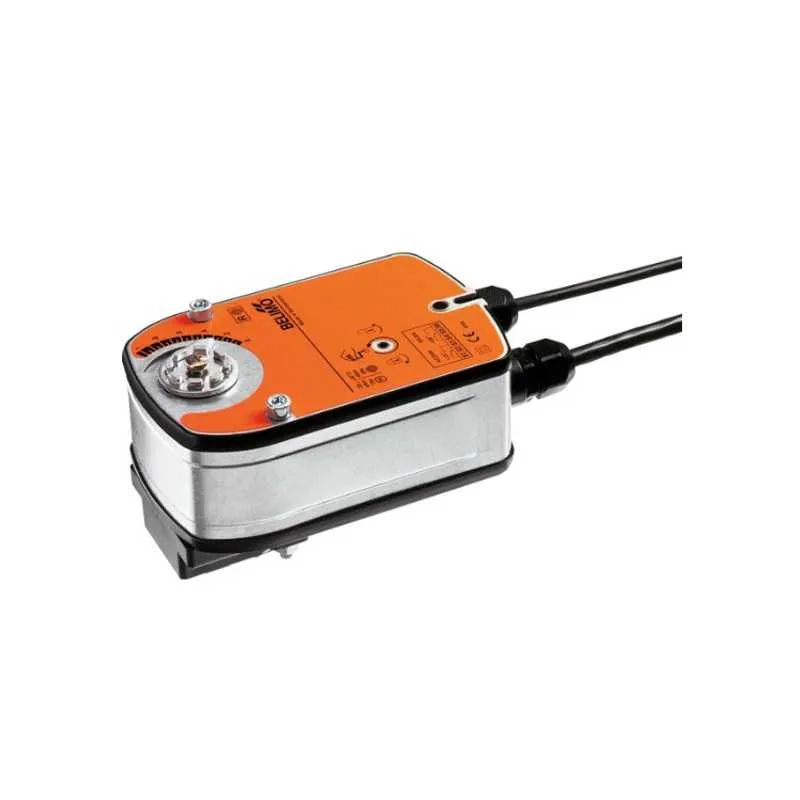

4 Nm 0-10Vdc 24V Spring Return Modulating – LRF24-SR(S2)
£230.00
4 Nm Rotary Actuator for use with Belimo Control Ball Valves (Ending S2) from 15mm to 25mm.
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
4 Nm Rotary Actuator for use with Belimo Control Ball Valves (Ending S2) from 15mm to 25mm.
Specification
Nominal Voltage:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â AC/DC 24V
Nominal Voltage Frequency:Â Â Â Â Â Â Â Â Â 50/60Hz
Nominal Voltage Range:            AC 19.2… 28.8V / DC 21.6… 28.8V
Power Consumption for
Spring lift:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 2.5W @ nominal torque
Holding position:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 1W
For wire sizing:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 5VA (lmax. 5.8 A @ 5ms)
Connection:                      Cable 1m, 4 x 0.75mm²
Parallel Operation:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Yes
Additional information
| Cable Length | 10 Meters, 15 Meters, 5 Meters |
|---|
