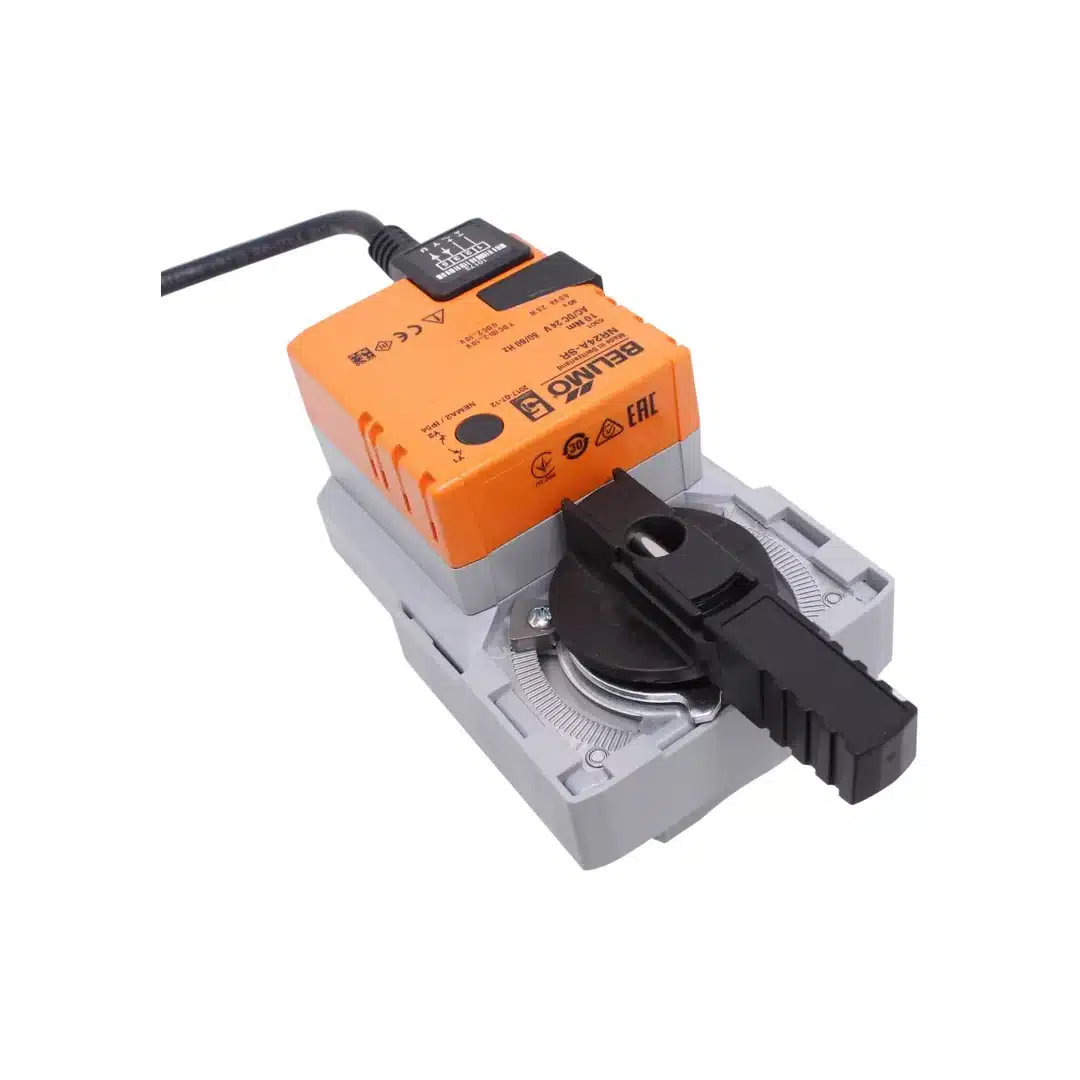

40Nm Actuator 24Vac/dc Open-Close – GR24A-5
£305.00
40Nm Actuator for use with Belimo Butterfly Valves 25mm-100mm.
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
- No-Risk Money Back Guarantee!
- No Hassle Refunds
- Secure Payments
Description
Description
40Nm Actuator for use with Belimo Butterfly Valves 25mm-100mm.
Specification
Nominal Voltage:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â AC/DC 24V
Nominal Voltage Frequency:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 50/60Hz
Nominal Voltage Range:                       AC 19.2…28.8V / DC 19.2…28.8V
Power Consumption…
In operation:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 4W
At rest:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 2W
For wire sizing:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 6VA
Connection Supply/Control:                    Cable 1m, 3 x 0.75mm²
Parallel Operation:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Yes
Additional information
| Cable Length | 10 Meters, 15 Meters, 5 Meters |
|---|
