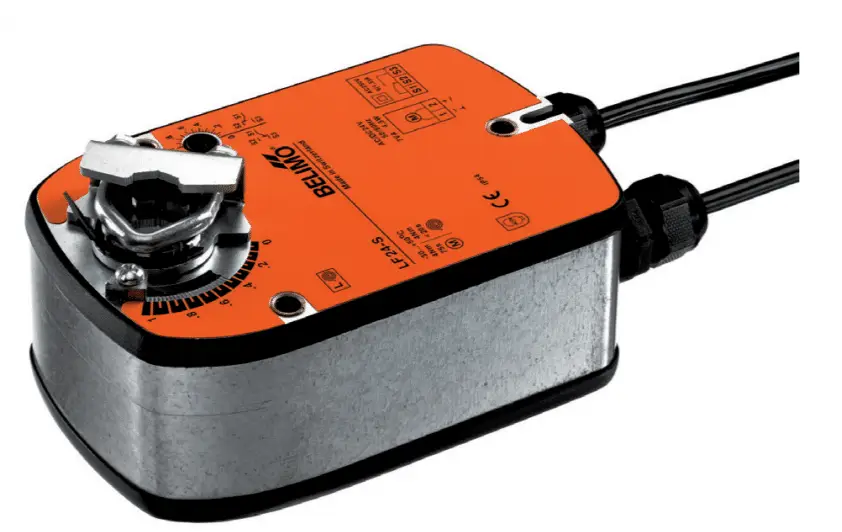

4Nm Actuator 24Vac/dc Spring Return with Auxiliary Switch LF24-S
£236.00 Exc. VAT
Spring-return actuator with emergency control function for adjusting dampers in technical building installations.
Description
Spring-return actuator with emergency control function for adjusting dampers in technical building installations.
Specification
Nominal Voltage: AC/DC 24V
Nominal Voltage Frequency: 50/60Hz
Nominal Voltage Range: AC 19.2…28.8V / DC 21.6…28.8V
Power Consumption…
In operation: 5W
At rest: 2.5W
For wire sizing: 7VA (lmax 5.8A @ 5ms)
Auxiliary Switch: 1 x SPDT, 0…100%
Switching Capacity Auxiliary Switch: 1mA…3 (0.5 inductive) A, AC 250V
Connection Supply/Control: Cable 1m, 2 x 0.75mm²
Connection Auxiliary Switch: Cable 1m, 3 x 0.75mm²
Parallel Operation: Yes
| Cable Length |
10 Meters, 15 Meters, 5 Meters |
|---|
