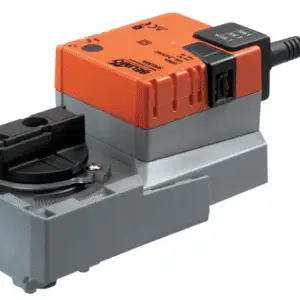

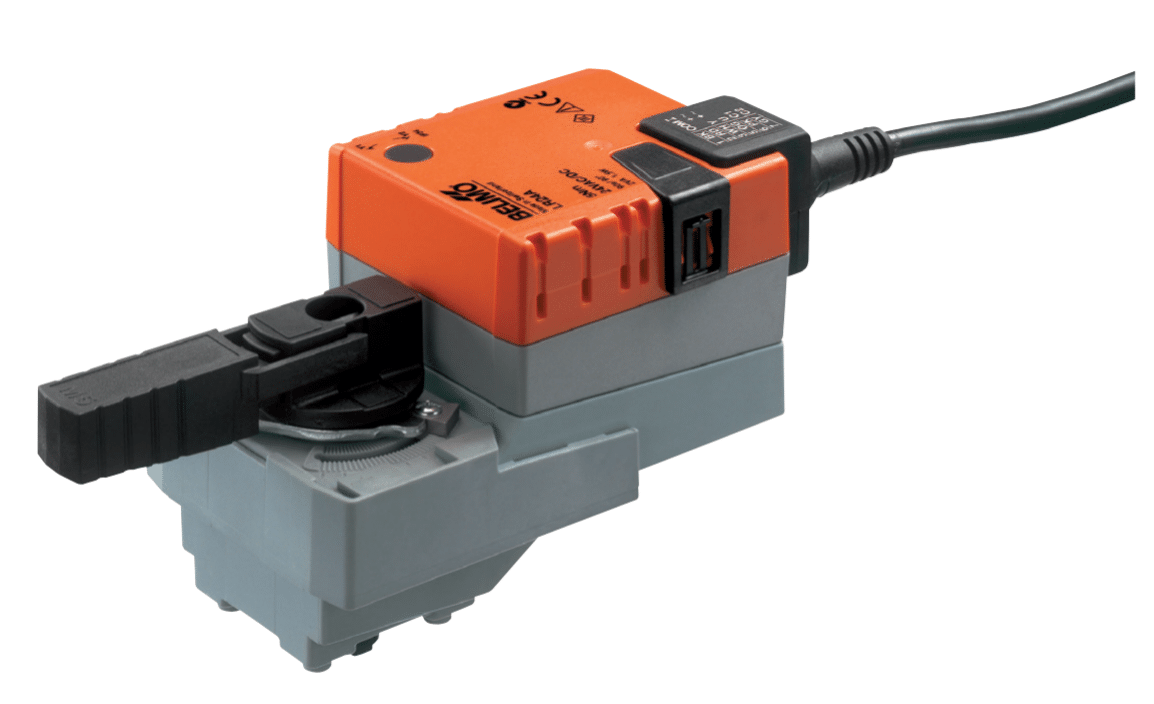

5 Nm 24V 3 point On-Off – LR24A(S2)
£109.00
5 Nm Rotary Actuator for use with Belimo Control Ball Valves (Ending S2) from 15mm to 32mm.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
5 Nm Rotary Actuator for use with Belimo Control Ball Valves (Ending S2) from 15mm to 32mm.
Specification
Nominal Voltage: AC/DC 24V
Nominal Voltage Frequency: 50/60Hz
Power Supply Range: AC/DC 19.2…28.8V
Power Consumption
In operation: 1W @ nominal torque
At risk: 0.2W
For wire sizing: 2VA
Connection: Cable 1m, 3 x 0.75mm²
Parallel Connection: Possible
Additional information
| Cable Length |
10 Meters, 15 Meters, 5 Meters |
|---|
