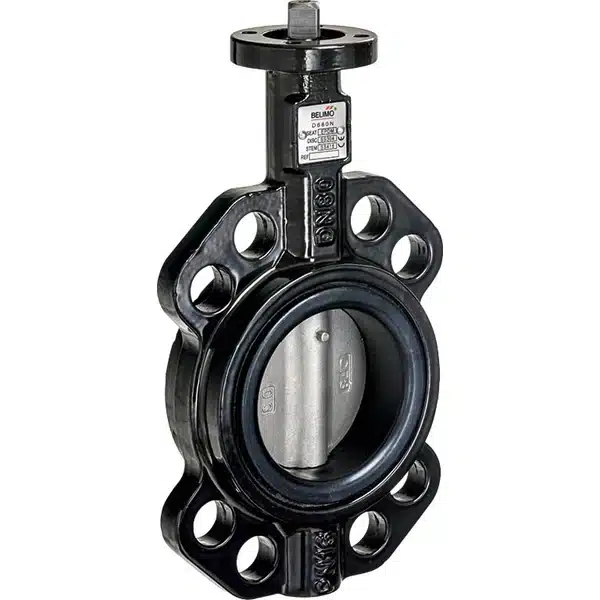

50mm Butterfly Valve Wafer Type PN16 (F05) – D650N
£109.00
The Belimo Wafer type Butterfly Valve for shut-off functions in open and closed cold and hot water systems.
The Butterfly valve is opened or closed completely by an open-close rotary actuator.
Continuous rotary actuators can move the valves discs into any position desired. The disc made of stainless steel is pressed into the soft-sealing EPDM seat.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
Description
The Belimo Wafer type Butterfly Valve for shut-off functions in open and closed cold and hot water systems.
The Butterfly valve is opened or closed completely by an open-close rotary actuator.
Continuous rotary actuators can move the valves discs into any position desired. The disc made of stainless steel is pressed into the soft-sealing EPDM seat.
Specification
Media: Cold and warm water, water with glycol up to max. 50% vol.
Medium Temperature: -20…120°C
Permissible Pressure ps: 1600 kPa
Leakage Rate: Leakage rate A, tight (EN 12266-1)
Pipe Connectors: DN 25…200: Flange PN 6/PN 10/PN16 (according to ISO 7005-2)
DN 250…350: Flange PN 10 / PN 16 (according to ISO 7005-2)
DN 400…700: Flange PN 16 (according to ISO 7005-2)
The angle of Rotation: 90°
Installation Position: Upright to horizontal (in relation to the stem)
Suitable Connection Flange: In accordance with ISO 7005-2 and EN 1092-2
Maintenance: Maintenance-free
Additional information
| Cable Length |
10 Meters, 15 Meters, 5 Meters |
|---|
