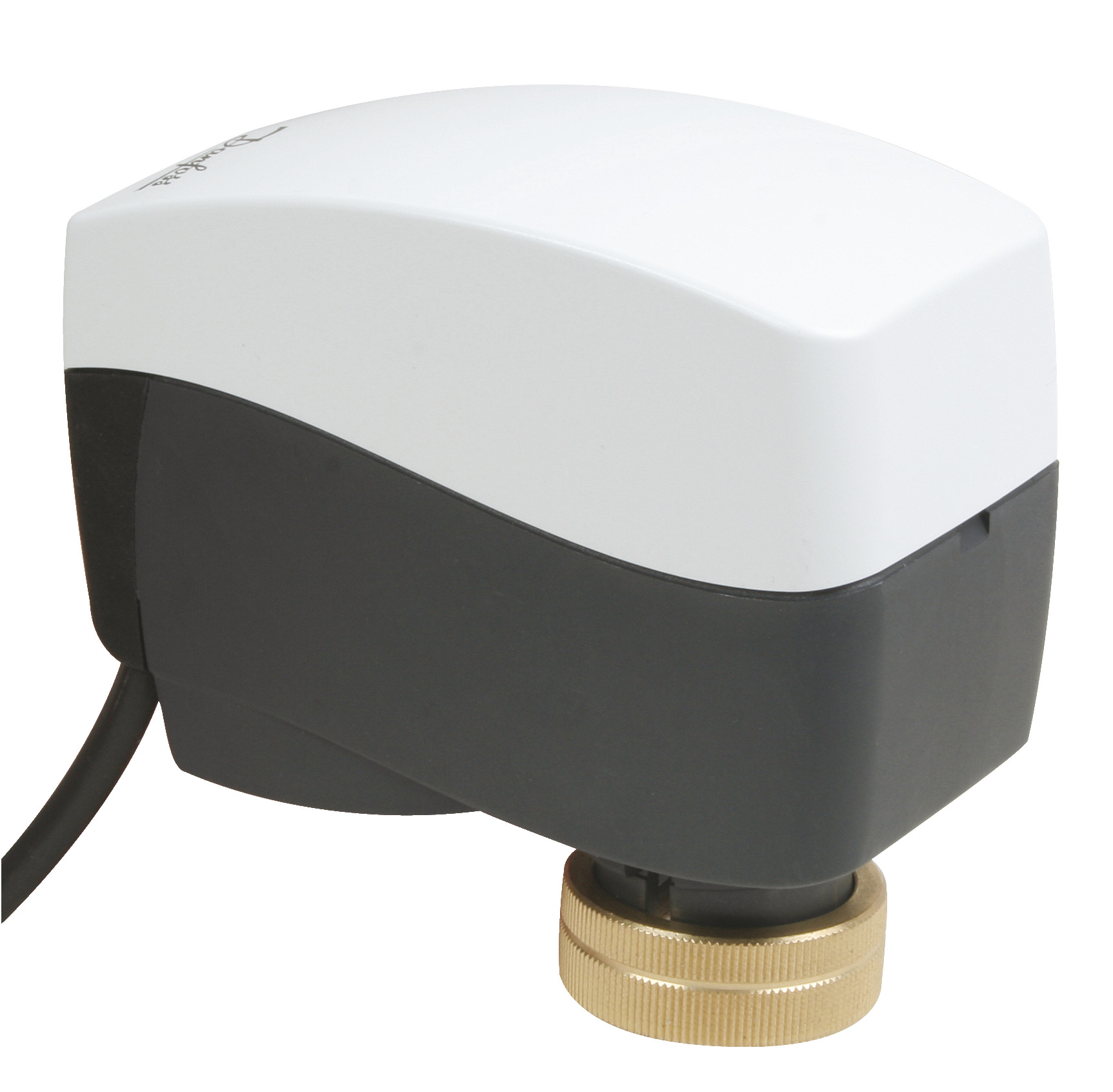

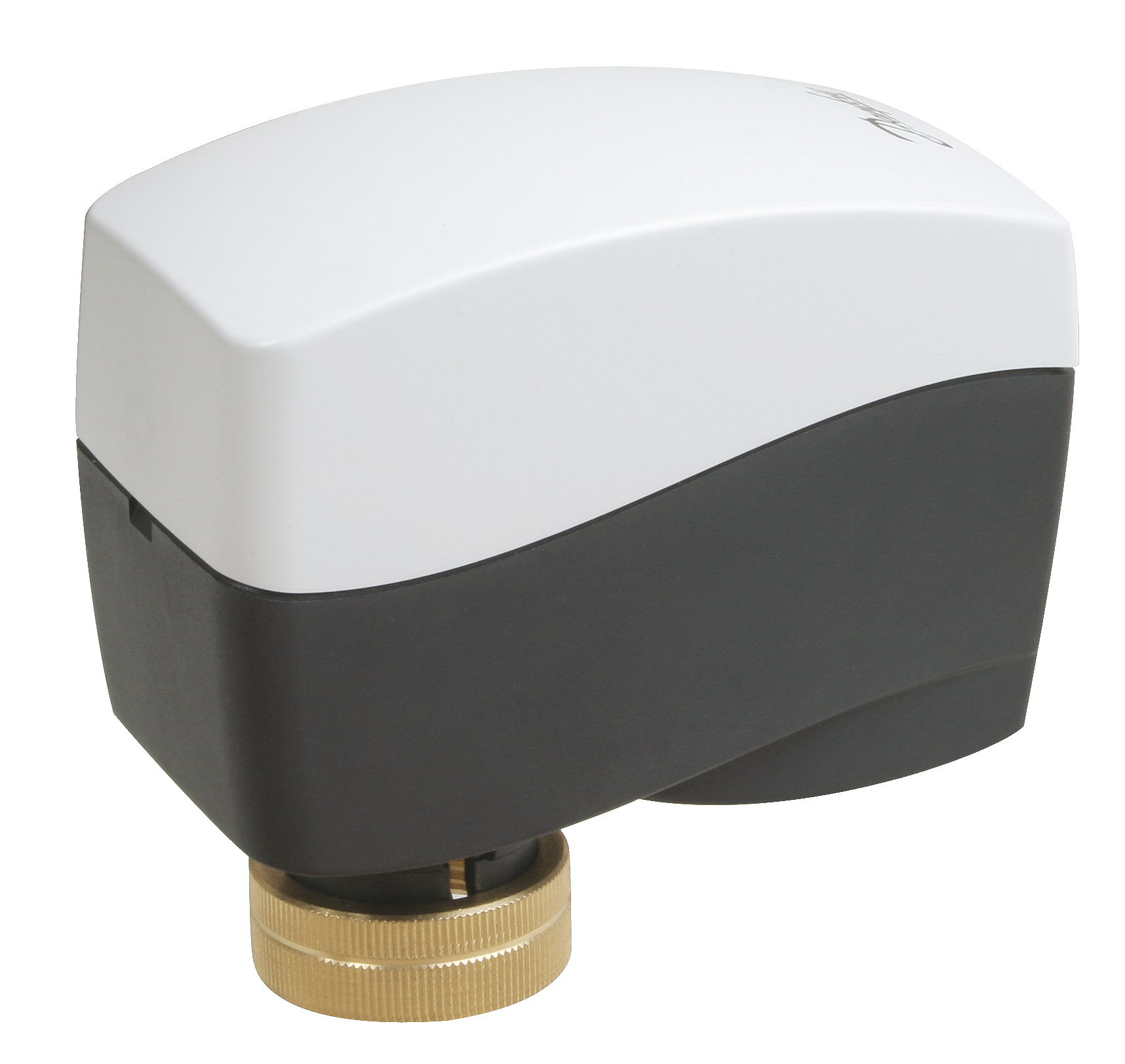

AMI 140 On/Off actuator, Supply voltage [V] AC: 230, 12 s/mm, 5.5 mm, 1.5 m
AMI 140, 24 V, 5,5 mm, actuator for two-point control for AB-QM DN 10-32
| Gross weight |
0.37 Kilogram |
| Net weight |
0.35 Kilogram |
| Volume |
1.001 Liter |
| EAN |
5702421552414 |
| Type |
AMI 140 On/Off actuator |
| Product group |
Gear actuators |
| Approval standard |
EC EN 60730 |
| Cable length [m] |
1.5 m |
| China RoHS compliance |
Out of scope |
| Compatibility with the valve |
AB-QM DN 10-32 |
| Contains batteries |
No |
| Control signal type |
On/Off |
| Description |
AMI 140, 24 V, 5,5 mm, actuator for two-point control for AB-QM DN 10-32 |
| EU RoHS compliance |
Yes with exemptions |
| EU RoHS exemption clause |
6(c) |
| IP protection class |
IP42 |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
| SCIP dossier no. |
1a7d963c-4bcb-4cdc-9664-6ba05408d797 |
| SCIP dossier product name |
AMI. AME/AMV (1) |
| Spindle speed [s/mm] |
12 s/mm |
| Stroke [mm] |
5.5 mm |
| Supply voltage [V] AC |
230 V |
