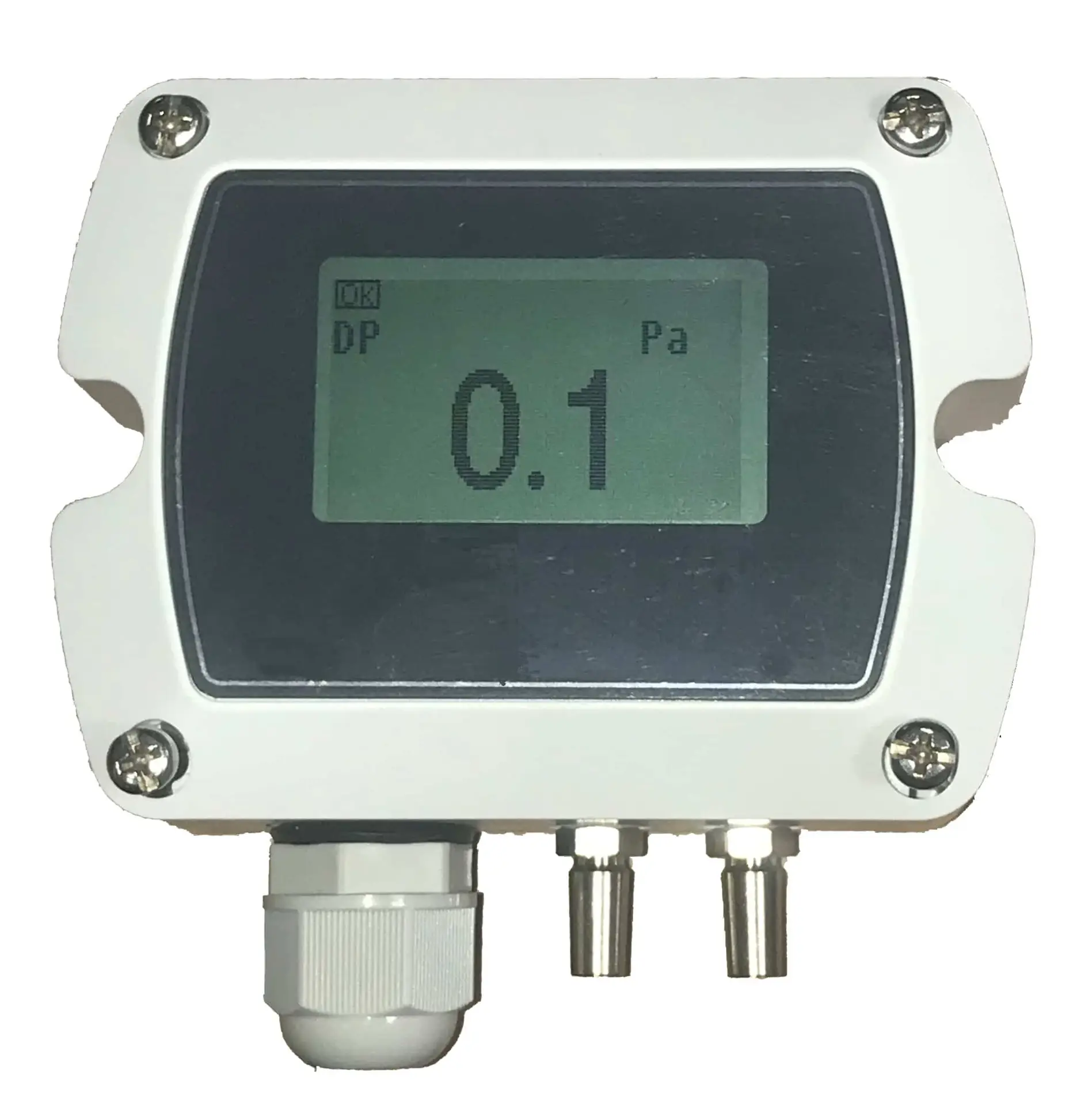

Air Differential Pressure Transmitter C/W Duct Kit 24Vdc
£135.00
The KDP210V is a versatile Air Differential Pressure transmitter fully scalable between –2000Pa to +2000Pa with selectable units with backlight LCD, the product is ideal for monitoring and controlling differential pressure in ventilation systems.
Supplied complete with tube connection kit.
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
- No-Risk Money Back Guarantee!
- No Hassle Refunds
- Secure Payments
Description
The KDP210V is a versatile Air Differential Pressure transmitter fully scalable between –2000Pa to +2000Pa with selectable units with backlight LCD, the product is ideal for monitoring and controlling differential pressure in ventilation systems.
Supplied complete with tube connection kit.
Specification
Range:Â Â Â Â Â Â Â Â Â Â Â Â Â -2000Pa to +2000Pa
Overpressure:Â Â Â Â Â X15
Units:                Pa, kPa, hPa, daPa, mbar, mmHg,  mmH2O, inHg
Output:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 0-10V, 0-5V
Supply Voltage:Â Â Â Â 18-30Vdc
Accuracy:           < ± 1% FS @ 05 to +65°C
Response Time:Â Â Â Â Â 0.1s, 0.5s, 1s, 2s
Termination:           Rising clamp for 0.5 to 2.5mm² cable.
Media:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Air and neutral gases
Operating temp:    -20 to +80°C
Power:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â < 3 Watts
Protection:Â Â Â Â Â Â Â Â Â Â Â IP65
Datasheet
KDP210V
Additional information
| Cable Length | 10 Meters, 15 Meters, 5 Meters |
|---|
