Air Pressure Sensing Switch

Name: Maxking Limited
Price range: $

£79.00

PTH is a series of pressure transducers that are ideal for monitoring and controlling pressure differentials in ventilation systems.
PTH transducers take up very little space and are designed for direct installation at the measuring point and are also compact and easy to install as there is ample room for attaching cables.

⚡ Electrical Calculator

Voltage (V) Current (A)

🔌 Cable Size Reference

🌬 Unit Converter

🔋 Transformer VA & MCB Calculator

Transformer Voltage (V) Transformer Current (A) OR Enter Transformer VA

📊 Reference Guide

Current (A)	Cable Size (mm²)
6	1
6-12	1.5
12-25	2.5
25-32	4
32-40	6
40-64	10
You must consider Ambient Temperature, Location and Thermal insulation in contact with cable.

Categories: Air, Pressure Products Tags: afs-222, Air Pressure Sensing Switch, Air Pressure Sensing Switch High Temperature, Pressure Brand: ECP

Description

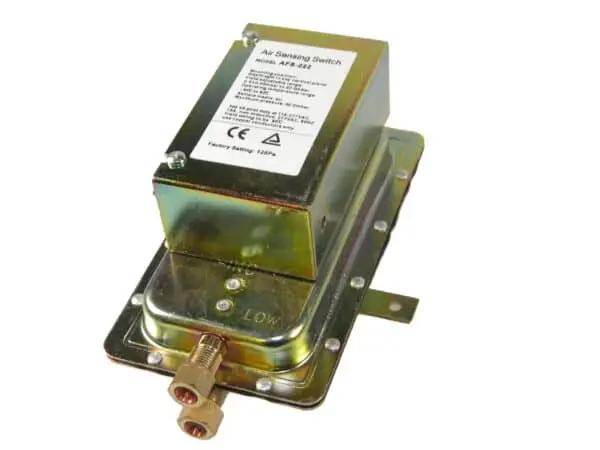

Model AFS-222 Air Pressure Sensing Switch is a general-purpose proving switch designed for HVAC and Energy Management applications. It may be used to sense positive, negative, or differential air pressure. The plated housing contains a diaphragm, a calibration spring, and a snap-acting SPDT switch.
The sample connections located on each side of the diaphragm accept 6mm OD copper tubing via the integral compression ferrule and nut.

Specification

Mounting Position: Mount with the diaphragm in any vertical plane.
Set Point Range: 0.05 ± 0.02″ w.c. to 12.0″ w.c.
Field Adjustable “Operate Range”: 0.07″ w.c. to 12.0″ w.c.
Field Adjustable “Release Range”: 0.04″ w.c. to 11.2″ w.c.
Approximate Switching Differential: Progressive, increasing from 0.02 ± – 0.01″ w.c. at minimum set point to approximately 0.8″ w.c. at maximum set point.
Measured Media: Air, or combustion by-products that will not degrade silicone.
Maximum Pressure: ½ psi (0.03 bar).
Operating Temperature Range: -40˚F to 180˚F (-40 to 82˚C).

Datasheet

afs-222-ht

Certificate of Conformity.

AFS-222-HT-UKCA

Additional information

Pressure	20-300Pa, 50-500Pa, 200-1000Pa
