Air Velocity Transmitter 0/16 m/s – 0-10Vdc – AVS-16
£198.00
Air Velocity Transmitter 0/16 m/s – 0-10Vdc – AVS-16
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
The AVS range functions to measure the air velocity in HVAC ducts and provide a linear 0-10Vdc output signal across the range. The unit operates on a thermal principle based on the cooling effect of the air speed.
Specification

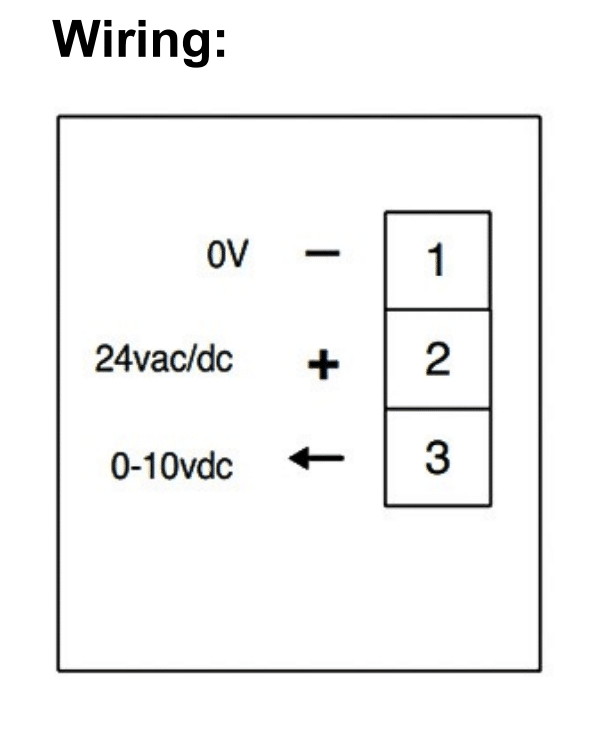

Power Supply: 24Vac/dc ±15%
Output Signal: 0-10Vdc
Load: >10KΩ
Accuracy: ±1% at mid range at 20°C
Range m/s: 0/16
Response Time: < 2s
Media Temp.: -10/+60°C
Media Humidity: 0/80%RH
Max. Ambient Temp.: -20/+60°C
Consumption: 85mA
Enclosure: IP65
Enclosure Flammability: UL94-V0

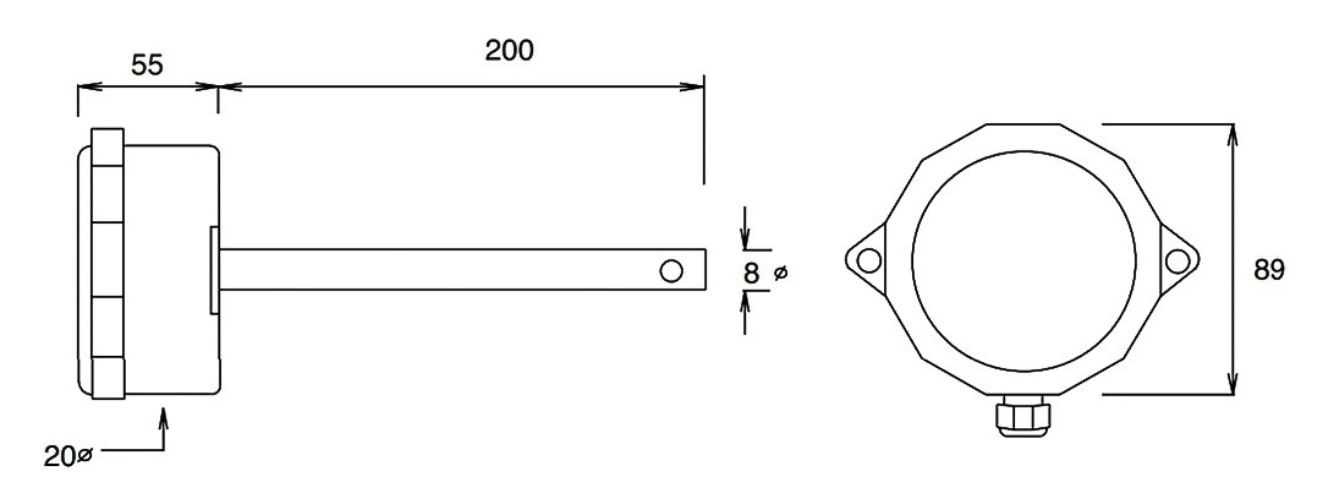

Mounting: Duct
