Aluminium Thimble Temperature
Price range: £24.70 through £32.70
Please select resistance type
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description

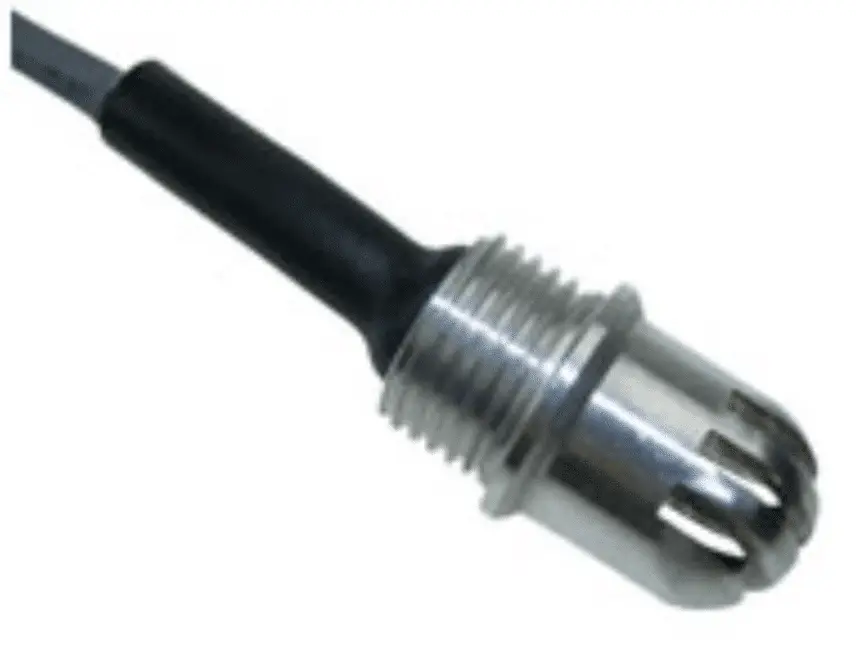

The TE-T range of thimble temperature sensors is designed to interface with a wide variety of HVAC control equipment. Units are available with a high-quality thermistor element or a platinum element. The sensor is housed in an aluminium thimble-type enclosure with optional white plastic, brass, polished brass or stainless steel versions also available.
Specification
Sensor Type: Thermistor 10K3A1, 10K4A1, 1.8K, 20K6A1, 30K6A1, 3K3A1, 50K6A1, NI1000, PT100, PT1000 and SAT1
Accuracy: ± 0.2°C, 0…70°C
Housing: Aluminium
Protection: IP30
Termination: 2 meters of PVC flying lead
Ambient: 0°C to +50°C, 0-95% RH non-condensing
Additional information
| Weight | 0.53 kg |
|---|---|
| Dimensions | 9 × 9 × .4 cm |
| Sensor Type |
1.8K, 10K3A1, 10K4A1, 20K6A1, 30K6A1, 3K3A1, 50K6A1, Ni1000, PT100, PT1000, SAT1 |
