AME 110 NLX 0-10V, Supply voltage [V] AC: 24, Supply voltage [V] DC: 24, 12 s/mm;3 s/mm, 7.5 mm, 1.5 m

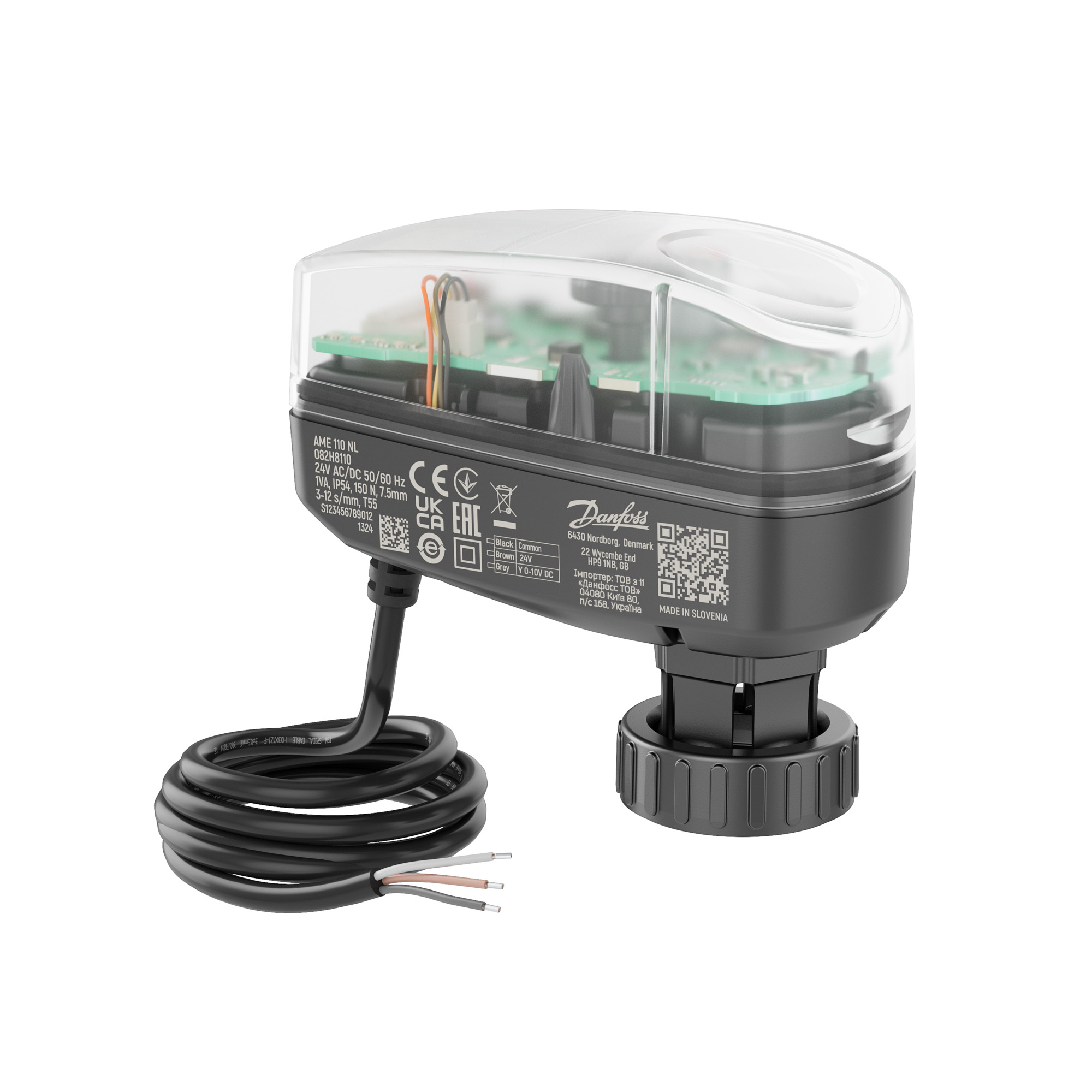

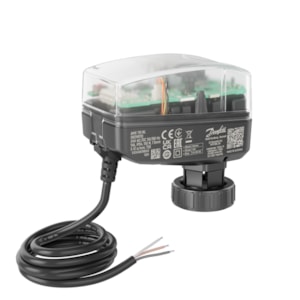

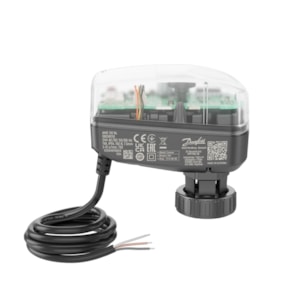

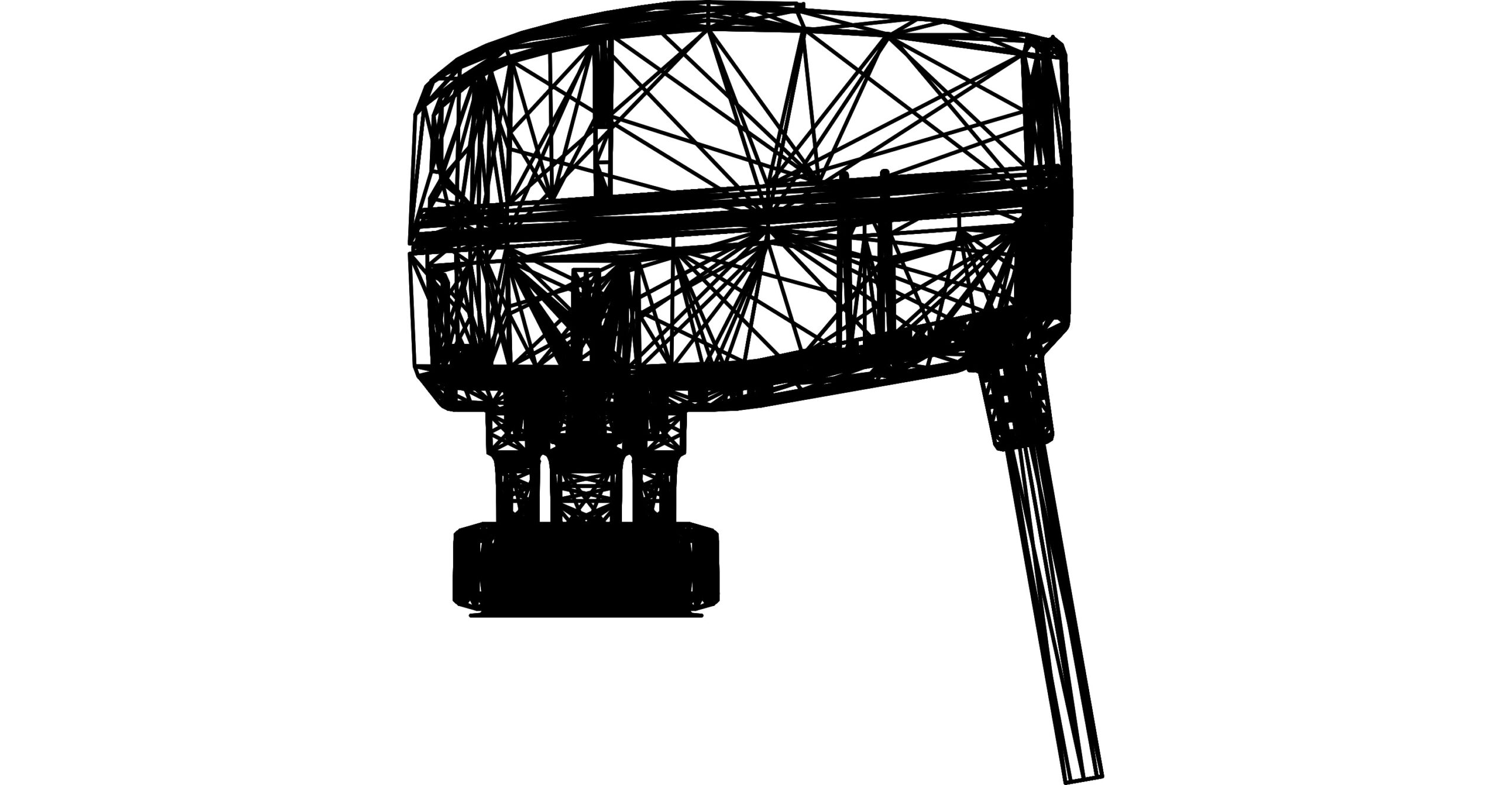

AME 110 NLX, 2nd Gen., 24V AC/DC, 1.5m Cable, Actuator with Feedback Signal for Modulating Control of AB-QM 4.0 DN 15-32 Valves.
| Gross weight |
0.337 Kilogram |
| Net weight |
0.293 Kilogram |
| Volume |
1.637 Liter |
| EAN |
5715162792766 |
| Type |
AME 110 NLX 0-10V |
| Product group |
Gear actuators |
| Cable length [m] |
1.5 m |
| CE mark |
Yes |
| China RoHS compliance |
Yes |
| Compatibility with the valve |

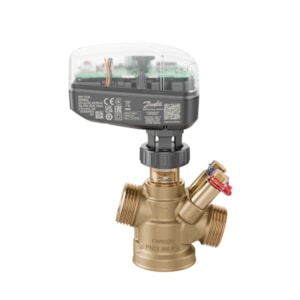

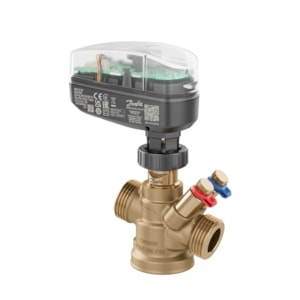

AB-QM DN 15-32 |
| Contains batteries |
No |
| Control characteristic |
LOG
LIN |
| Control input signal Y [mA] |
0(4) – 20 mA |
| Control input signal Y [V] |
0(2) – 10 V |
| Control signal type |
Modulating |
| Description |
AME 110 NLX, 2nd Gen., 24V AC/DC, 1.5m Cable, Actuator with Feedback Signal for Modulating Control of AB-QM 4.0 DN 15-32 Valves. |
| EPD available |
Yes |
| EU RoHS compliance |
Yes |
| EU RoHS exemption clause |
No |
| Identical product |
082H8122 |
| IP protection class |
IP54 |
| Position feedback |
yes |
| Quantity per packing format |
1 pc |
| REACH Candidate List substances |
No |
| Spindle speed [s/mm] |
12 s/mm
3 s/mm |
| Stroke [mm] |
7.5 mm |
| Supply voltage [V] AC |
24 V |
| Supply voltage [V] DC |
24 V |
