Danfoss, Danfoss Actuators

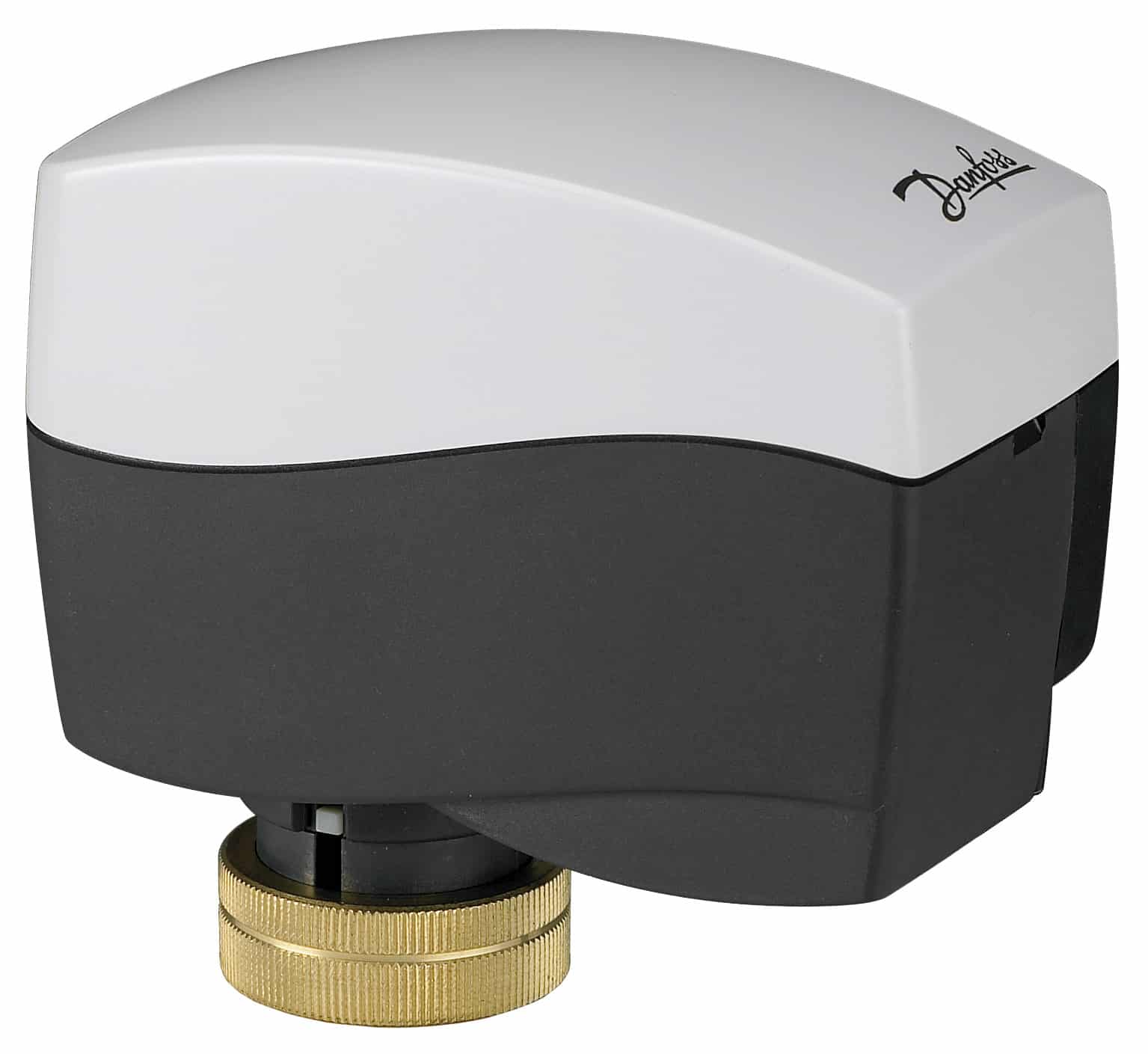

AME130 – 24v 0-10v Actuator – To Suit VZL DN15-20
£96.00
AME 130, 24 s/mm, 5.5 mm
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 12 | 1 |
| 16 | 1.5 |
| 20-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
AME 130, 24 s/mm, 5.5 mm
| Gross weight | 0.356 Kilogram |
| Net weight | 0.356 Kilogram |
| Volume | 1.01 Liter |
| EAN | 5702421551998 |
| Type | AME 130 |
| Product group | Gear actuators |
| Actuator speed [s/mm] | 24 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | fan coils |
| Cable included | Yes |
| Cable length [m] | 1.5 m |
| China RoHS compliance | Out of scope |
| Closing force [N] | 200 N |

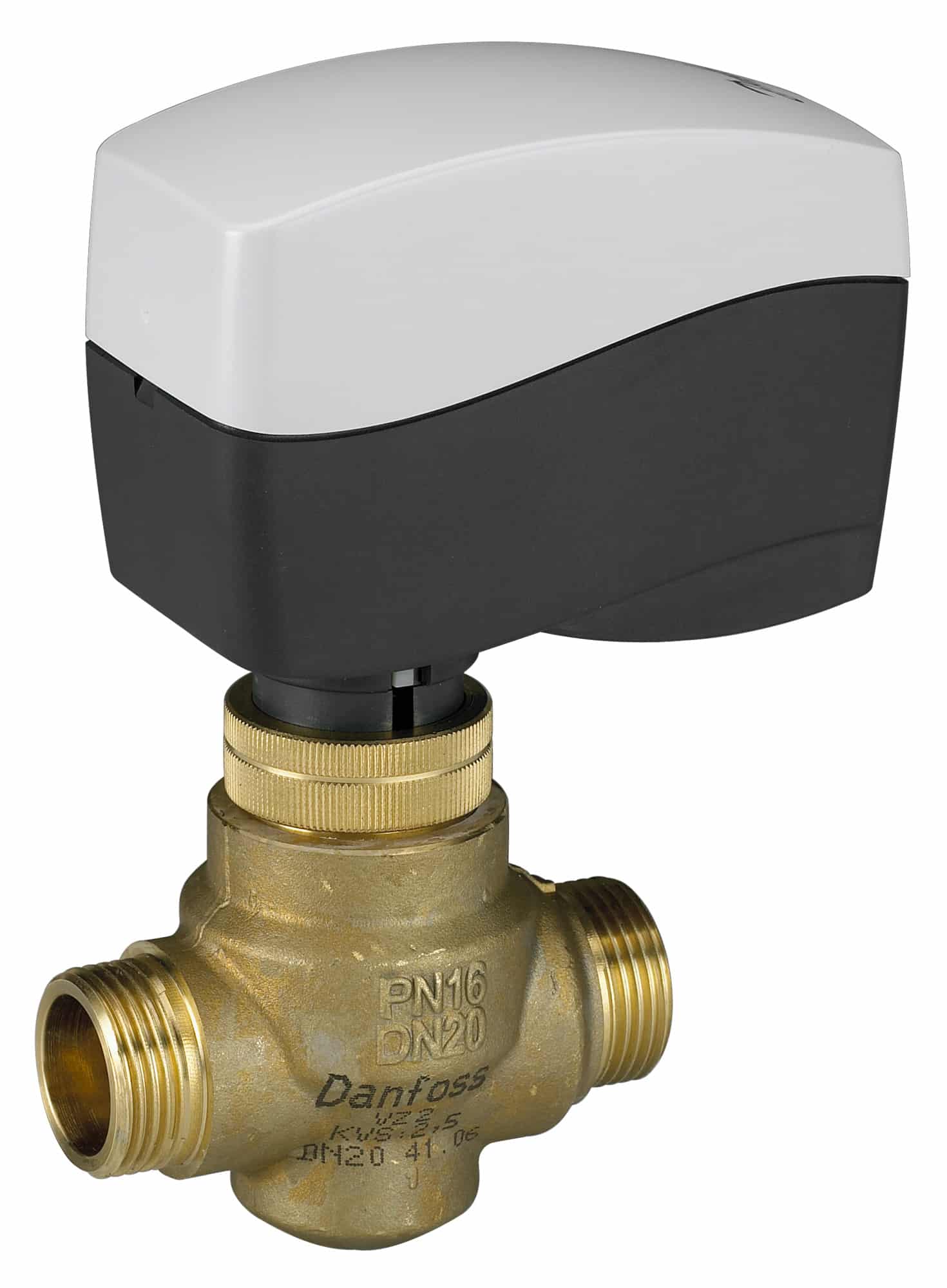

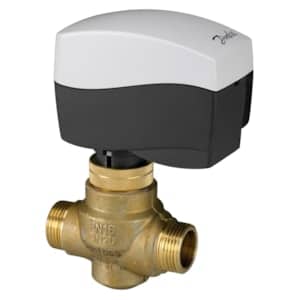

| Compatibility with valve | VZ DN 15-20 VZL DN 15-20 |
| Contains batteries | No |
| Control input signal Y [mA] | 0 – 20 mA |
| Control input signal Y [V] | 0 – 10 V |
| Control signal type | Modulating |
| Description | AME 130 24V 24s/mm 5,5mm 200N |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| IP protection class | IP42 |
| Manual operation | Yes |
| Position feedback | yes |
| Power consumption [W] | 1 W |
| Protection Class of the Coating | II |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Safety function | No |
| SCIP dossier no. | a7f508f2-7334-4235-ad12-f5727ea1ec95 |
| SCIP dossier product name | AME 130 24V 24s/mm 5.5mm 200N |
| Speed type | Standard |
| Spindle speed [s/mm] | 24 s/mm |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 5.5 mm |
| Supply voltage [V] | 24 V AC |
| Turn time per 90° [s] | 0 “ |
Additional information
| Weight | 0.5 kg |
|---|
