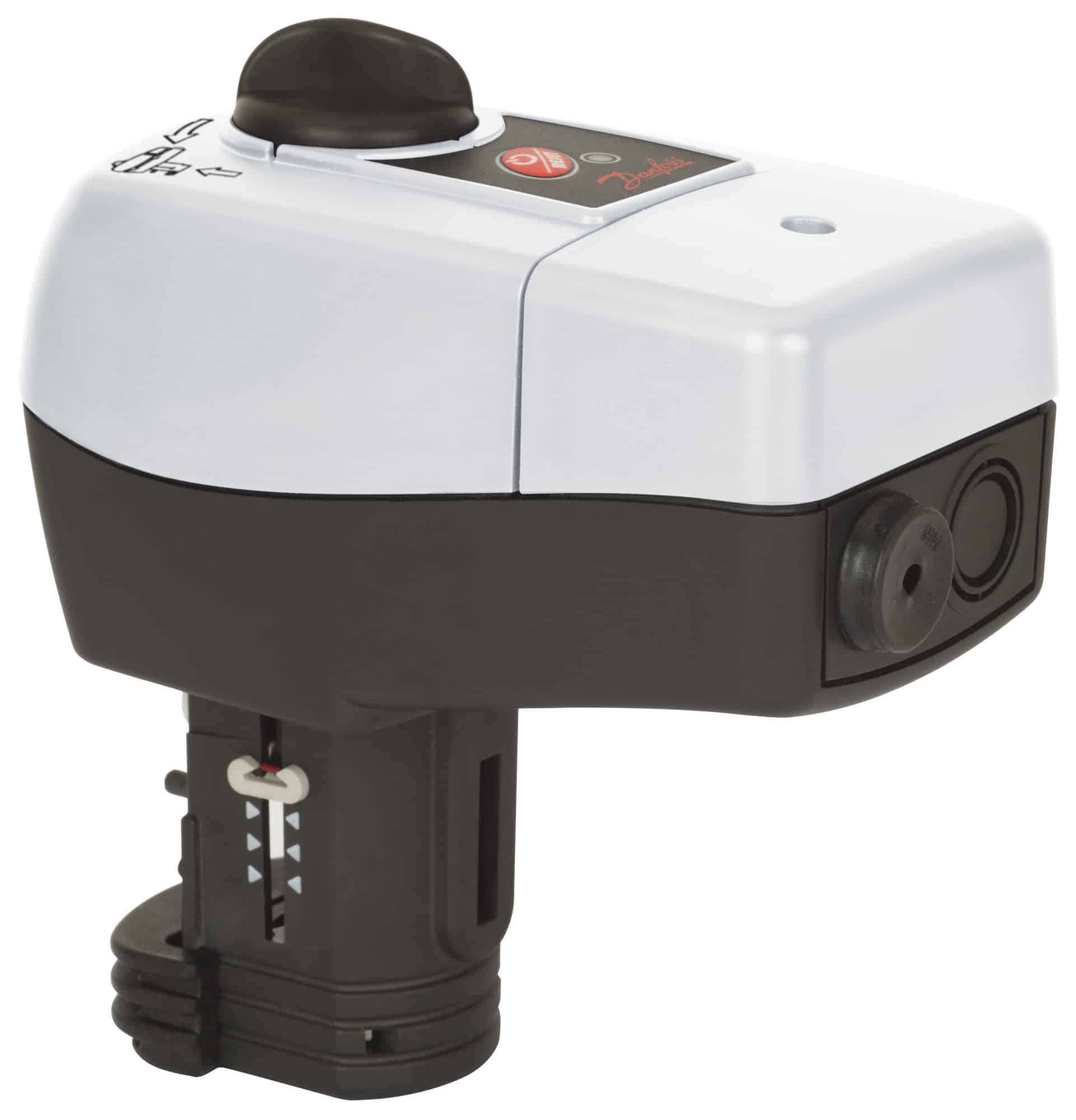

AME 435, 15 s/mm;8 s/mm;3 s/mm, 20 mm
| Gross weight |
0.725 Kilogram |
| Net weight |
0.582 Kilogram |
| Volume |
4.144 Liter |
| EAN |
5710104006284 |
| Type |
AME 435 |
| Product group |
Gear actuators |
| Actuator speed [s/mm] |
8 s/mm
15 s/mm
3 s/mm |
| Actuator type |
Electrical |
| Ambient temperature [°C] [max] |
55 °C |
| Ambient temperature [°C] [min] |
0 °C |
| Application |
HVAC |
| China RoHS compliance |
Out of scope |
| Closing force [N] |
400 N |
| Contains batteries |
No |
| Control input signal Y [mA] |
0(4) – 20 mA |
| Control input signal Y [mA], impedance [Ohm] |
500 Ohm |
| Control input signal Y [V] |
0(2) – 10 V |
| Control input signal Y [V], impedance [kOhm] |
95 kOhm |
| Control signal type |
Modulating |
| Description |
AME 435, 24V AC/DC, 3-15s/mm, 20mm, 400N |
| EPD available |
Yes |
| EU RoHS compliance |
Yes with exemptions |
| EU RoHS exemption clause |
6(c) |
| IP protection class |
IP54 |
| Manual operation |
Yes |
| Position feedback |
yes |
| Power consumption [W] |
5 W |
| Protection Class of the Coating |
II |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
| Safety function |
No |
| SCIP dossier no. |
74c42f1a-6965-43b3-ac5a-72dfa5d00cdf |
| SCIP dossier product name |
AME 435 24V 7.5-15s/mm 20mm 400N |
| Speed type |
Standard |
| Spring down (return) |
No |
| Spring up |
No |
| Storage temperature [°C] [Max] |
70 °C |
| Storage temperature [°C] [Min] |
-40 °C |
| Stroke [mm] |
20 mm |
