AME 55 QM, Supply voltage [V] AC: 24, 40 mm

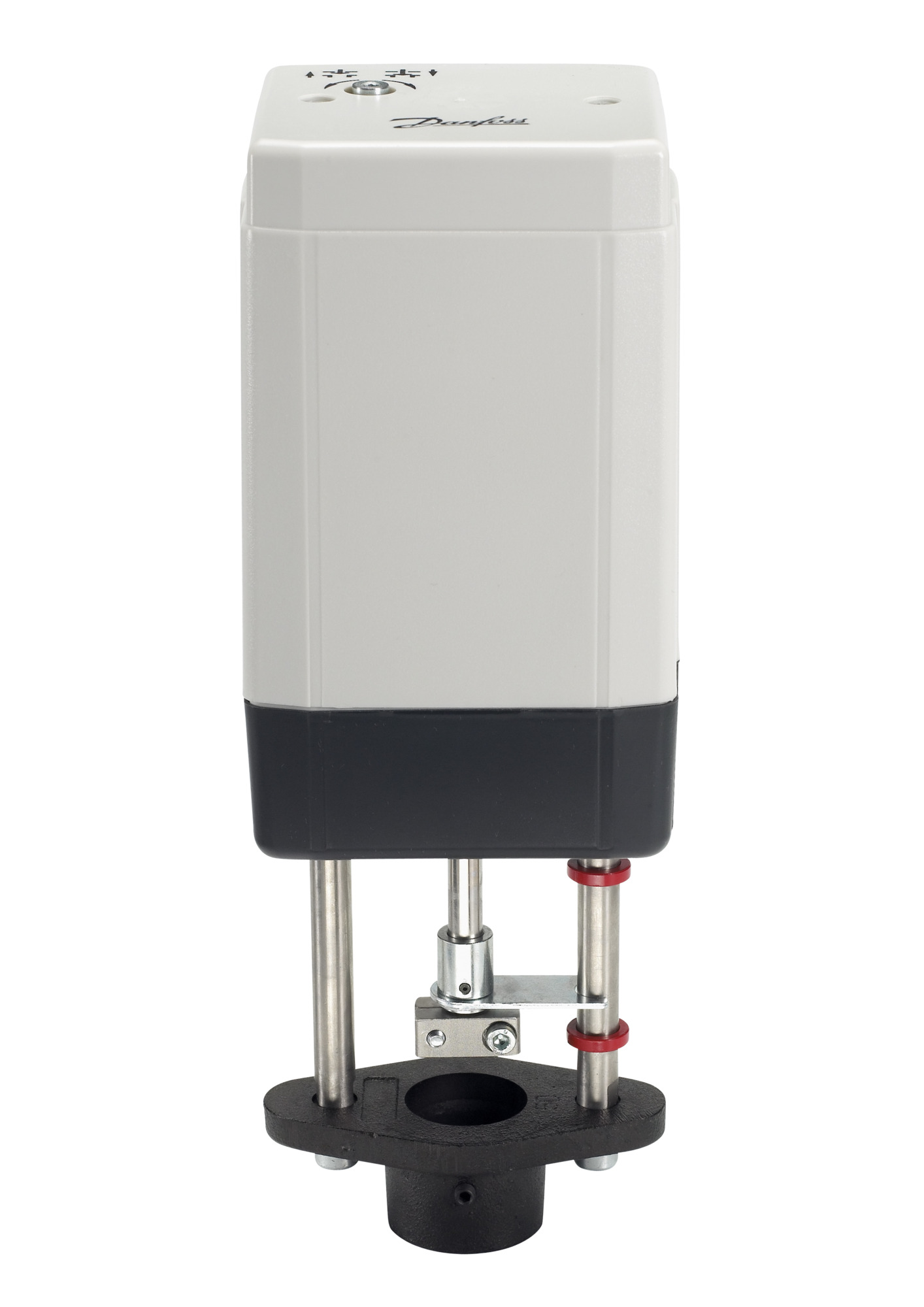

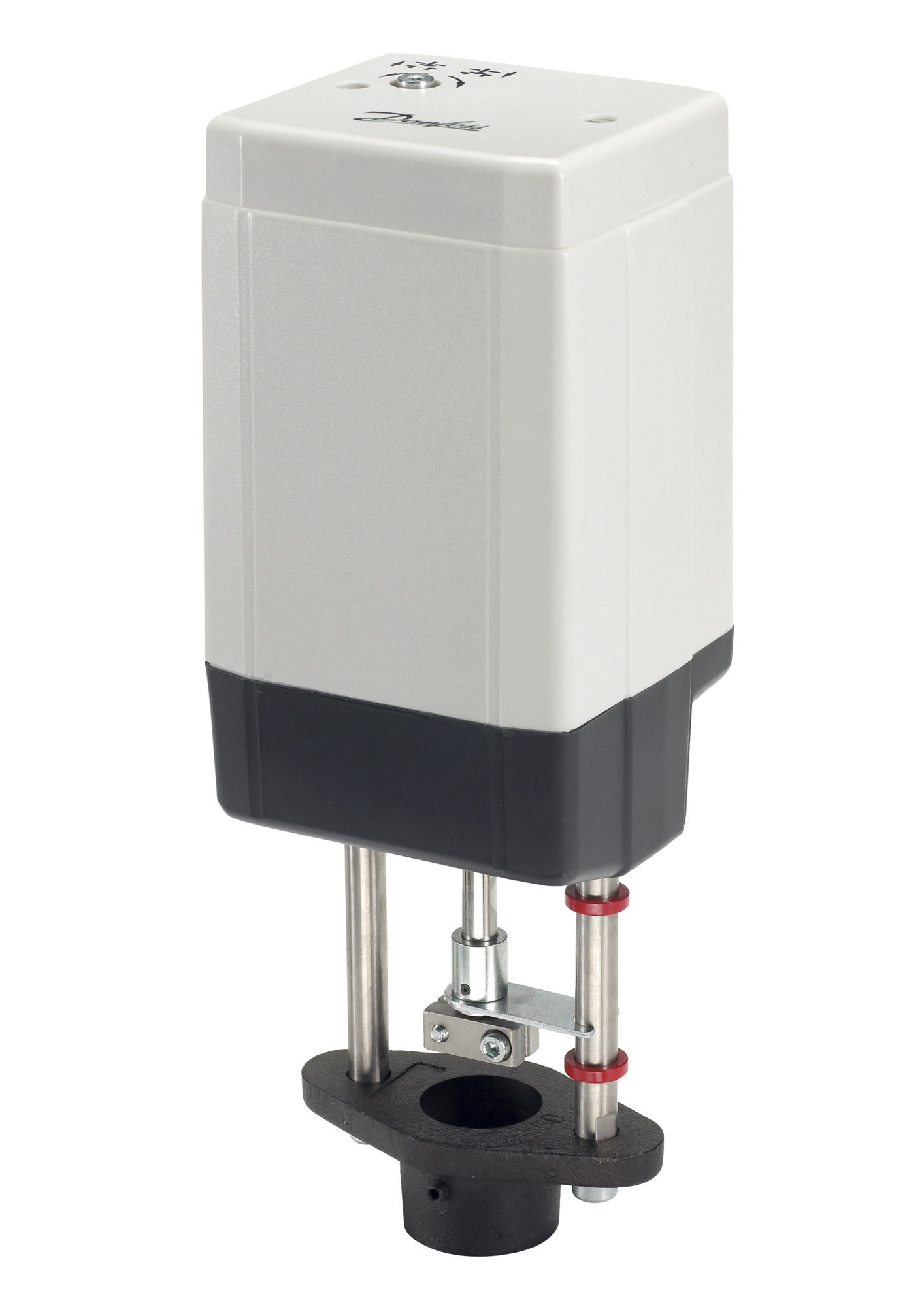

AME 55 QM, 24 V, 40 mm, actuator for modulating control for AB-QM DN 125-150
| Gross weight |
2.98 Kilogram |
| Net weight |
2.97 Kilogram |
| Volume |
7.2 Liter |
| EAN |
5702421561126 |
| Type |
AME 55 QM |
| Product group |
Gear actuators |
| Approval standard |
EC EN 60730 |
| Cable included |
No |
| China RoHS compliance |
Out of scope |
| Compatibility with the valve |
AB-QM DN 125-150 |
| Contains batteries |
No |
| Control characteristic |
LOG
LIN |
| Control input signal Y [mA] |
0(4) – 20 mA |
| Control input signal Y [V] |
0(2) – 10 V |
| Control signal type |
Modulating/3-point |
| Description |
AME 55 QM, 24 V, 40 mm, actuator for modulating control for AB-QM DN 125-150 |
| EU RoHS compliance |
Yes with exemptions |
| EU RoHS exemption clause |
6(c) |
| IP protection class |
IP54 |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
| SCIP dossier no. |
9b3425d2-c0c8-494d-b6f7-7ce03417a8c7 |
| SCIP dossier product name |
082H3078 |
| Spindle speed [s/mm] |
8 s/mm |
| Stroke [mm] |
40 mm |
| Supply voltage [V] AC |
24 V |
