Cable, Temperature Sensors
Belden Cable 6 core (3 pair)
£149.00
100m Roll of 4 core (2 pair) Belden – 8272 LSF Grey
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description

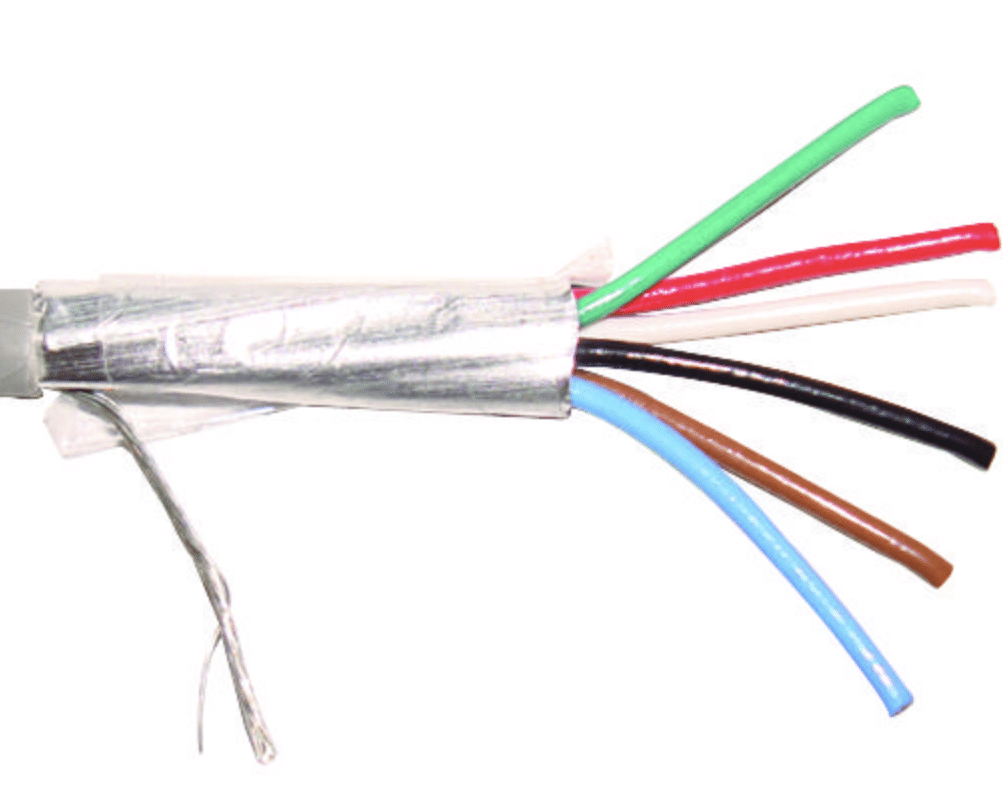

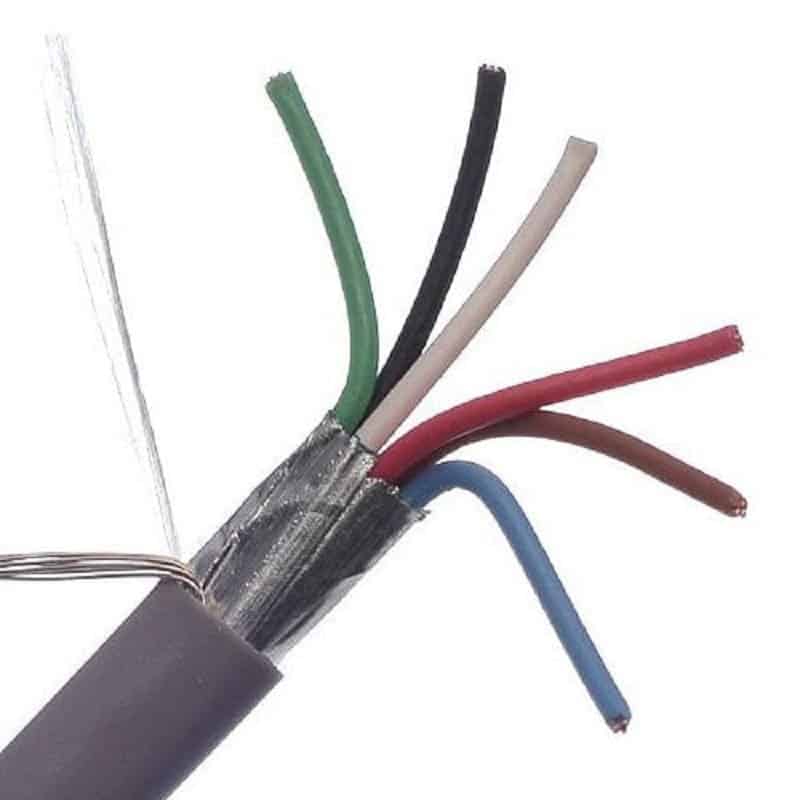

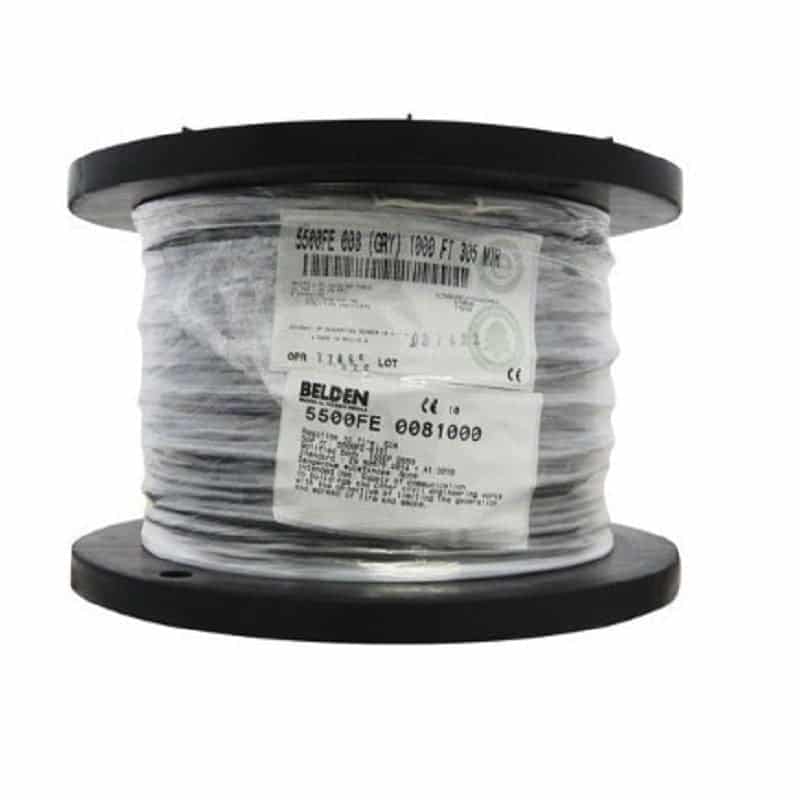

100m Roll of 6 core (3 pair) Belden
Controls, Security & Alarm Cable, Riser-CMR, 6-22 AWG stranded bare copper conductors with polyolefin insulation, shield and PVC jacket with ripcord
Specifications
- Colour: Grey
- Conductor Resistance: 78.7Ω
- Core Colours: Red/Black, White/Green, Brown/Blue
- External Diameter: 8.54mm
- Guarantee: 1 Year
- Material: Polyethylene
- Number of Pairs: 3
- Packaging Types: 100 Metres
- Product Range: Belden
- Standards: NEC CMG
- Type: 9842LSF
- Unspsc V18: 26121604
- Unspsc V24: 26121604
- Voltage Rating: 300V
- Weight: 0.39kg
- Wire Gauge 22AWG
- Outside Diameter 4.547mm
Features
- Overall Foil and Brid Screened Cable
- Polyethylene Insulation
- Low Smoke and Fume
- 3 Pair
- Suitable for Data applications
Additional information
| Cable Length | 10 Meters, 15 Meters, 20 Meters, 5 Meters |
|---|
