Beldon Cable 4 core

£89.00

100m Roll of 4 core (2 pair) Belden – 8272 LSF Grey

- +

⚡ Electrical Calculator


🔌 Cable Size Reference


🌬 Unit Converter


🔋 Transformer VA & MCB Calculator


📊 Reference Guide

Current (A) Cable Size (mm²)
6 1
6-12 1.5
12-25 2.5
25-32 4
32-40 6
40-64 10
You must consider Ambient Temperature, Location and Thermal insulation in contact with cable.
Categories: , Brand:

Description

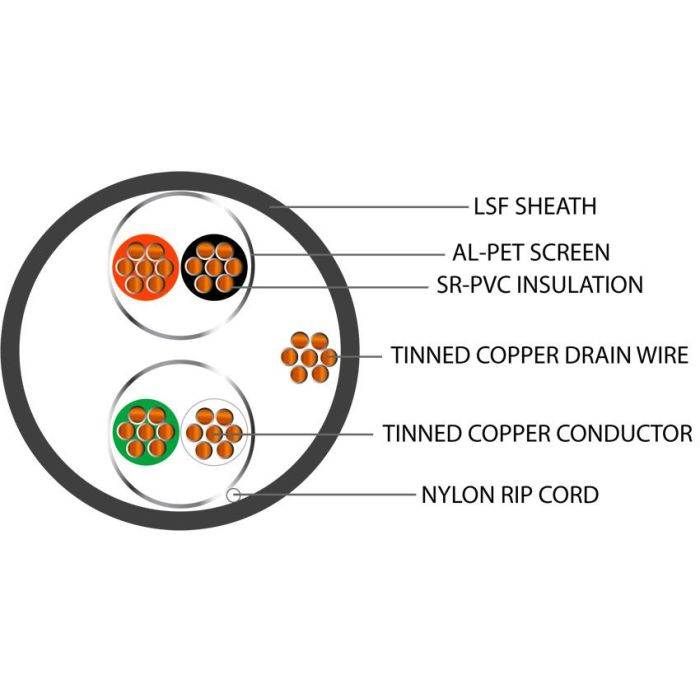

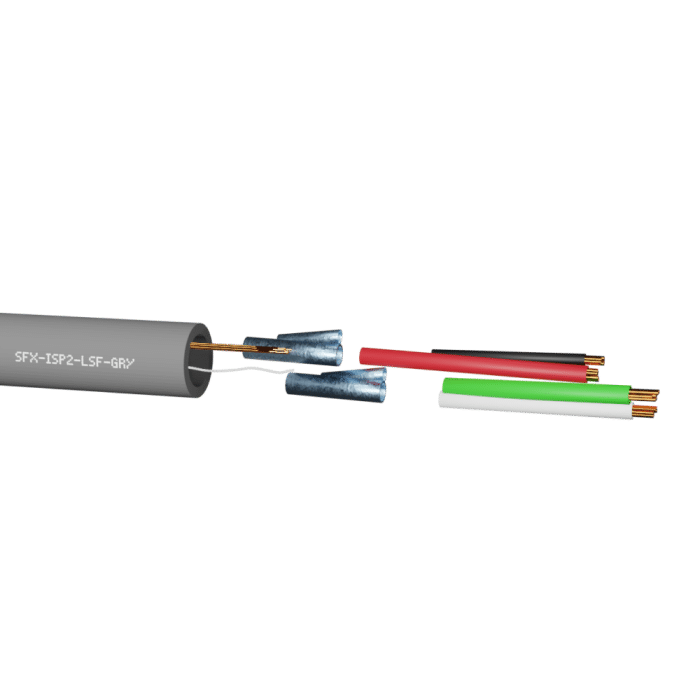

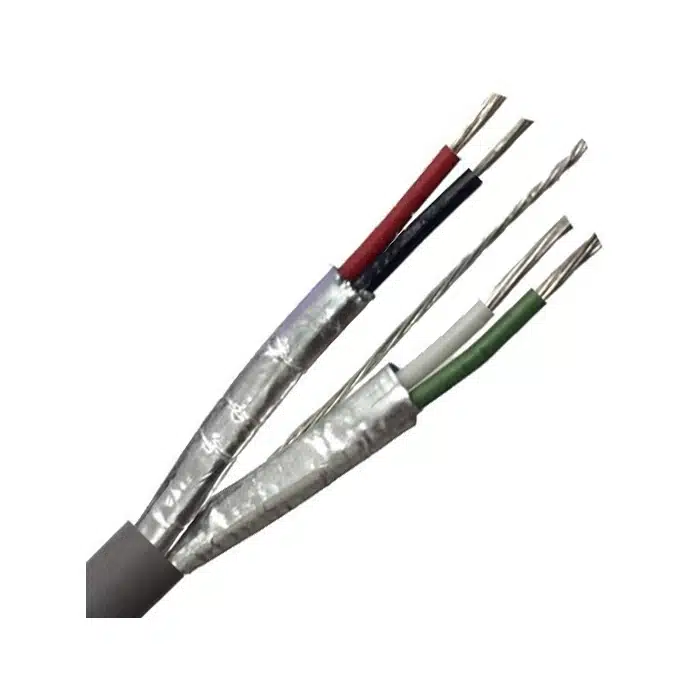

100m Roll of 4 core (2 pair) Belden – 8272 LSF Grey

Specifications

  • Colour: Grey
  • Conductor Resistance: 78.7Ω
  • Core Colours: Red/Black, White/Green
  • External Diameter: 8.54mm
  • Guarantee: 1 Year
  • Material: Polyethylene
  • Number of Pairs: 2
  • Packaging Types: 100 Metres
  • Product Range: Belden
  • Standards: NEC CMG
  • Type: 9842LSF
  • Unspsc V18: 26121604
  • Unspsc V24: 26121604
  • Voltage Rating: 300V
  • Weight: 0.39kg

Features

  • Overall Foil and Brid Screened Cable
  • Polyethylene Insulation
  • Low Smoke and Fume
  • 2 Pair
  • Suitable for Data applications

HVACProducts.co.uk

Datasheet_Belden

Additional information

Cable Length

10 Meters, 15 Meters, 20 Meters, 5 Meters
