Compact IO Module DOOC-16-C
£188.10
The 16-channel digital output module has 16 open collector outputs, each capable of taking on a maximum load of 100 mA.
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
Digital open collector output module, 16 inputs, max 100mA/channel.
- Screwless installation with click-on DIN-rail communication bus and power connectors
- Push-in spring connectors for cables
- Individually detachable terminal blocks per channel
The 16-channel digital output module has 16 open-collector outputs, each capable of sourcing up to 100 mA.
Each channel has a green and red LED indicating its current status, and a built-in safety feature that deactivates the channel when power leakage is detected.
The module can control 16 high-power relays and swiftly command any device from a serial Modbus master controller.
T Bus connecter (Terminal C) required for MODBUS + and – connection, along with other supply voltage 24VDC, and consumes 15mA.
If more than 1 module is being installed, you only need one terminal connector. If connecting, say, 10 of the same or different modules, only one T Bus connector is required.
Communication: Modbus RTU (RS485) at speeds up to 57600 bps. Use no parity, 8 data bits and 1 stop bit. The module will automatically detect the bus communication speed (9600, 19200, 38400, or 57600 bps).
Modbus address: The module’s address can be set to 1-63 by changing the position of dip-switches 1-6. Each dip switch represents a binary value, as indicated on the module and the datasheet.
Modbus loop termination: On the last module, the Modbus loop must be closed by connecting a 120 Ω resistor between the A and B sides of the RS-485 loop.

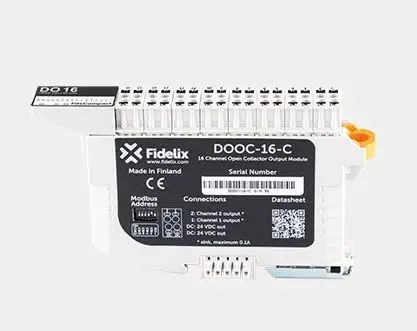

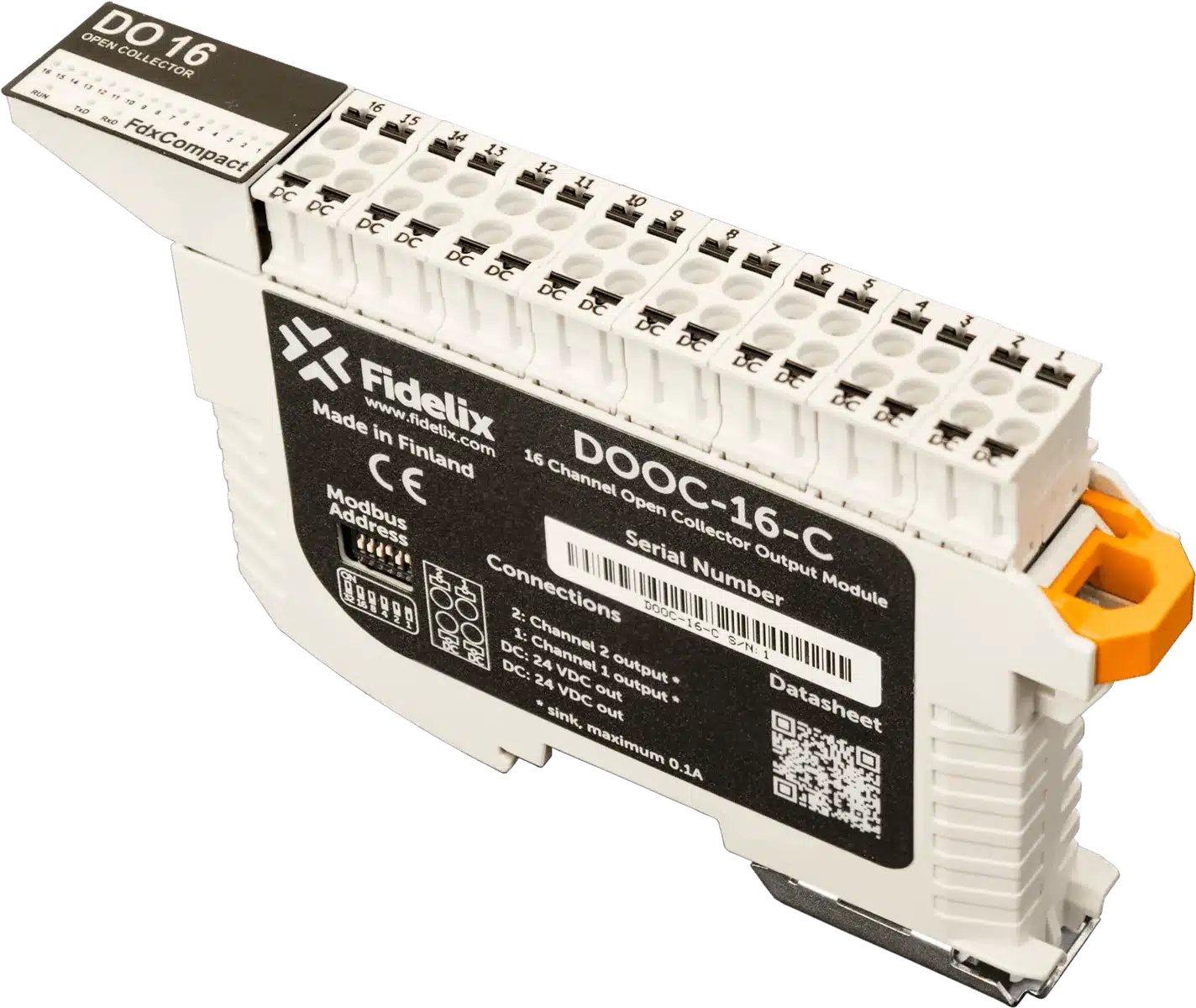

DOOC-16-C Fidelix Digital Out Module
– 16 digital outputs
– Short circuit protection with indication
– Programmable default status in case of communication failure
– Programmable default status in case of communication failure
– Pluggable connection terminals
– RS-485 communication with Modbus protocol
– Mounting on DIN rail
The DOOC-16-C has 16 open-collector outputs; each can sink up to 100 mA.
Each output has a green and red LED that indicates the current status, and a built-in safety function that deactivates the channel when, e.g., a short circuit occurs.
Quick and easy installation, with power supply and communication integrated into the DIN rail.
Watch the YouTube video:Â AI-8-C YouTube
Technical information
Supply voltage: 24 VDC (+/- 10%)
Current consumption: 5 mA + (16 x 100 mA)
Ambient operating temperature: 0 to +40ºC
Ambient humidity operation: Max 95%RH, non-condensing
Module size: 134 mm x 78 mm x 19 mm
Module weight: 90 g
Protection class: IP20
Communication speed: 9600 bps, 19200 bps, 38400 bps or 57600 bps
Address range: 1 – 63
Communication protocol: Modbus RTU
Load outputs: Max 100 mA
Additional information
| Weight | 0.90 kg |
|---|---|
| Dimensions | 13.4 × 1.9 × 7.8 cm |
| Amps | 4A, 6A, 8A |
