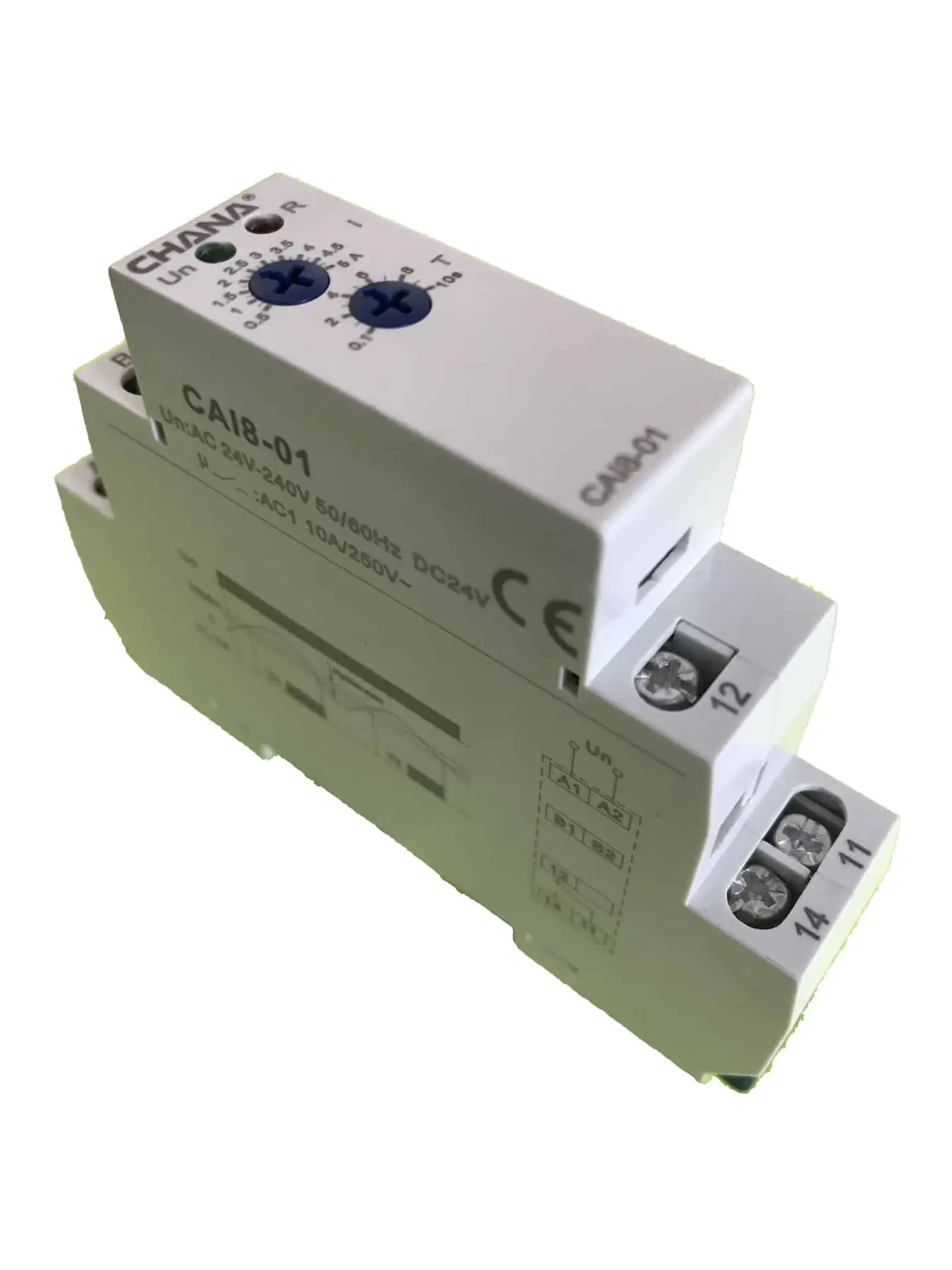

Current Monitoring Relay CMR5-VFC
£32.00
The Current Monitoring Relay is designed to monitor Current to equipment and can be set to switch the voltage-free contact at a set current.
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |

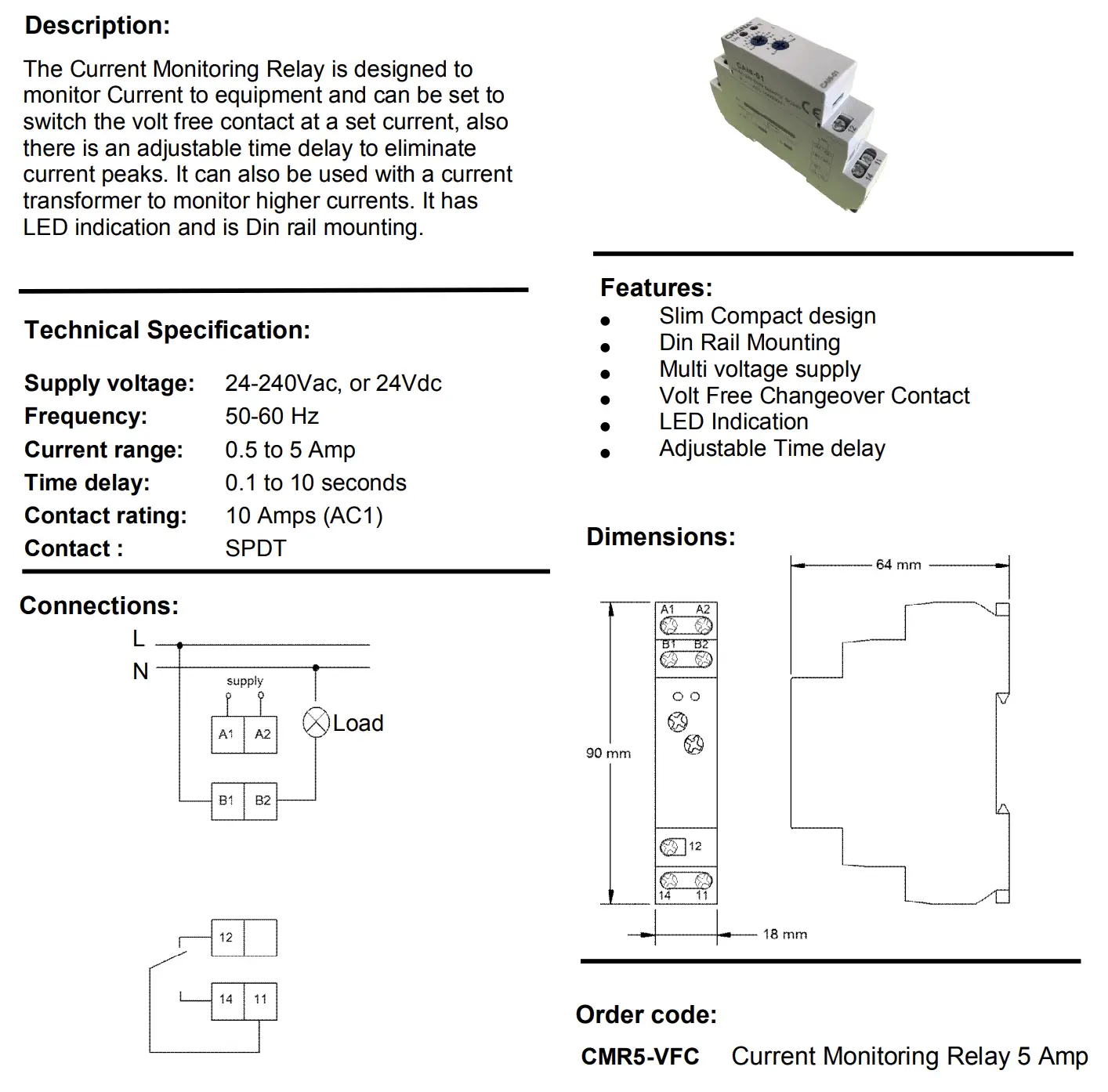

Description
The Current Monitoring Relay is designed to monitor Current to equipment and can be set to switch the volt free contact at a set current, also there is an adjustable time delay to eliminate current peaks. It can also be used with a current transformer to monitor higher currents. It has LED indication and is Din rail mounting.
Supply Voltage: 24 – 240Vac, or 24Vdc
Frequency: 50 – 60Hz
Current Range: 0.5 to 5 Amps
Time Delay: 0.1 to 10 seconds
Contact Rating: 10 Amps (AC1)
Contact: SPDT
