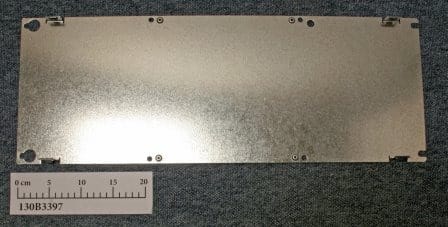

Danfoss Backplate – To Suit FC102 22-30kW IP20/55 – 130B3397

Back plate IP21/Type 1, IP55/Type 12, B2

FC 300 back cover for the devices in IP21 / 55 Housing size B2

Product details

Gross weight	1.318 Kilogram
Net weight	1.195 Kilogram

EAN	5710107608621

DrivePro category

Spare Part

Options

Enclosure-related options

Compatibility

Here you can see how the product is compatible with others and in what capacity, such as if it is an accessory or spare part etc.

ACCESSORIES FC 100 SERIES

Spare part – Enclosure

E21 E55

Frame Size

B2

ACCESSORIES FC 103 SERIES

Enclosure

IP21 / Type 1 IP55 / Type 12

Frame Size

B2

ACCESSORIES FC 200 SERIES

Frame Size

B2

ACCESSORIES FC 300 SERIES

Frame Size

B2

ACCESSORIES for FC-321

Frame Size

B2

SPARE PARTS FC 100 SERIES

Spare part – Enclosure

P21 P55

Frame Size

B2

SPARE PARTS FC 103 SERIES

Enclosure

IP21 / Type 1 Backplate IP55 / Type12 Backplate

Frame Size

B2

SPARE PARTS FC 200 SERIES

Spare part – Enclosure

P21 P55

Frame SizeB2

SPARE PARTS FC 300 SERIES

Enclosure

IP21 / Type 1 Backplate IP55 / Type12 Backplate

Frame Size

B2

Download the PDF file below
Danfoss_Dimensional_Drawing_MCAD_FC_B2_IP55_Back plate
