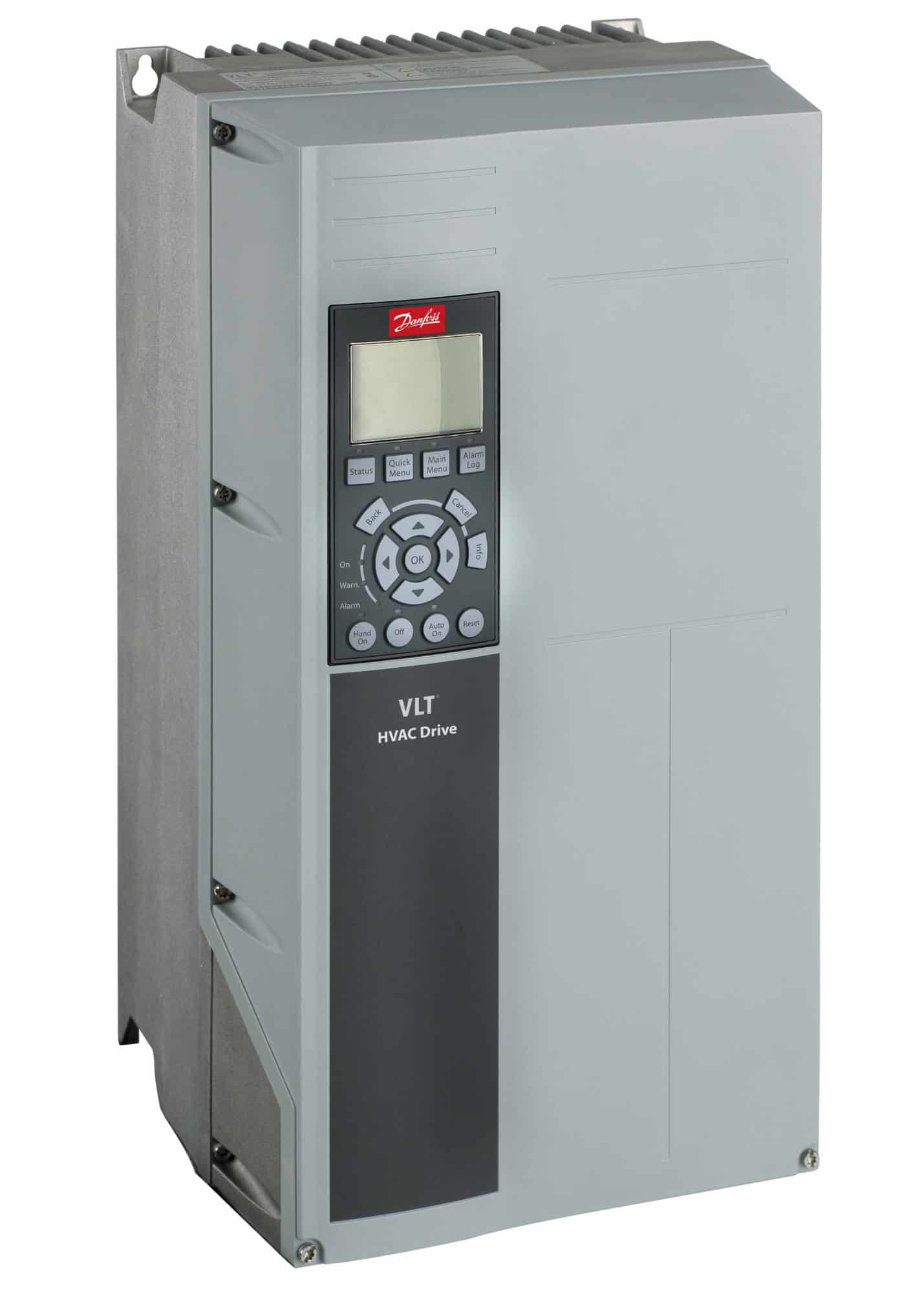

Danfoss VLT HVAC Drive FC-102 – 139B9317 – 15KW IP66 Inverter Drive, H3 Filter
£2,250.00
Danfoss VLT HVAC Drive
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
Danfoss VLT® HVAC Drive FC-102 Drive is dedicated to ventilation, heating, and refrigeration applications.
With a wide range of powerful standard and optional features, the Drive provides the lowest overall cost of ownership.
Product details
| Gross weight | 24.71 Kilogram | ||
| Net weight | 21.09 Kilogram | ||
| Volume | 105.71 Liter | ||
| EAN | 5702427383296 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® HVAC Drive FC- | |
| Series | 102 | 102 | |
| Power Rating | P15K | (P15K) 15 KW / 20 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 – 480 VAC | |
| Enclosure | E66 | (E66) IP66 / NEMA 4X | |
| RFI Filter | H3 | (H3) RFI Class A1/B (C1) | |
| Brake – Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | X | Not coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | B1 | B1 | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Typecode Part 1 | FC-102P15KT4E66H3XGX | ||
| Typecode Part 2 | XXXSXXXXAXBXCXXXXDX | ||
| Power 110% (NO) [KW] | 15 | 15 | |
| Height [mm] | 494,0 | 494,0 | |
| Width w/ no C options [mm] | 243,0 | 243,0 | |
| Depth [mm] | 261,0 | 261,0 | |
| Depth with Option A/B [mm] | 261,0 | 261,0 | |
| kVA | 22.2 | 22.2 | |
| Power Loss NO [W] | 392 | 392 | |
| Power Loss NO [W] | 392 | 392 | |
| Continuous Current (NO) [A] | 32 | 32 | |
| Intermittent Current (NO) [A] | 35.2 | 35.2 | |
| Continuous Current (NO) [A] | 27 | 27 | |
| Intermittent Current (NO) [A] | 29.7 | 29.7 | |
| Calculated Gross Weight [kg] | 24.71 | ||
| Calculated Net Weight [kg] | 21.09 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-102P15KT4E66H3XGX | ||
| Modelcode02 | XXXSXXXXAXBXCXXXXDX | ||
| Recommended Plant | ERR01 | ERR01 |
Download the PDF file below
Additional information
| Weight | 25 kg |
|---|
