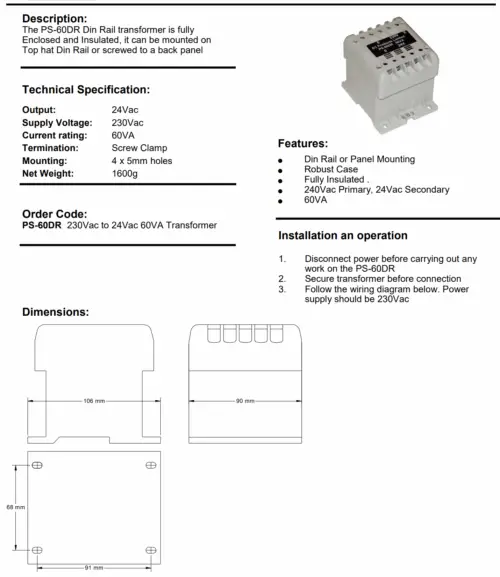

Din Rail Transformer 60VA 230VAC to 24VAC

The PS-60DR Din Rail transformer is fully enclosed and insulated. It can be mounted on Top hat Din Rail, or screwed to a back panel.

Specification

Output:                                  24Vac
Supply Voltage:                 230Vac
Current Rating:                 60VA
Termination:                       Screw Clamp
Mounting:                             4 x 5mm holes

Information

Transformers are rated in volt-amps (VA). It defines the limit of the magnetising field inside the transformer. If this limit is exceeded, the transformer saturates and ceases to function correctly. This is especially important when the transformer has multiple secondary windings.
To determine the required transformer VA, multiply the secondary voltage by the required amperes:
For example, VA=Volts x Amperes or 24V x 1.2 amperes = 28.8 VA.
To determine the maximum transformer current, divide the transformer VA by the transformer secondary voltage.
For example, A=VA /  Volts or 28.8 VA / 24 Volts = 1.2 A.
