Duct Humidity 2% & Temperature Sensor, selectable output
£121.00
This type of humidity and temperature sensor uses state-of-the-art single-chip multi-sensor technology. The sensing element is a polymer sensing chip with built-in electronics to give an accurate signal and a fast response. This product has been designed with state-of-the-art electronics and built in the UK to ensure excellent reliability and quality.
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |

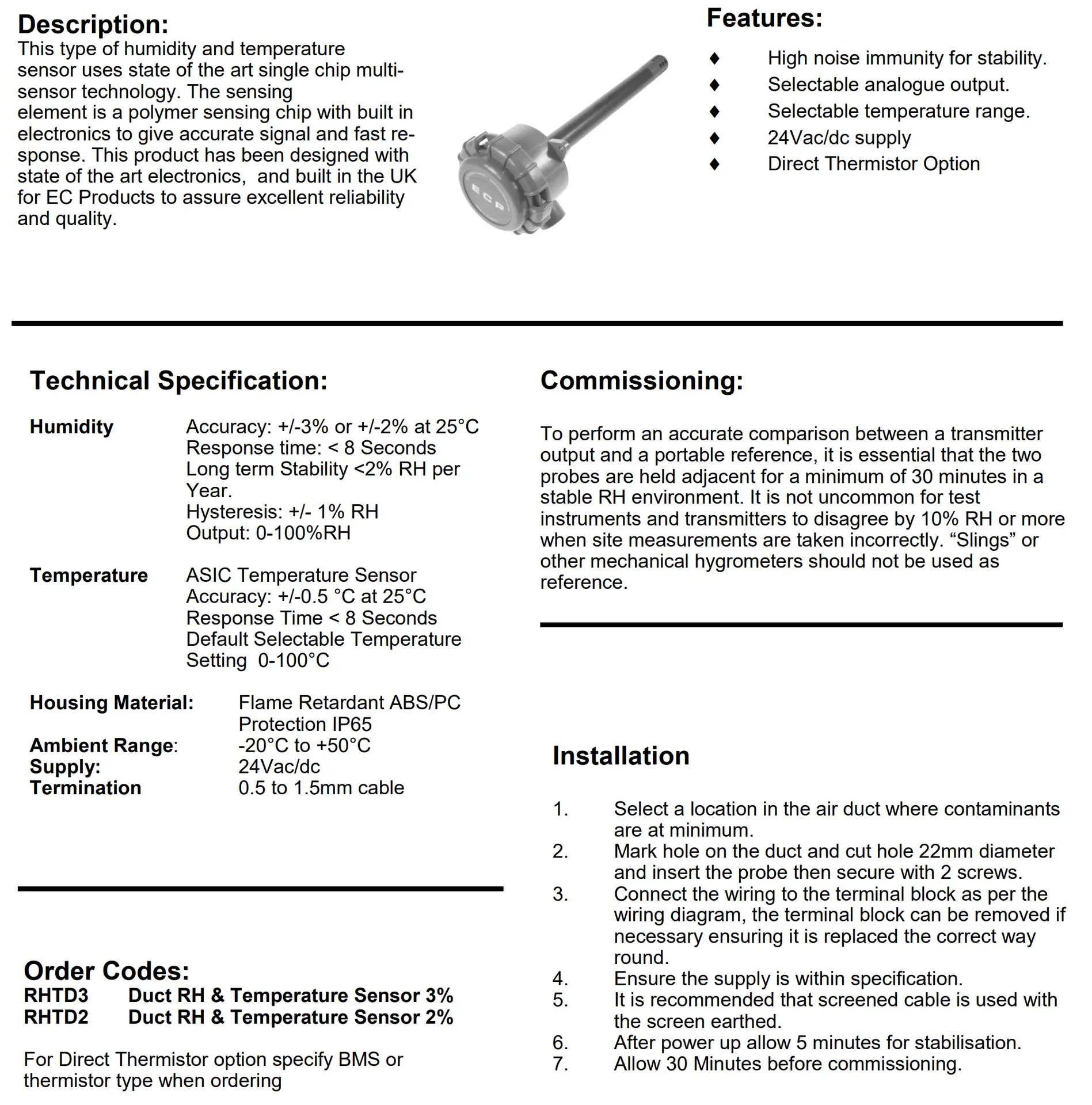

Description
This type of humidity and temperature sensor uses state-of-the-art single-chip multi-sensor technology. The sensing element is a polymer chip with built-in electronics, providing an accurate signal and a fast response. This product has been designed with state-of-the-art electronics and built in the UK to ensure excellent reliability and quality.
Specification
Humidity…
Accuracy:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â +/-2% at 25ËšC
Response Time:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â < 8 seconds
Long-term Stability:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â < 2% RH per year
Hysteresis:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â +/- 1% RH
Output:                                  0 – 100% RH
Temperature…
ASIC Temp. Sensor Accuracy:Â Â Â Â Â Â Â Â Â +/-0.5ËšC at 25ËšC
Response Time:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â < 8 seconds
Default Selectable Temp. Setting:     0 – 100˚C
Housing Material:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Flame retardant ABS/PC
Protection:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â IP65
Ambient Range:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â -20ËšC to +50ËšC
Supply:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 24Vac/dc (+/-10%)
Additional information
| Weight | 0.129 kg |
|---|---|
| Dimensions | 8.6 × 8.6 × 1.45 cm |
| Sensor Type | RHTD2-10K3, RHTD2-TAC, RHTD2-10K4, RHTD2-H, RHTD2-3K, RHTD2-P, RHTD2-100, RHTD2-LAN, RHTD2-1K, RHTD2-SAT |
