Emergency Lighting

Emergency Light Socket PCB Board Only

Name: Maxking Limited
Price range: $

£3.00

Just a PCB only to build your own Emergency Safety Socket.

⚡ Electrical Calculator

Voltage (V) Current (A)

🔌 Cable Size Reference

🌬 Unit Converter

🔋 Transformer VA & MCB Calculator

Transformer Voltage (V) Transformer Current (A) OR Enter Transformer VA

📊 Reference Guide

Current (A)	Cable Size (mm²)
6	1
6-12	1.5
12-25	2.5
25-32	4
32-40	6
40-64	10
You must consider Ambient Temperature, Location and Thermal insulation in contact with cable.

Category: Emergency Lighting Tags: bright socket, Emergency Lighting, Emergency Lighting socket Brand: HVAC

Description

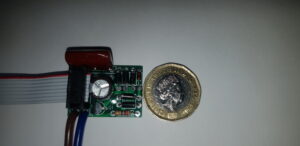

Just a PCB only to build your own Emergency Safety Socket.

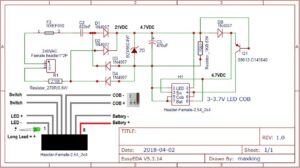

The appliance operates similarly to the existing socket until it detects that power is removed, at which point it automatically switches to battery operation and illuminates the bright light-emitting diodes.
The rechargeable battery enables the light-emitting diodes to remain on independently for up to 3 hours or until power returns.

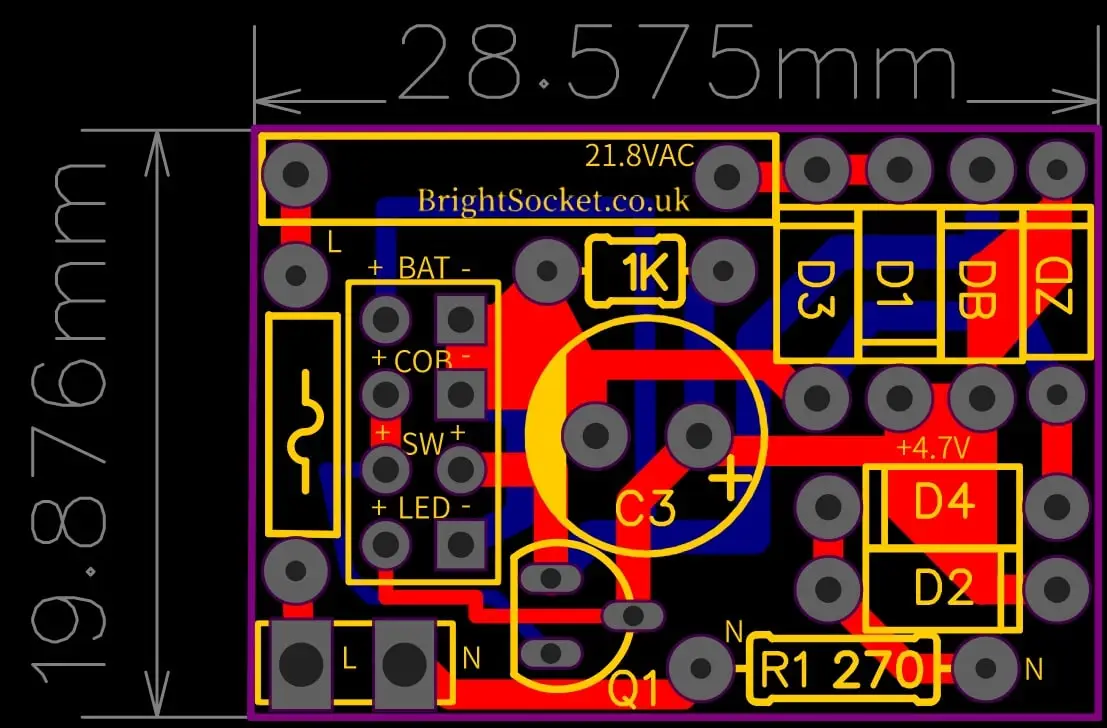

PCB Board size is 27mm Long x 20mm Wide by 1.5mm thick.

Additional information

Types	CSW-NO-ASD, CSW-NO-ASD2, CSW-NO-ASP, CSW-NO-ASP2, CSW-NO-FSD, CSW-NO-FSP
