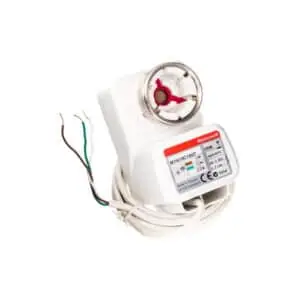

FCU 24VAC Honeywell Linear Actuator M7410C1007

Name: Maxking Limited
Price range: $

£90.00

Electrothermal Actuators are for use with the VFX range of Fan Coil valves and are used in heating, cooling, and air conditioning systems.

Voltage (V) Current (A)

Transformer Voltage (V) Transformer Current (A) OR Enter Transformer VA

Current (A)	Cable Size (mm²)
6	1
6-12	1.5
12-25	2.5
25-32	4
32-40	6
40-64	10
You must consider Ambient Temperature, Location and Thermal insulation in contact with cable.

Small electric actuator for individual room control that provides floating or modulating control of V5852, V5862 two-way or V5853, V5863 three-way valves.
Electrical actuator floating control
Protection class: IP43/IP42
Position indication: with red indicator
End switch function/capacity: SPDT; capacity 1 A inductive, 5 A resistive
For M7410 models, the valve cap can be used for manual adjustment. For models with 2 end switches, the 2nd switch is adjustable
Control input signal: 3-pt
Stroke: 6,5mm
Runtime: 150s
180 N; for valve series: V5078B, V5822A, V5823A/C, V5832A, V5833A/C, VSM
Stem force: 180N
Power supply: 24Vac
Manual operation: no
End switches: no
Cable length: 1,5m
Part Number: M7410C1007
Brand: Honeywell
gtin: 5056485100730
MPN: M7410C1007
Package Dimensions: 75mm x 110mm x 110mm
