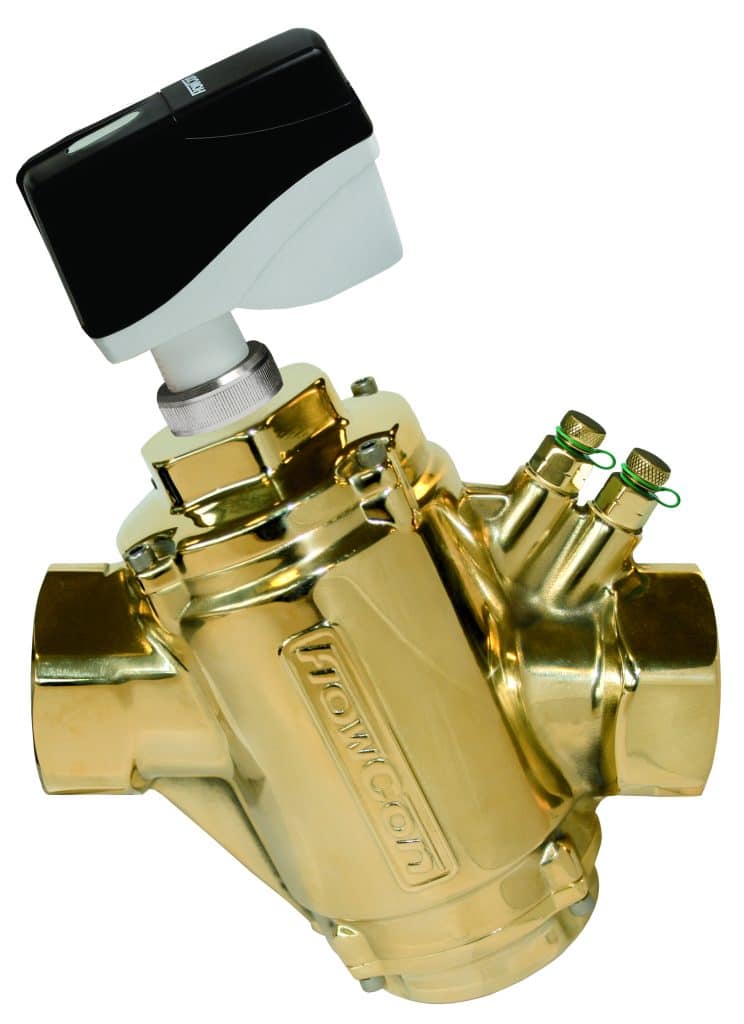

FlowCon 2″ female threaded Forged Brass Green.3 fitted with two PT Plugs

FlowCon Green.3 – DN40-50 (1 1/2″-2″)

• Pressure independent balancing and control valves (PIBCV/PICV)
• Total authority
• Choice of actuator:
  • FH actuators: electrical 0(2)-10V modulating, 2-position or 3-point-floating, optional failsafe and optional BACnet or Modbus
• Adjustable to 41 different maximum flow rate limits, stepless
• Brass housing or ductile iron housing
• Optional pressure/temperature plugs
• Fixed female-by-female threaded

Pressure rate
PN25

Sizes
Green.3: DN40-50 (1 1/2″-2″)

ΔP-range
16-800 kPaD (2.3-116 psid)

Flow rate
0.528-3.79 l/sec (8.36-60.0 GPM)

For almost a quarter of a century, FlowCon has been devoted to the development and production of high-quality dynamic valves for balancing of HVAC systems. Striving to offer the perfect product selection, we are proud to introduce the new FlowCon Green PICV, which accommodates the growing “value for money” demand in the global PICV market.

By working closely with our partners and HVAC industry stakeholders, FlowCon has developed a higher-capacity PICV that meets the increased requirements for energy efficiency, accuracy, and compactness to ensure optimal comfort at a minimum initial and operational cost.

FlowCon Green. 3 builds on the pioneering knowledge acquired by FlowCon International over the past 25 years, where the first generation of PICVs was released. The concepts seen in this specific release are known from the popular FlowCon E-Just and FlowCon Green range, meaning that the technologies used in the Green.3 valve is well known and proven in HVAC systems for more than 20 years.

The launch of the Green.3 valve range is supported by a range of custom actuators intended for the specific valve ensuring optimal valve operation. The actuators naturally support the common control signals and can be integrated directly with standard BMS systems.

FlowCon Green.3 offers:

• Versions:
  – DN40 fixed female/female
  – DN50 fixed female/female
• A Compact one-unit PICV:
  (Housing and regulator are combined)
• 41 different settings.
• A true PICV containing;
  – 100% valve authority guaranteed. Eliminates valve authority calculations.
  – Fast response time to pressure fluctuations increases system stability.
  – Real pressure independence at all valve and actuator positions.
  – Full stroke modulation regardless of maximum flow setting.
• Material:

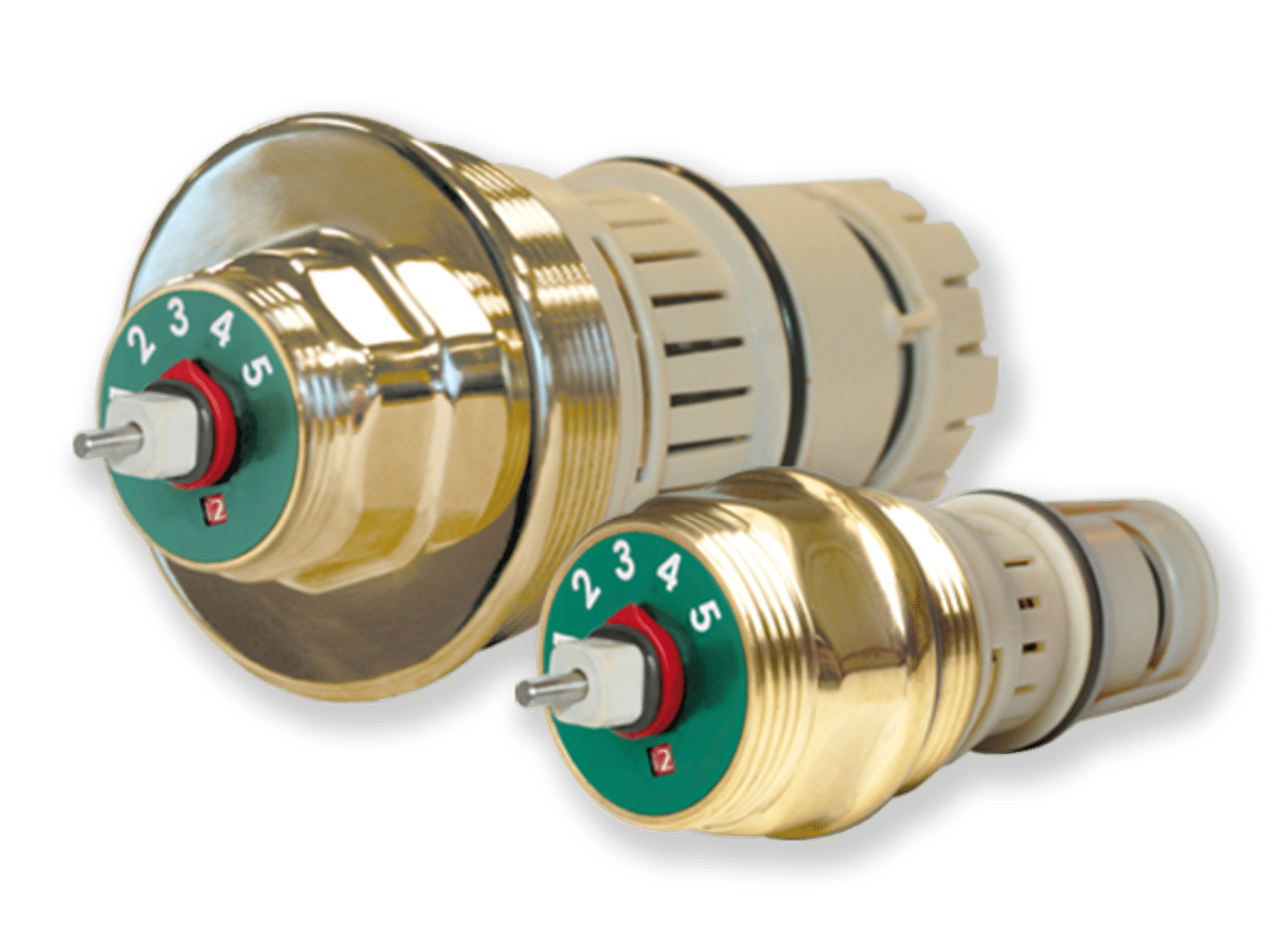

  – Flow regulation unit (internal): PPS, POM.
  – Metal components (internal): Stainless steel.
  – O-rings and seat: EPDM.
  – Housing: Forged brass ASTM CuZn40Pb2.
• Maximum close-off pressure: 600 kPaD.
• Maximum operational ΔP: 400 kPaD.

Wide range of thermal, electric, and Smart Actuators available
