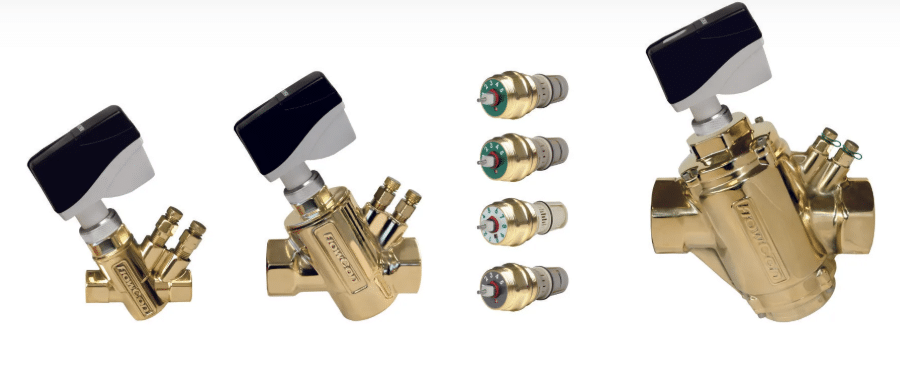

FlowCon Green.0/1/1HF/2 – DN15-32 (1/2″-1 1/4″)

• Pressure independent balancing and control valves (PIBCV/PICV)
• Total authority
• Choice of actuator:
  • FN actuators: electrical 0(2)-10V modulating, 3-point floating or 2-position, optional BACnet or Modbus
  • FNP actuators: electrical 0(2)-10V modulating
  • FNR actuators: electrical 0-10V modulating, 3-point floating or 2-position
  • FNJ actuators: electrical 0-10V modulating, failsafe
  • FT actuators: thermal 0-10V modulating or ON/OFF, standard failsafe
• Adjustable to 41 different maximum flow rate limits, stepless
• DZR brass housing DN15-32 (1/2”-1 1/4”) and  brass housing DN25 (1”)
• Optional pressure/temperature plugs
• Fixed female-by-female threaded

Pressure rate
PN25

Sizes
Green.0/1/1HF: 20 mm (3/4″) insert, applicable for DN15/20/25 (1/2″, 3/4″, 1″) valves
Green.2: 40 mm (1 1/2″) insert, applicable for DN25/32 (1″, 1 1/4″) valves

ΔP-range
16-800 kPaD (2.3-116 psid)

Flow rate
0.0103-1.29 l/sec (0.163-20.4 GPM)

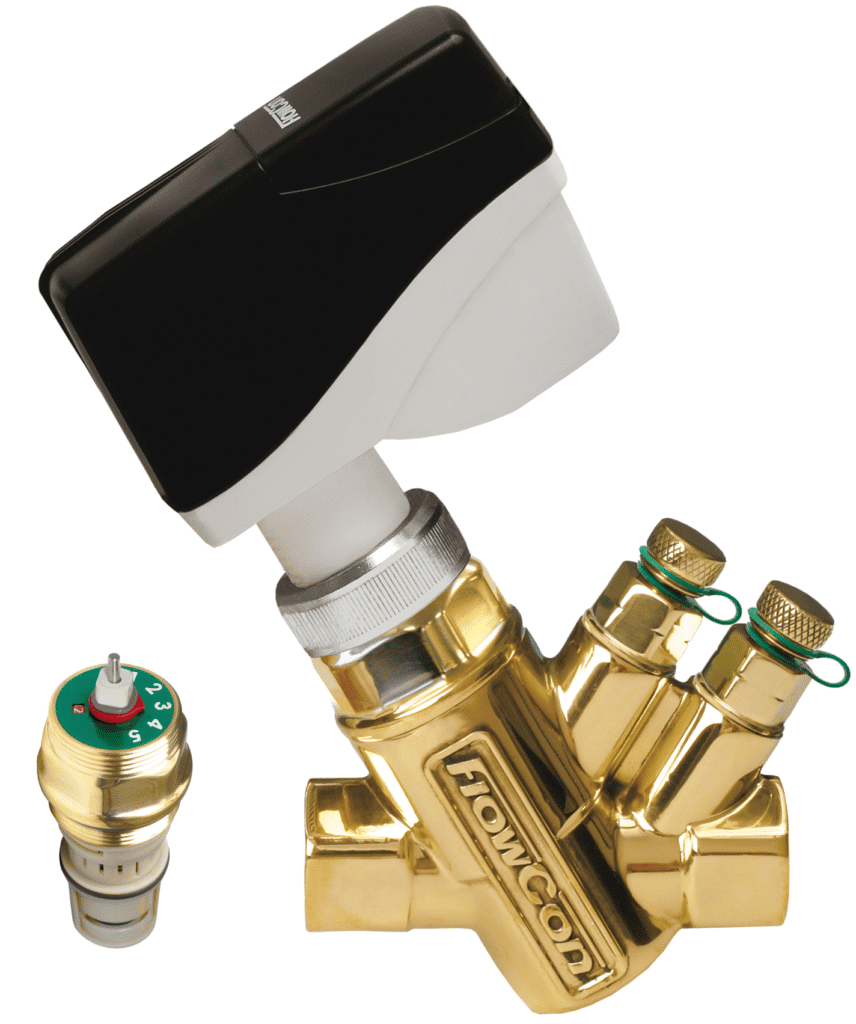

FlowCon ½” – 1½” Green Pressure Independent Control Valves – Linear Control

State-of-the-art two-way modulating Pressure Independent Control Valve with easily removable insert.
Widely used in the UK in FCU applications.
Flow rates from 0.0103 l/s.
The High Flow PICV Insert enables flow rates up to 0.5 l/s in the DN15 and DN20 valves and flow rates up to 0.736 l/s in the DN25 valve, which is beneficial for installations with space limitations.

Pressure rating: 25 Bar
Temperature rating: -20°C/120°C
Sizes: ½”- 1½” Female threaded & union

Body Materials:

• Forged Brass ASTM CuZn40Pb2
• DZR

Elastomers: EPDM
Removable Insert Flow rate range:

• Green.0 0.0103 – 0.160 l/s
• Green.1 0.0178 – 0.308 l/s
• Green.1HF 0.172 – 0.736 l/s
• Green.2 0.240 – 1.290 l/s

Wide range of thermal, electric, and Smart Actuators available
