FlowCon Electric 3 Point Floating/ON-OFF
£96.00
FlowCon FH Actuator 24V electric modulating, 2-position/3-point floating
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description

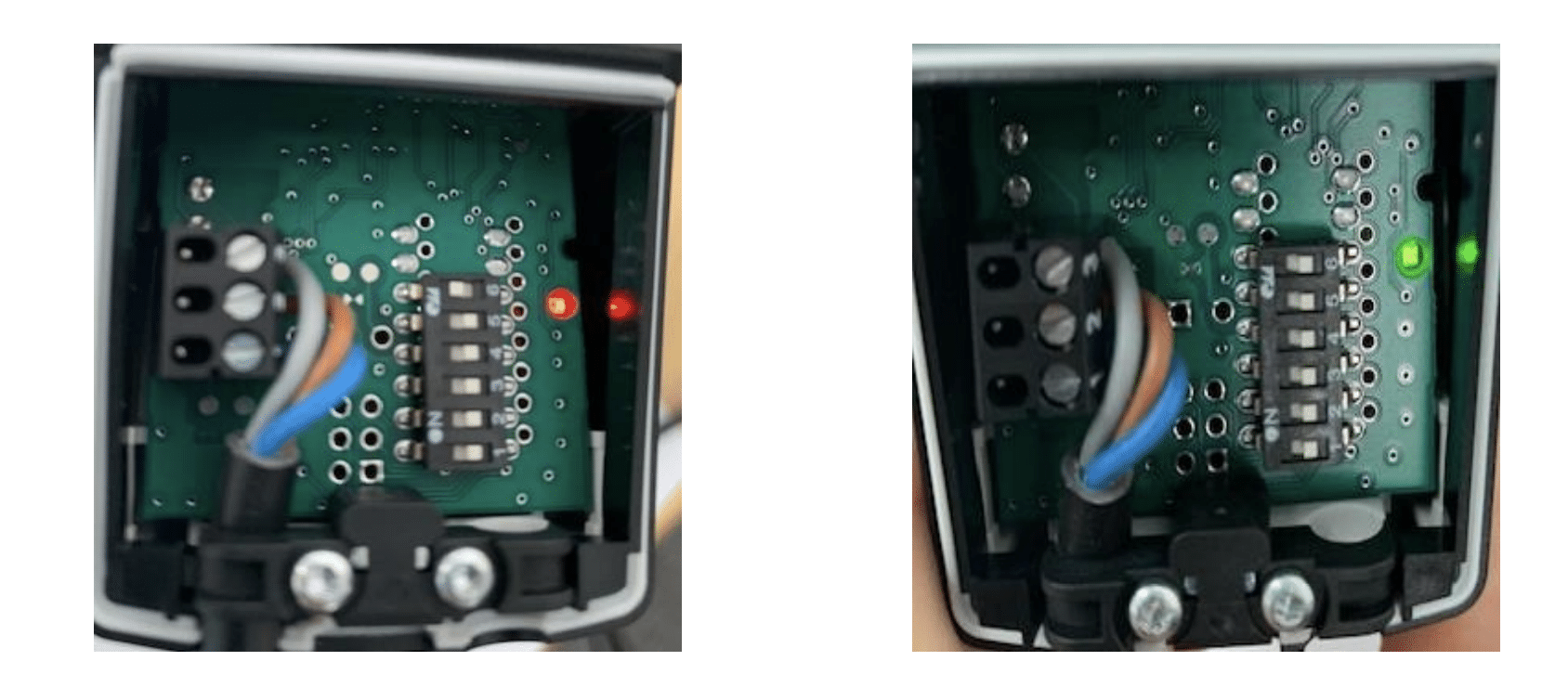

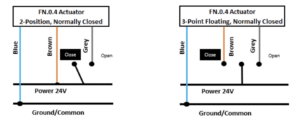

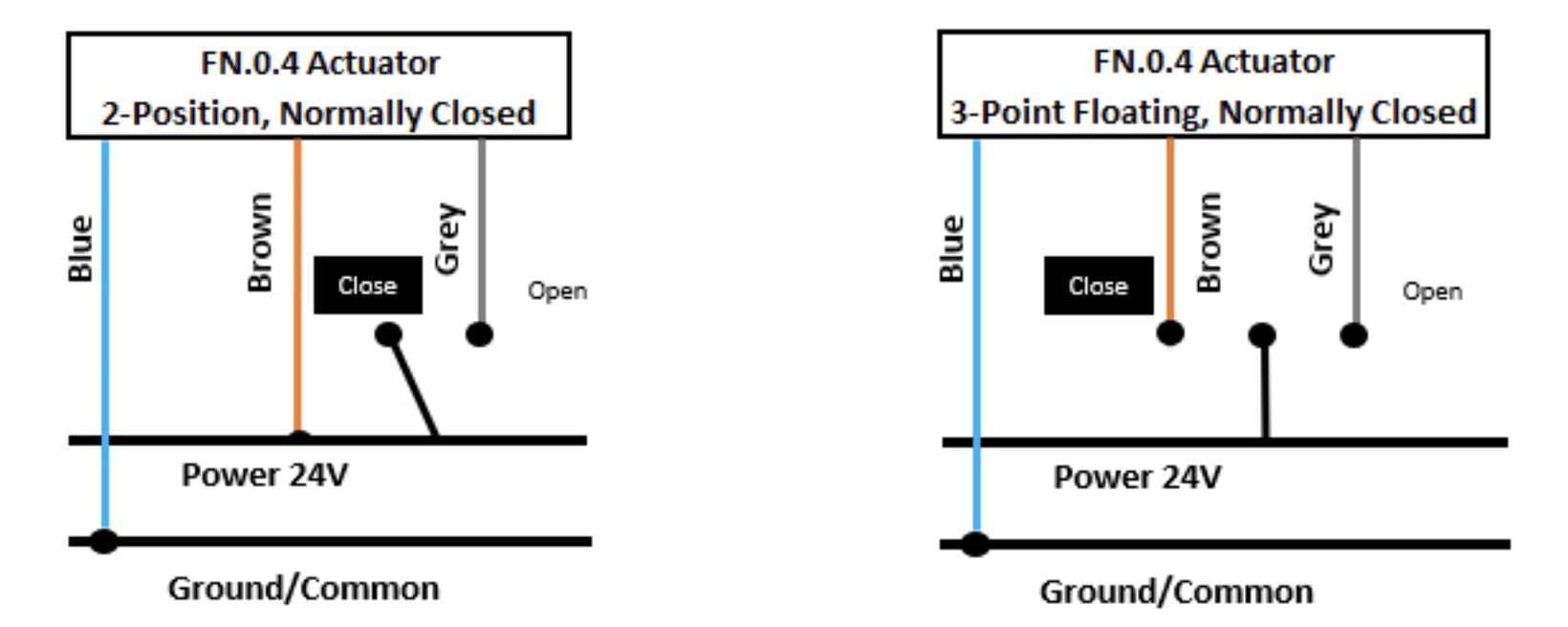

The FN.0.4 Electric Actuator is designed for 24V AC/DC ±10%, 50/60Hz supply with a Digital 3-Point floating and ON/OFF signal and is self-calibrating.
The Actuator is compatible with the following inserts in the Green
The FN.0.4 actuator is designed to fit the following FlowCon PICVs
• Green.EQ – 3.4mm stroke – closing time 75 sec
• Green.0 – 3.4 mm stroke – closing time 75 sec
• Green.1 – 3.4 mm stroke – closing time 75 sec
• Green.1HF – 3.4 mm stroke – closing time 75 sec
• Green.2 – 5.2 mm stroke – closing time 114.4 sec
FlowCon_Actuator_Selection_Matrix
Additional information
| Weight | 0.35 kg |
|---|---|
| Dimensions | 8.65 × 4.35 × 8 cm |
