FlowCon FN0.2 BUS SMART Actuator

FlowCon FN/FH-BUS actuators for small FlowCon PICV | Modbus and BACnet

With the new versions added to the FlowCon FN-actuators and FH-actuators, bus communication is a fact. This will allow all small, compact FlowCon PICVs to communicate with the BMS over the bus.

• Choice of either BACnet or Modbus
• 100% authority, fully pressure independent
• Easy commissioning
• Continuous monitoring (flow, temperature, and energy)
• Fast reaction in case of errors (error detection: leak by, blocking or other faults)
• Life statistics
• Remote setup

FlowCon FH for FlowCon Green

• For FlowCon Green.3
• Electrical actuators, 24V

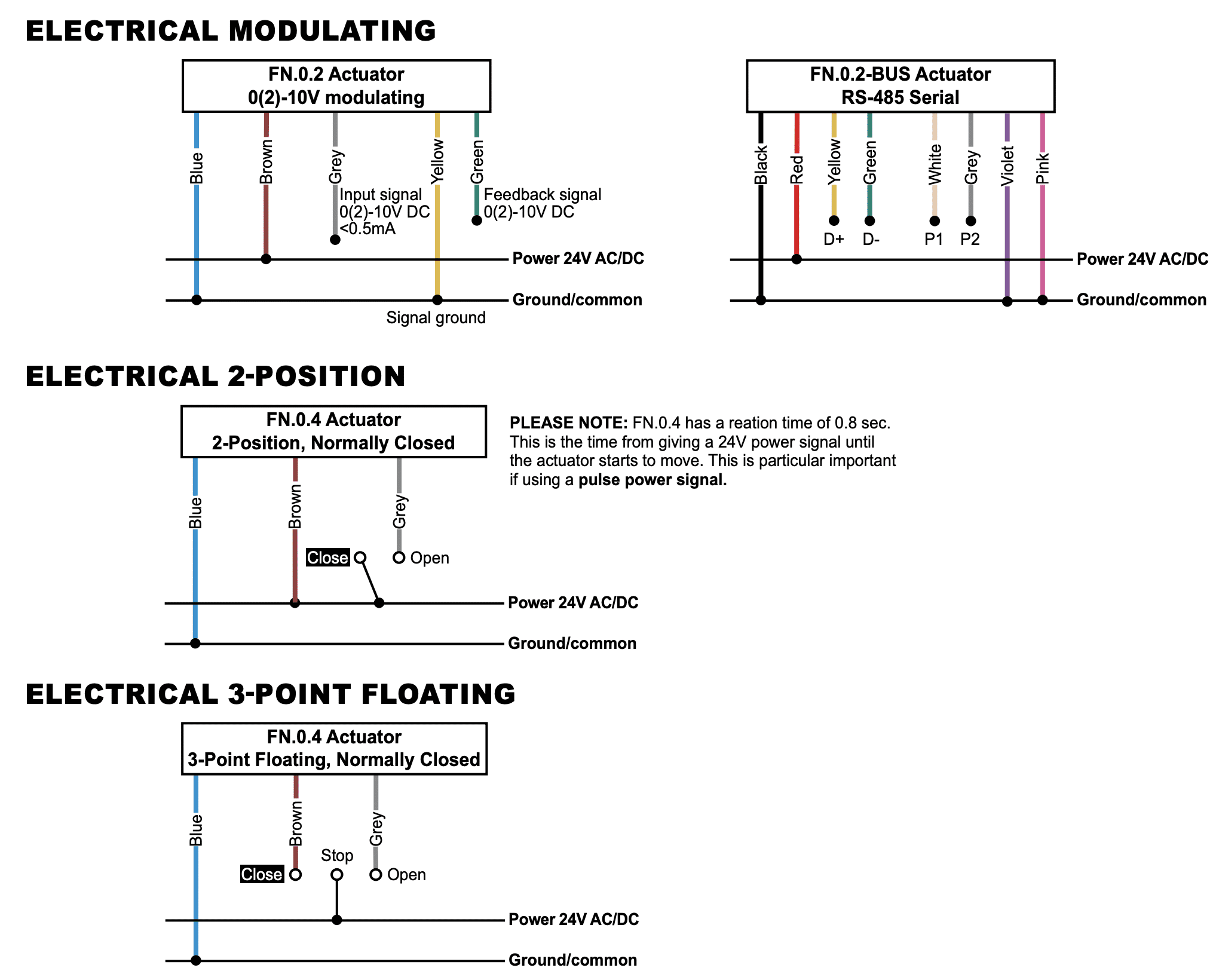

• 0(2)-10V modulating, 3-point floating or 2-position
• Standard with feedback
• Standard with override
• Settable control characteristics (linear control or equal percentage control)
• Settable control direction (NO/NC)
• Optional failsafe (NO/NC)
• Optional bus, BACnet or Modbus
• Auto cycle available
• Position indicator
• IP54, 360º

The Actuator is compatible with the following inserts in the Green

• Green.EQ – 3.4mm stroke – closing time 75 sec
• Green.0 – 3.4 mm stroke – closing time 75 sec
• Green.1 – 3.4 mm stroke – closing time 75 sec
• Green.1HF – 3.4 mm stroke – closing time 75 sec
• Green.2 – 5.2 mm stroke – closing time 114.4 sec
• Green.3 – 5.2 mm stroke – closing time 114.4 sec

The Actuator is either ModBUS. or BACnet, 50/60HZ with fail-in-place failsafe, manual override and position indicator.
