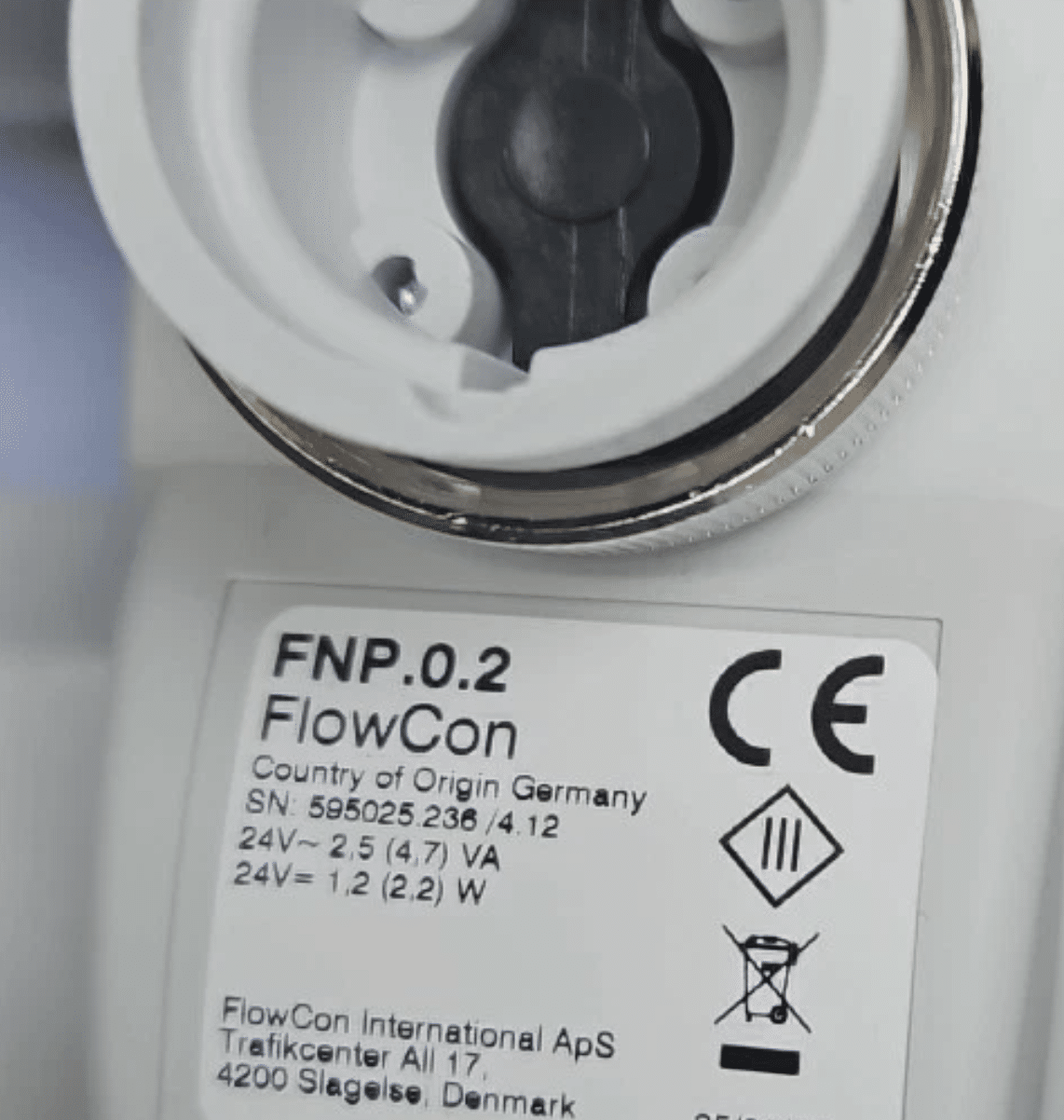

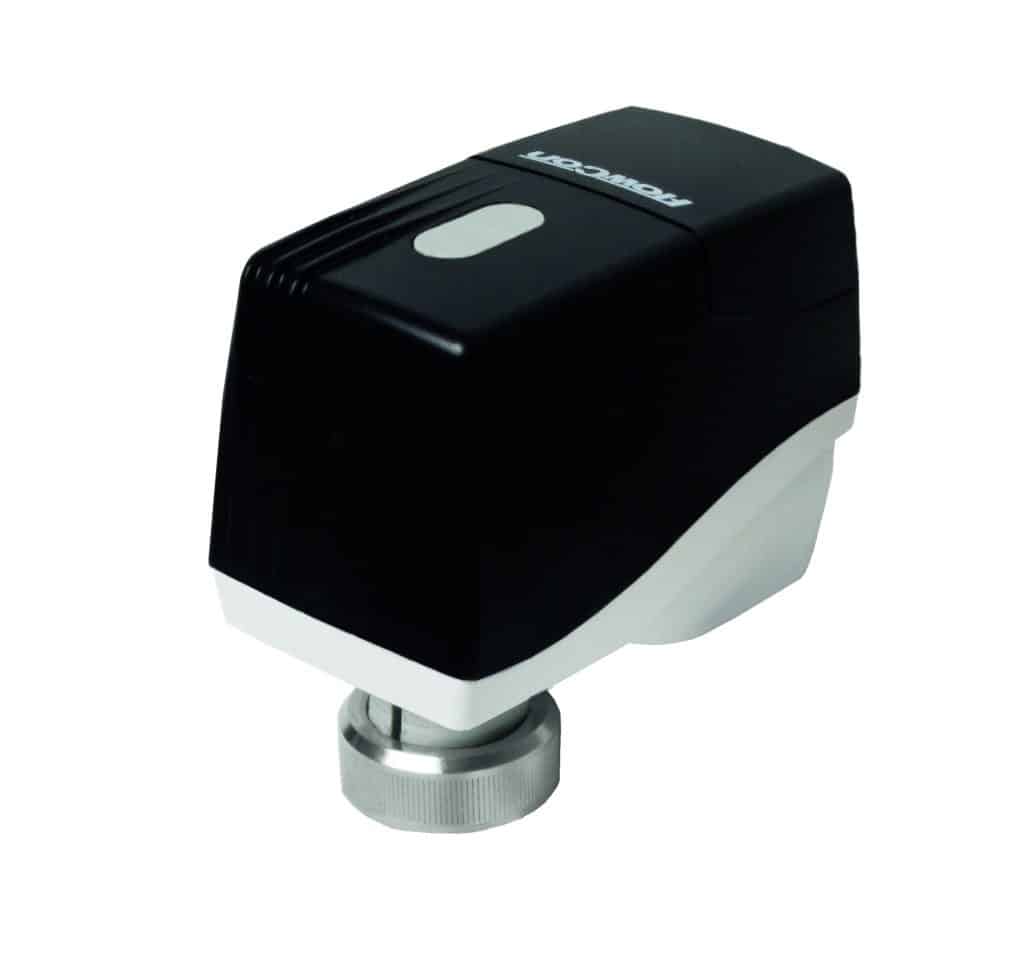

FlowCon FNP.0.2 Actuator

FlowCon introduces a simplified project version of the FN modulating actuator.
The actuator FNP.0.2 – will match the FlowCon Green. 0/1/1HF/2 valves.

The new FlowCon FNP.0.2-actuator holds the following features:

• Simplest choice – What you see is what you get:
  Pure 24V modulation and no feedback.

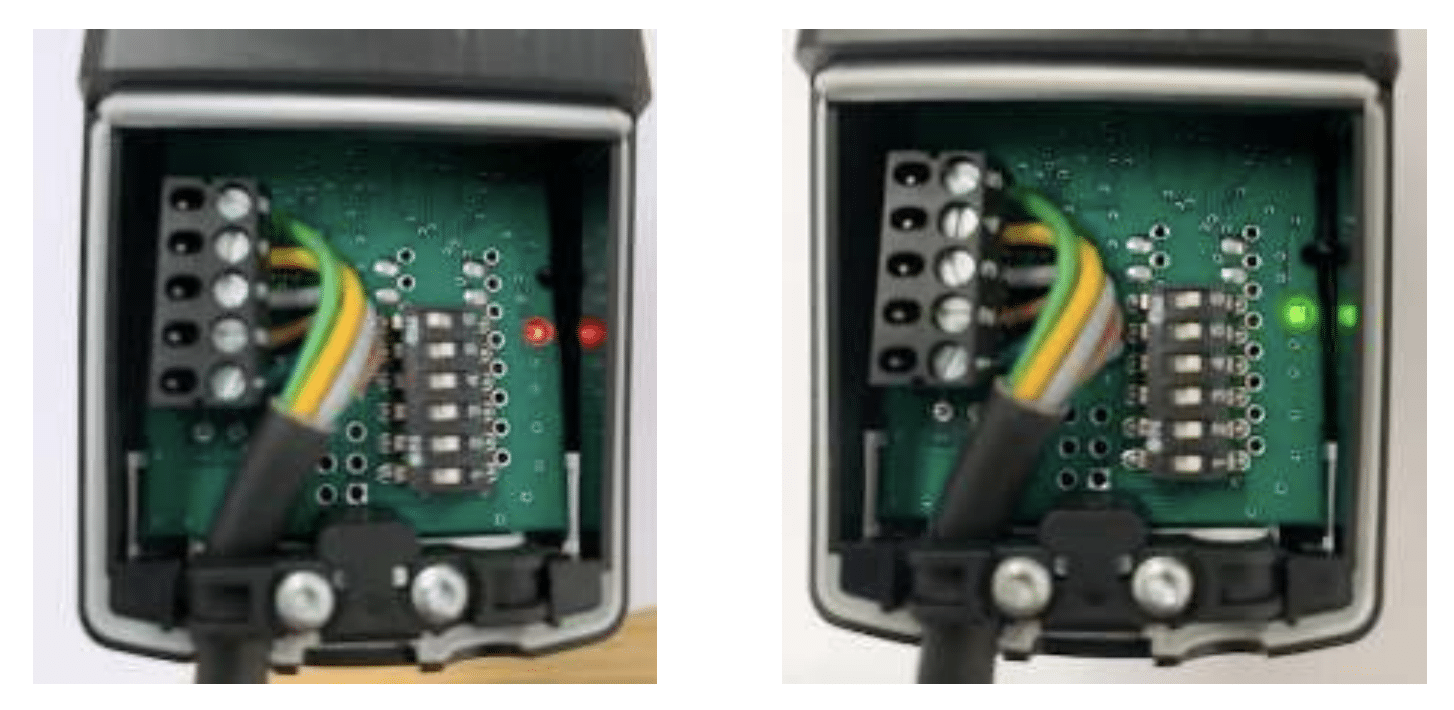

• Flexible solution – Selectable control characteristic:
  Linear flow or an equal percentage is selected directly on the actuator. Hence, the control characteristic of the valve may be determined late, even after installation.
• Easy installation – Upside-down:
  The new version allows upside-down installation, enabling 360° installation.
• Built-in safety – Electrical override:
  The new version includes an integrated electrical override function. Automatic recalibration will always follow the override’s deactivation.
• Fast run time:
  Normal operating runtime is 22 sec/mm.

The Actuator is compatible with the following inserts in the Green

• Green.EQ – 3.4mm stroke – closing time 75 sec
• Green.0 – 3.4 mm stroke – closing time 75 sec
• Green.1 – 3.4 mm stroke – closing time 75 sec
• Green.1HF – 3.4 mm stroke – closing time 75 sec
• Green.2 – 5.2 mm stroke – closing time 114.4 sec
