Fan Coil Valves, FlowCon
FlowCon SM actuator: 24V electrical, 0(2)-10V, 0(4)-20mA, 2-position or 3-point floating w/feedback signal, failsafe and BACnet
£1,438.00
FlowCon SM actuator: 24V electrical, 0(2)-10V, 0(4)-20mA, 2-position or 3-point floating w/feedback signal, failsafe and BACnet
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description

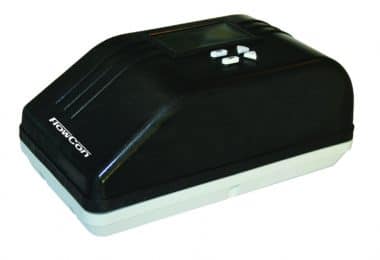

FlowCon SM Electrical Actuators

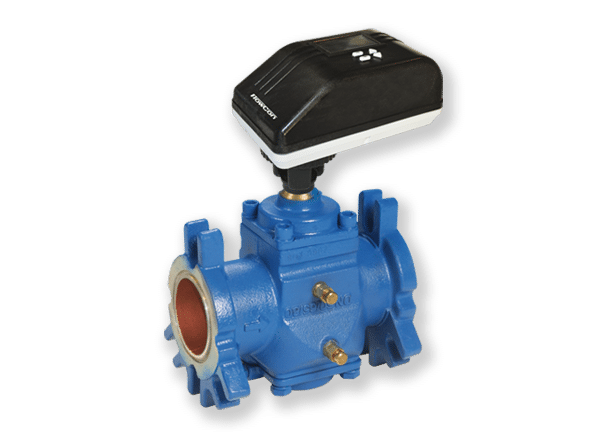

- Fit on the SM flanged PICV range
- Supply Voltage 22-26V AC, 50/60Hz or 28-32V DC
- Bi-directional synchronous motor
- Linear flow or equal percentage
- Manual override
- Ambient temperature -10°C – +50°C
- IP54 including upside-down mounting
- Specifications differ by model. Please consult Technical Notes for details
FlowCon SM.0.0.0.3 and SM.0.0.0.4 Actuators
The new generation of  SM actuators holds a large portion of improvements, hereunder;
- New design which eliminates access to internal components.
- Programming interface directly on the actuator as a replacement for DIP switches.
- IP rating increased to 54 (Dust and splashing protected), allowing upside-down installation.
- Introduction of automatic flushing mode for easy system startup.
- Increased information on the display allows verification of the supply signal, feedback signal, actual flow rate, battery condition, and alarm.
- Easy-to-use snap coupling for fast mounting and demounting.
The new version of the SM.0.0.0.3 and SM.0.0.0.4 actuators can be mounted on existing valves if a connection piece is mounted on the existing brackets.
FlowCon-Actuators-Selection-Matrix-01.2023
Additional information
| Weight | 0.35 kg |
|---|---|
| Dimensions | 8.65 × 4.35 × 8 cm |
