Four Pole Base Mount Door Interlock Isolator Body – 20A
£26.00

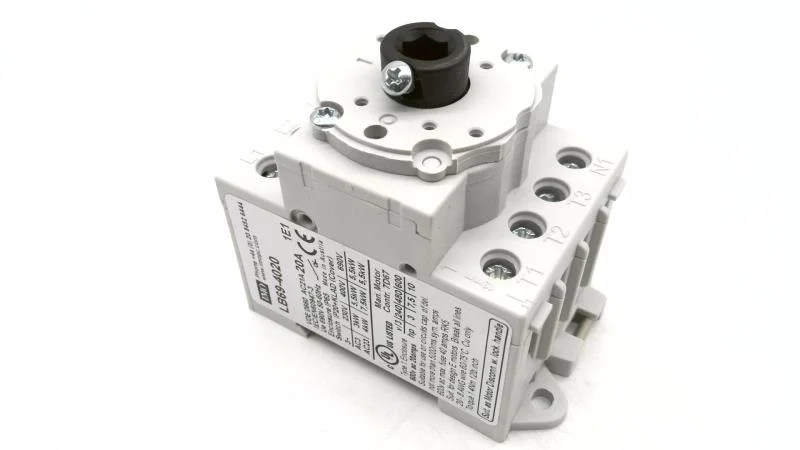

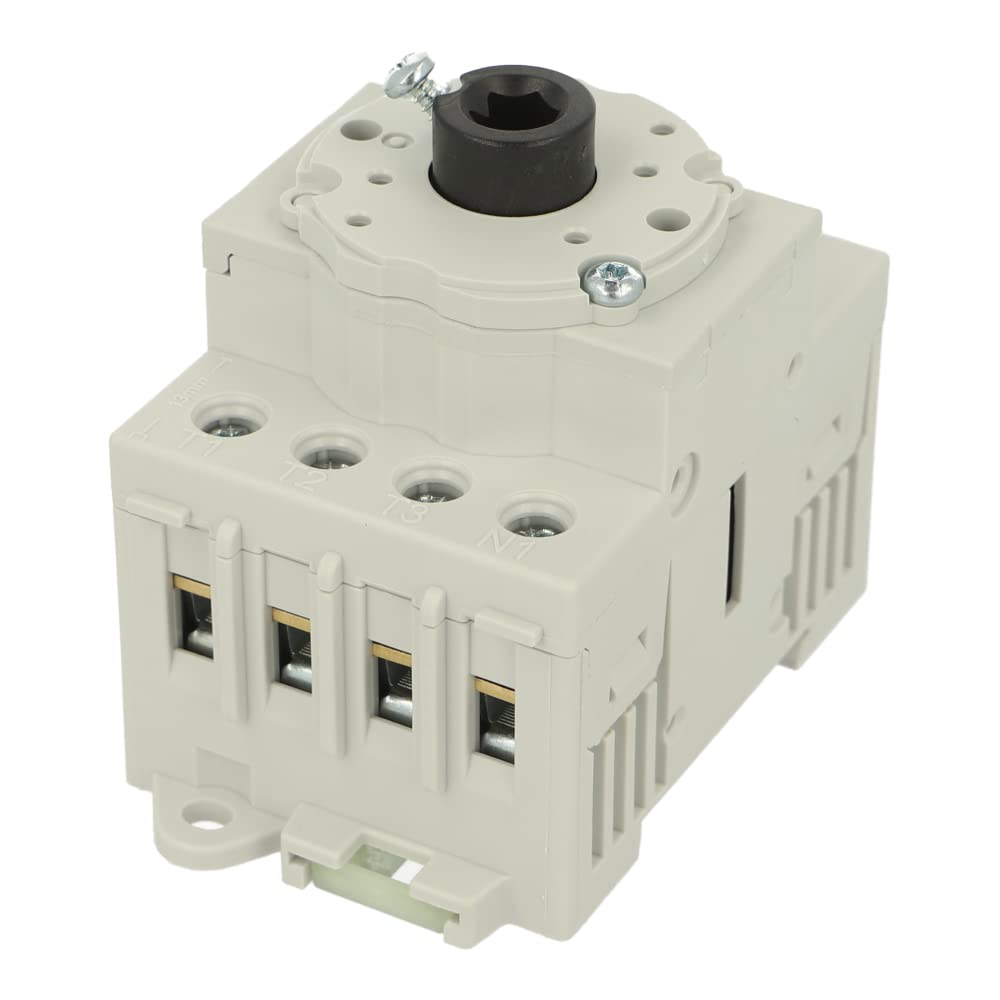

Four-Pole Base Mount Door Interlock Isolator Body – 20A
⚡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
For use with E69… Shafts and H69… Handles.
A range of door lock Isolators from IMO. Sizes are available from 20A to 100A. Isolator, Handle, and Shaft are supplied as separate parts.
Specification
Rated Thermal Current I: 20A
Rated Insulation Voltage U: 690V
Rated Operational Current I AC21A: 20A
Direct Switching of Single Motors 3×380-440V: 5.5kW
Cable Cross Sections: 0.5 – 10mm²
Size of Terminal Screw: M3.5
