Four Zone Water Leak Detection Module – 24Vac
£70.00 Exc. VAT Exc. VAT

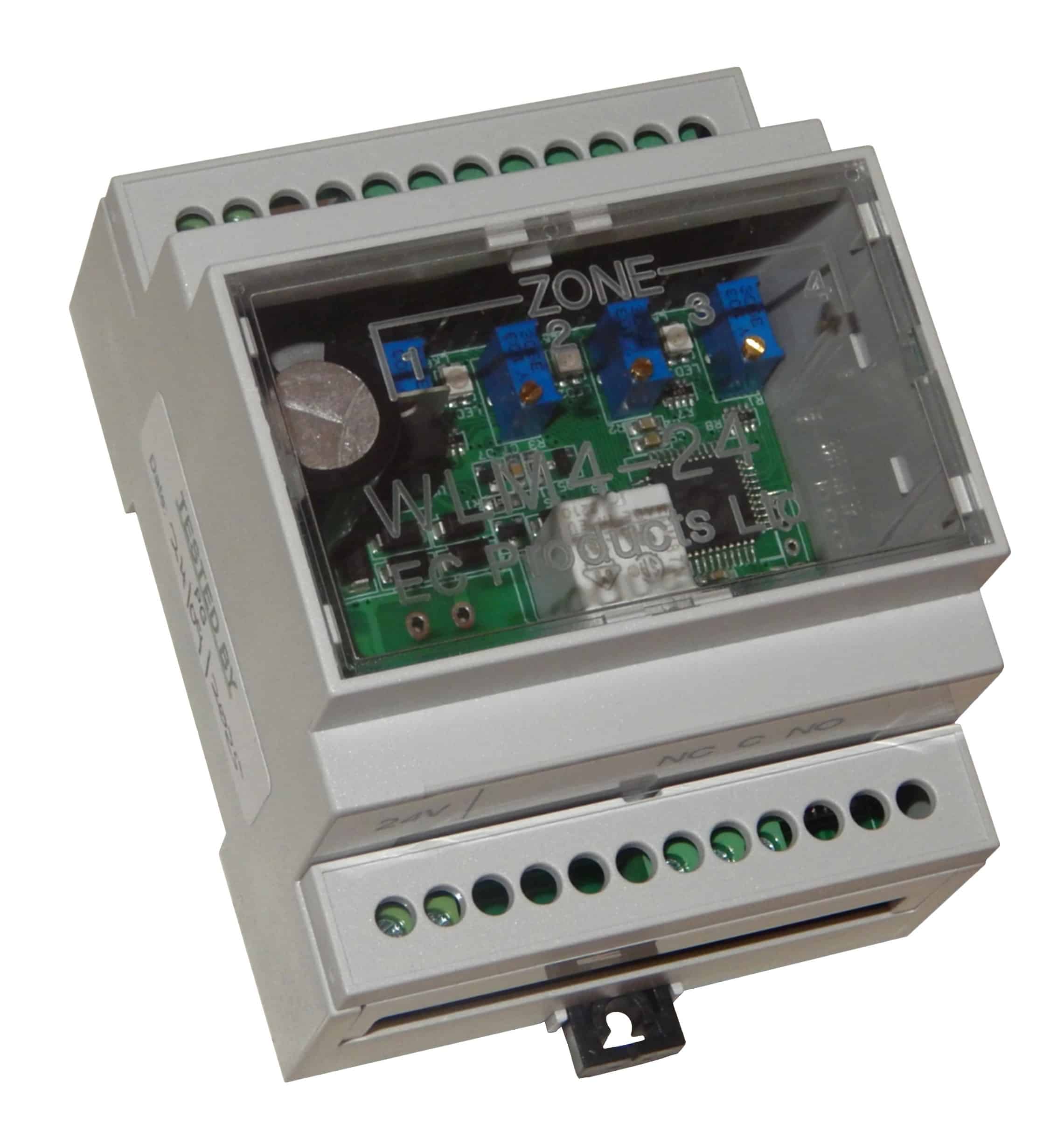

The WLM4-24 Leak detection module has 4 inputs with zone indication and 1 common output with fault indication.
Description
The WLM4-24 Leak detection module has 4 inputs with zone indication and 1 common output with fault indication.
There are DIN rail or wall mount options.
The WLM can be used with a combination of sensors.
For Enclosure please see CA-XSA-4W in the ‘electrical’ section.
WLM4-24-UKCA
Specification
Output:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 10Amp @ 230Vac volt free change over contact
Supply Voltage:Â Â Â Â Â Â Â Â 24Vac/dc +/- 10%
Max Sensor Length:Â Â Â Â 200 meters
Termination:           Rising clamp for 0.5 to 2.5mm² cable
Ambient:              -10 to +40°C
Dimensions:Â Â Â Â Â Â Â Â Â Â Â Â 70(W) x 60(D) x 90(H)mm
Order Codes:
WLM4-24 24Volt 4 Zone Leak Detection Module
WLM4-230 230Volt 4 Zone Leak Detection Module
CA-XSA-4W Wall Mount Case
Suitable Sensors:
WL- PS1 Point Sensor
WL- RS1 Rain Sensor
WL-CS – Cable Sensor
| Cable Length | 10 Meters, 15 Meters, 5 Meters |
|---|
