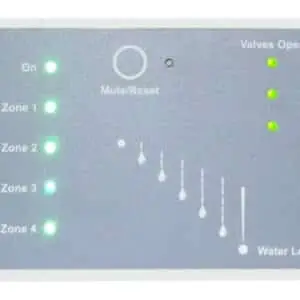

Four Zone Water Leak Detection Module and Valve Controller WLM-VC34
£156.00
Four Zone Water Leak Detection Module and Valve Controller WLM-VC34
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 6 | 1 |
| 6-12 | 1.5 |
| 12-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description

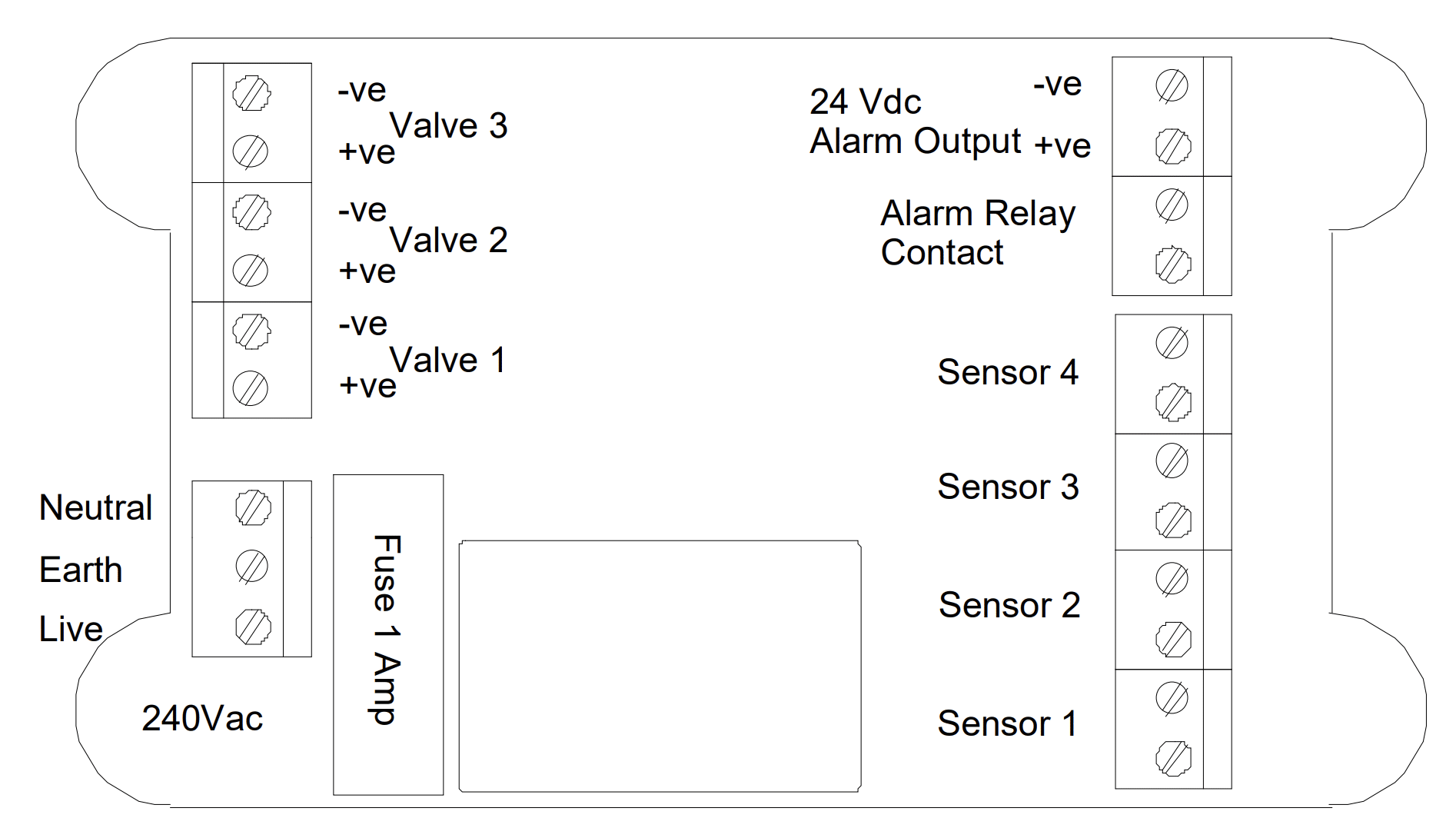

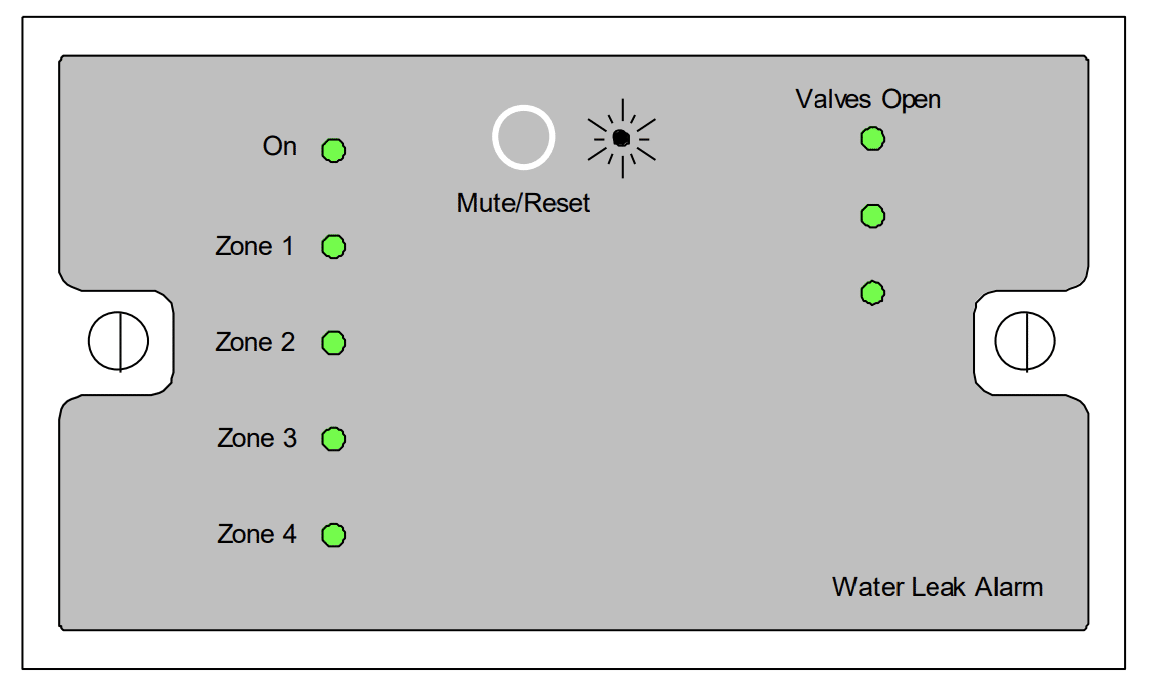

The WLM-VC leak detection module has up to 4 sensor inputs with zone indication, with a volt-free alarm and a 24 alarm output. This unit is designed to fit a standard 2-gang back box, allowing it to be flush or surface-mounted.
The WLM-VC can be used with up to 3 x 24Vdc actuated ball valves to isolate the supply water upon leak detection.
Specification
Supply Voltage:Â Â Â Â Â Â Â Â Â Â Â Â Â Â 230Vac – 50mA max.
Valve Outputs:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 3 x valve outputs 24Vdc
Sensors:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Supplied with 4
Alarm Outputs:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Volt-free contact N/O 500mA 24Vdc
Termination:                Rising clamp for 0.5 – 2.5mm² cable
Ambient Temperature:Â Â Â Â Â Â -10 to +40ËšC
Dimensions:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 146 x 86mm
