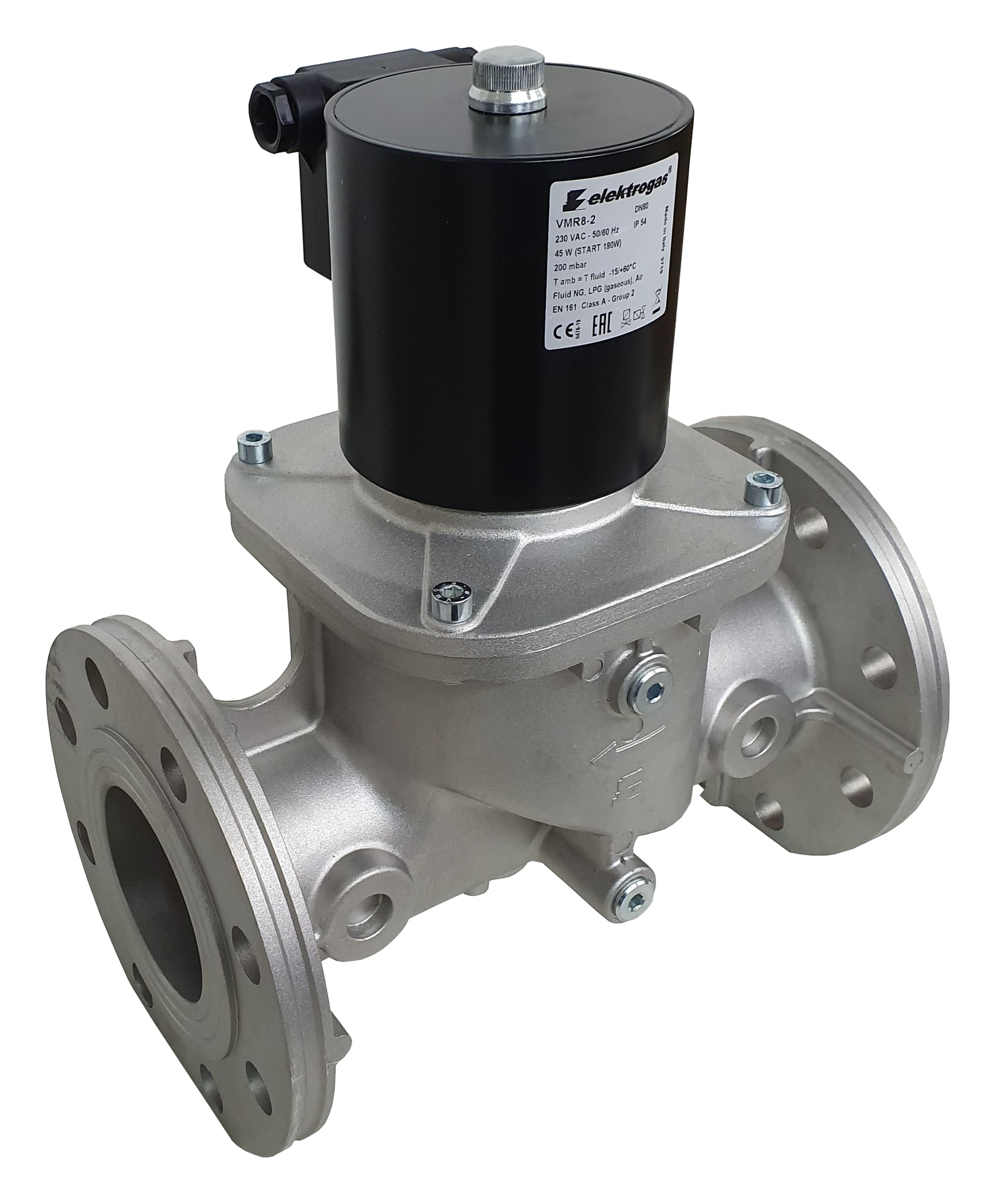

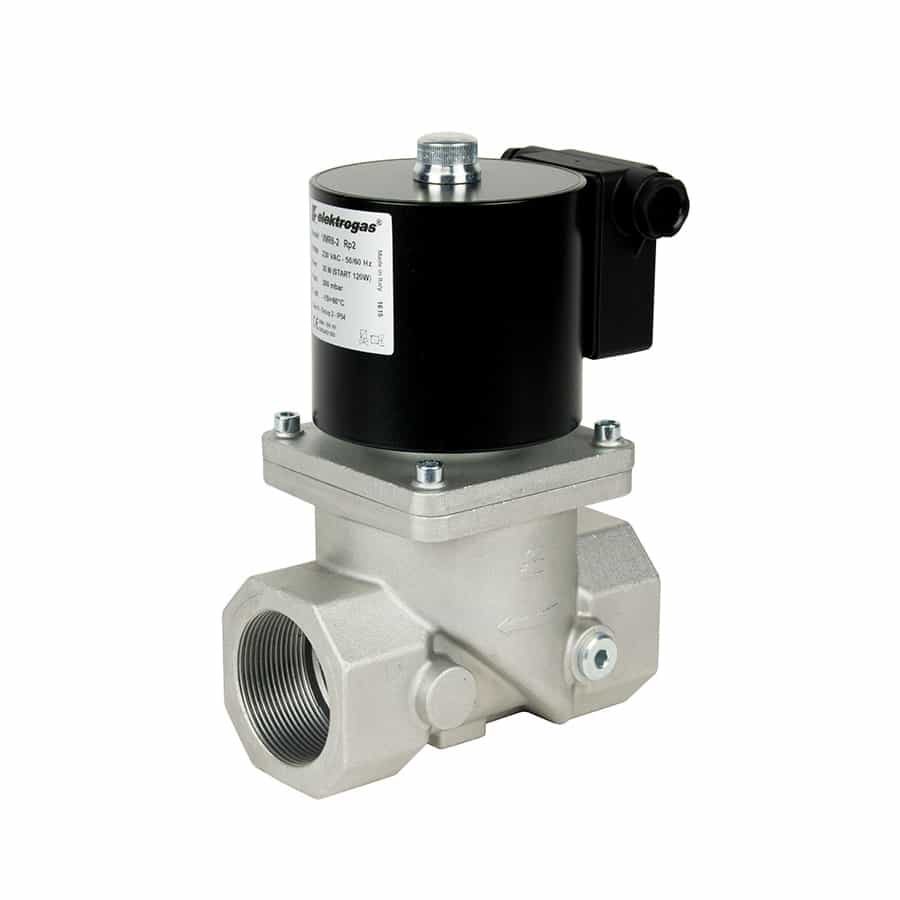

Gas Solenoid Valves – VMR-Type
Price range: £68.50 through £2,200.00
The VMR-type Gas Solenoid valve is a fast-opening, normally closed solenoid valve with auto-reset and a 230VAC supply.
âš¡ Electrical Calculator
🔌 Cable Size Reference
🌬 Unit Converter
🔋 Transformer VA & MCB Calculator
📊 Reference Guide
| Current (A) | Cable Size (mm²) |
|---|---|
| 12 | 1 |
| 16 | 1.5 |
| 20-25 | 2.5 |
| 25-32 | 4 |
| 32-40 | 6 |
| 40-64 | 10 |
| You must consider Ambient Temperature, Location and Thermal insulation in contact with cable. | |
Description
The VMR-type Gas Solenoid valve is a fast-opening, normally closed solenoid valve with auto-reset and a 230VAC supply.
When the coil is unenergized, the spring pushes on the disc to keep the gas passage closed. When the coil is powered, the valve opens. The valve rapidly shuts off when power is lost.
This type of device is suitable for gas and air blocking and adjusting controls in atmospheric burners or fan-assisted burners, industrial kilns, and all gas equipment that uses gas solenoid valves (qualified for continuous service – 100% ED).
Additional information
| Weight | N/A |
|---|---|
| Gas Solenoid Valve Size | 15mm, 20mm, 25mm, 32mm, 40mm, 50mm, 65mm, 80mm, 100mm, 125mm, 150mm |
