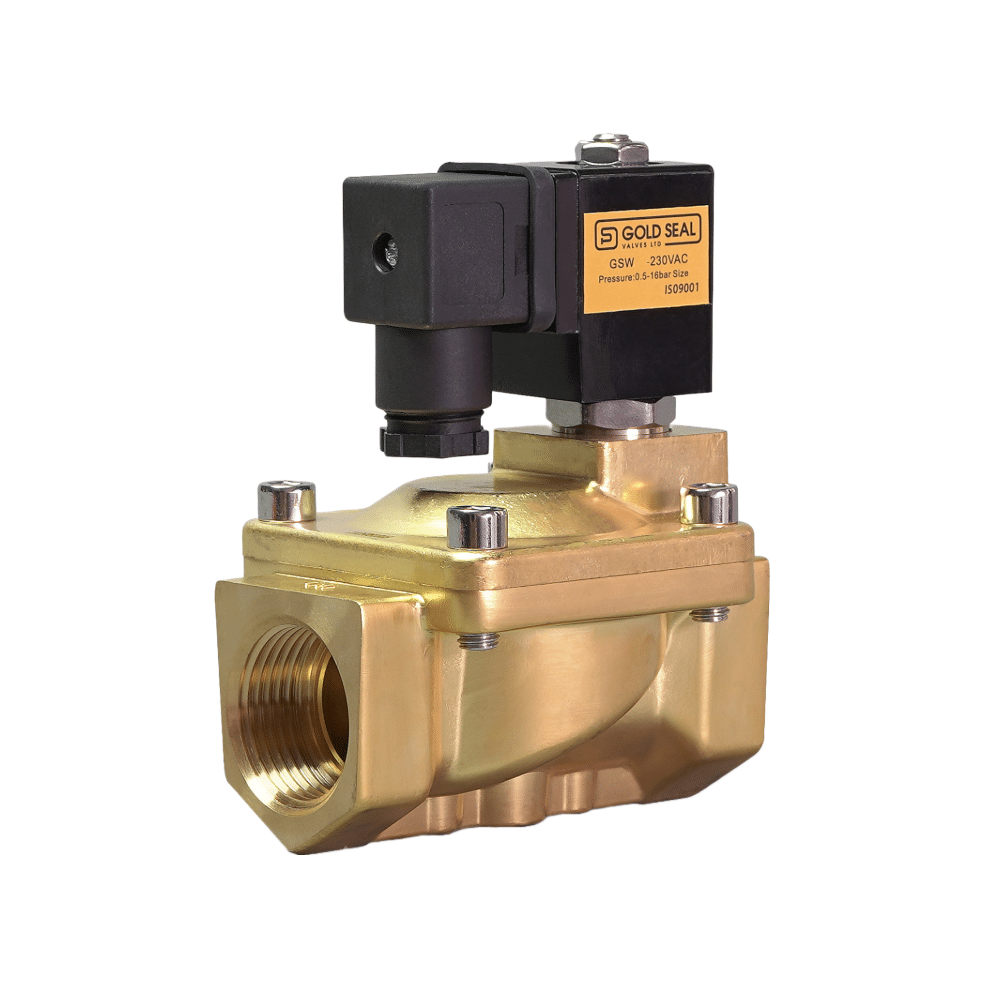

GoldSeal Water Solenoid Valves 1/2″ to 2″

Goldseal water solenoid valves are normally closed (N/C) and constructed with a durable brass body, two-way inlet and outlet ports. Available in 24VAC, 24VDC, or 230VAC-powered versions.

GoldSeal Water Solenoid Valves Installation Guide
The installation of GoldSeal water solenoid valves involves several critical steps to ensure proper functionality and longevity. Here are the key points to consider during installation:
Verify Parameters: Before installation, verify the product’s voltage, pressure, media, and temperature to ensure compatibility with the intended operating conditions.
Valve Positioning: Valves are best suited for horizontal pipework installation, with the coil positioned upright and never below the pipework’s centerline to mitigate the risk of water ingress from condensation.
Flow Direction: Ensure the flow direction aligns with the marked indicator on the valve body for proper operation.
Media Cleaning: Consider fitting a strainer upstream to shield against dirt ingress, especially in new pipework systems where flushing and cleaning are necessary to remove foreign bodies.
Electrical Connections: Electrical connections should be performed by qualified personnel and adhere to safety standards.
Torque Wrench: Use a torque wrench to avoid overtightening the bolt above the coil, which can damage the valve’s main shaft and void the warranty.

• Available in 230VAC, 24VAC or 24VDC
• WRAS approved.
• Coil rating – IP65
• Coil duty cycle – 100%
• Lead-free brass body for potable water
• EPDM diaphragm
