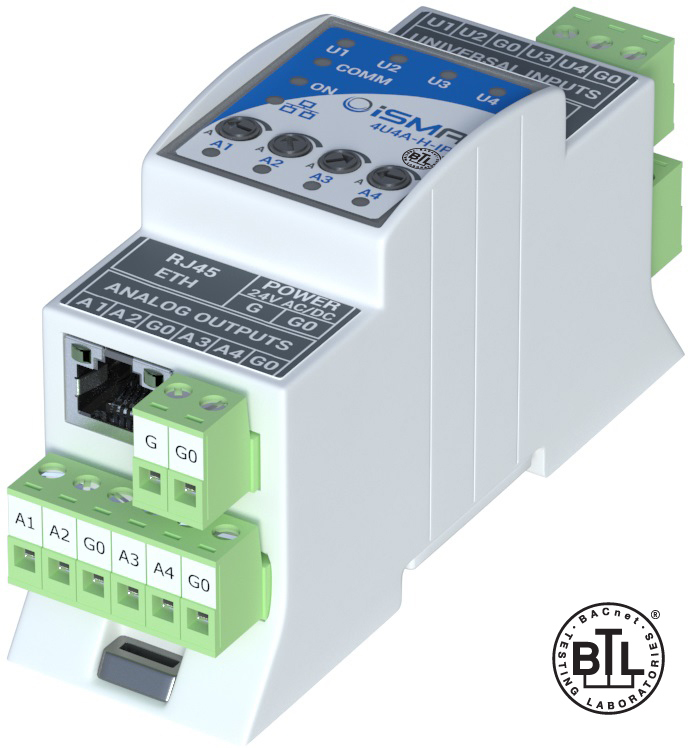

iSMA-B-4U4A-H-IP

MINI modules have been designed to complement the MIX series. Depending on the project needs, one of 7 different MINIs can be chosen; all inputs and outputs are unified among our products. One feature that makes these two product groups different is the hand-operated switches; in some applications, they are required. Moreover, all I/O modules have BTL, CE, and UL certificates.

Like the MIX modules IP (1x Ethernet), MINI are factory-equipped with the most popular open communication protocols: Modbus (TCP/IP) and BACnet (IP), which are selected using DIP switches. Rotary switches are used to set the module address, facilitating and accelerating system commissioning. Built-in mini-USB port allows initial configuration of the unit without an external power supply.

MINI I/O Modules with Ethernet have built-in Modbus Gateway TCP/IP to Modbus ASCII/RTU, enabling you to connect additional modules/devices that communicate via Modbus RS485.



iSMA-B-4U4A-H-IP is one of the most innovative and easy-to-set-up IO modules on the market. It works with either Bacnet or Modbus and can be operated manually. It has 4 Universal Inputs and 4 Analogue Outputs.

This module is fully compatible with any Modbus or Bacnet system, including the following: Tridium Jace3, Jace6, Jace8000Compatible, Trend IQ3, IQ4 Bacnet IPCompatible, Siemens PX range, Cylon Bacnet controllers, Schneider Electric StruxureWare Bacnet controllers, OSS NeOSS building management controller, Priva Blue ID, Distech EC Bos, DELL EDGE GATEWAY 5000, Compatible with any Honeywell Centraline Hawk, Delta Controls Compatible IO Modules

Inputs & Outputs:
4x Universal Inputs (4UI) All universal inputs have 16-bit resolution, which supports the following types of inputs:

• Temperature input support the following types of sensors: 10K3A1, 10K4A1, Carel 10K, 20K6A1, 2.2K3A1, 3K3A1, 30K6A1, SIE1, TAC1, SAT1, Pt1000, Ni1000 For sensor Pt1000 and Ni1000 use only 16bit resolution
• Voltage input 0-10VDC: input resistance 100k accuracy 0,1% measurement resolution 3mV@12bit and 1mV@16bit
• Current input 0-20mA -Required external resistor: 200, sold separately
• Resistive input 0-1000k: measurement resolution for 20k load 20@12bit and 1@16bit
• Dry contact input

4x Analog Outputs (4AO) All analog outputs are equipped with 12-bit ADC provides10 mV resolution and accuracy less than 0,5%. They support the following output types:

• Output 0-10V DC, maximum load up to 20mA
• PWM: 0,01Hz, 0,1Hz, 1Hz, 10Hz, 100Hz

Platform

• Cortex-M3

Communication

• Interface RS-485 half-duplex
• 1 x Fast Ethernet
• Up to 99 devices on the bus
• Protocols: MODBUS or BACnet
• Baud rate: 2400 to 115200 bps

Power supply

• 24V AC/DC

Housing

• Dimension: 35x110x62 mm.
• Construction: plastic, self-extinguishing (PC/ABS)
• DIN rail mounting (DIN EN 50022 norm)
• Cooling: internal air circulation

Environments

• Operating temperature: -10C to 50C
• Storage temperature: -40C to 85C
• Relative humidity: 5 to 95%, no condensation
• Ingress Protection Rating: IP40 for indoor installation
