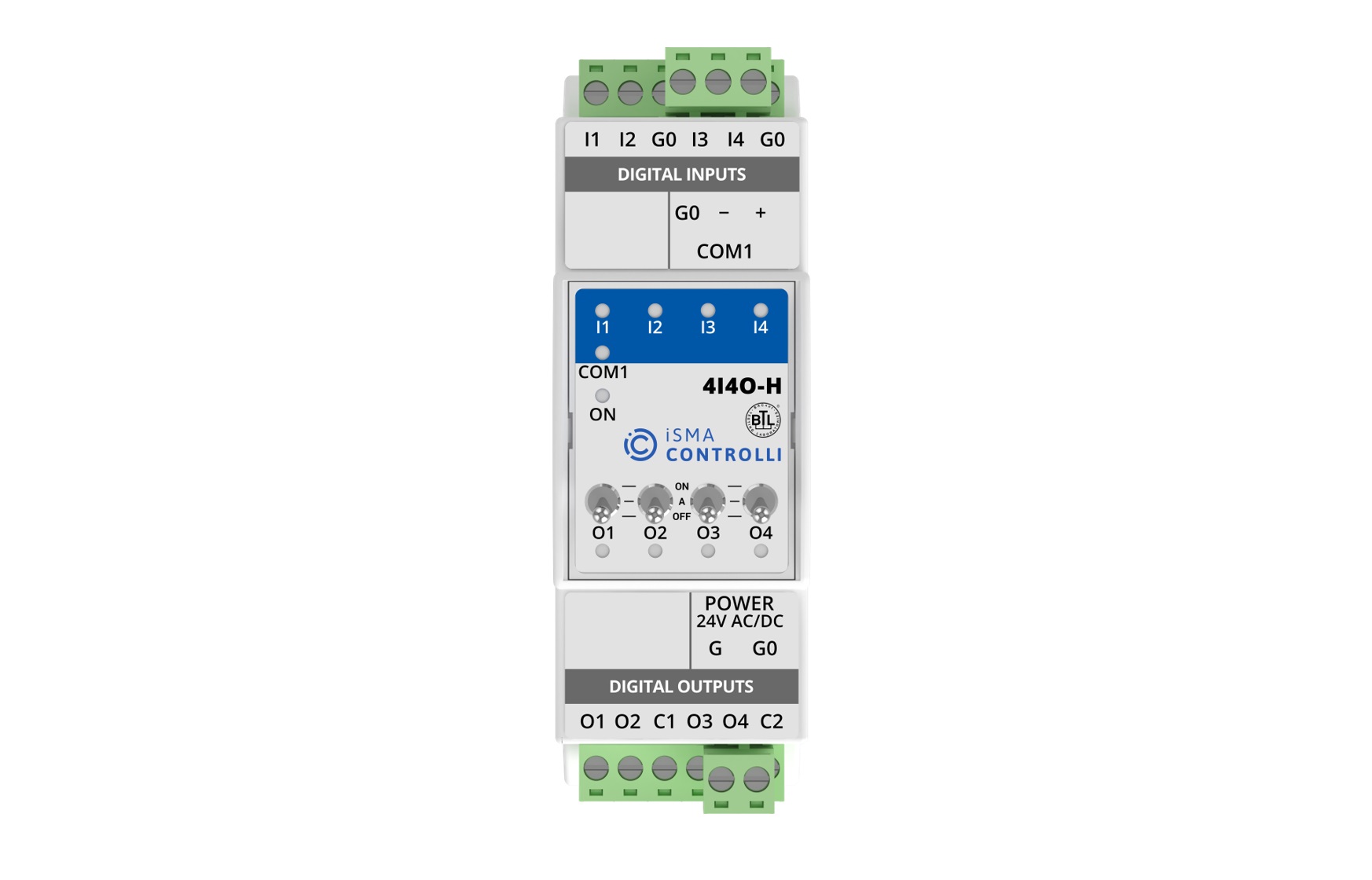

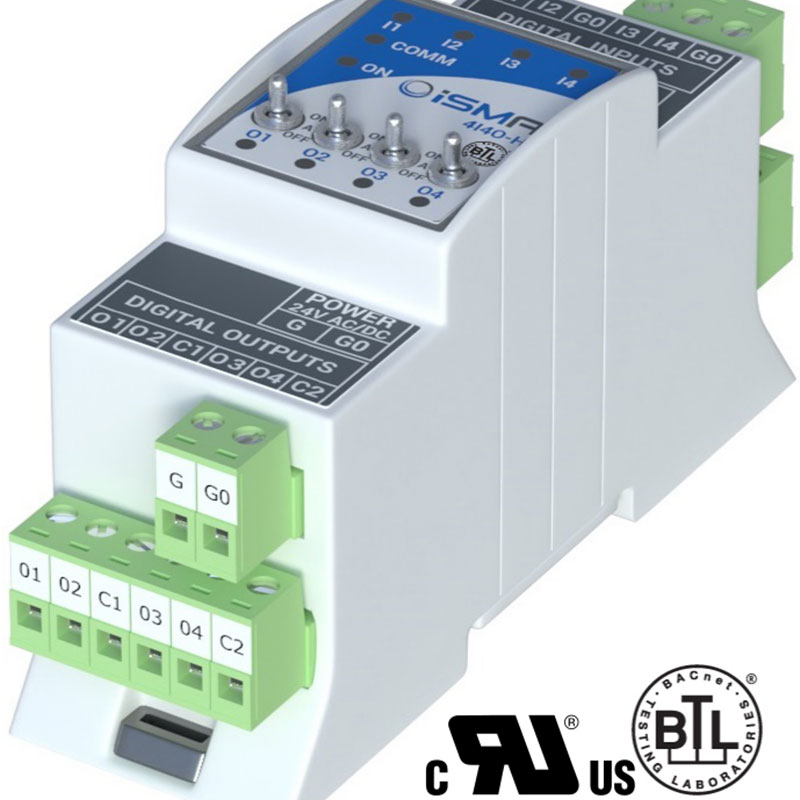

iSMA-B-4I4O-H

iSMA-B-4I4O-H is one of the easiest to set up and most versatile IO modules. Compatible with almost any BMS that works on either Bacnet or Modbus. It has 4 Digital Output modules with 4x Digital Inputs (4DI). It can be hand-operated.

This module is fully compatible with any Modbus or Bacnet system, including the following: Tridium Jace3, Jace6, Jace8000Compatible, Trend IQ3, IQ4 Bacnet IPCompatible, Siemens PX range, Cylon Bacnet controllers, Schneider Electric StruxureWare Bacnet controllers, OSS NeOSS building management controller, Priva Blue ID, Distech EC Bos, DELL EDGE GATEWAY 5000, Compatible with any Honeywell Centraline Hawk, Delta Controls Compatible IO Modules

In addition, this module has built-in On/Off Logic for lighting applications with DALI Systems.

Inputs & Outputs:
4 x Digital Inputs (4DI)

• Dry contact inputs
• Fast pulse counter up to 100Hz

4 x Digital Outputs (4DO)

• Relay output (NO) max. 3A, 250V AC/30 VDC

Platform:

• Cortex-M3

Communication:

• Interface RS-485 half-duplex
• Up to 99 devices on the bus
• Protocols: MODBUS or BACnet
• Baud rate: 2400 to 115200 bps

Power supply:

• 24V AC/DC

Housing:

• Dimension: 35x110x62 mm.
• Construction: plastic, self-extinguishing (PC/ABS)
• DIN rail mounting (DIN EN 50022 norm)
• Cooling: internal air circulation

Environments:

• Operating temperature: -10C to 50C
• Storage temperature: -40C to 85C
• Relative humidity: 5 to 95%, no condensation
• Ingress Protection Rating: IP40 for indoor installation
